Model-specific identification, technical review and procurement information.

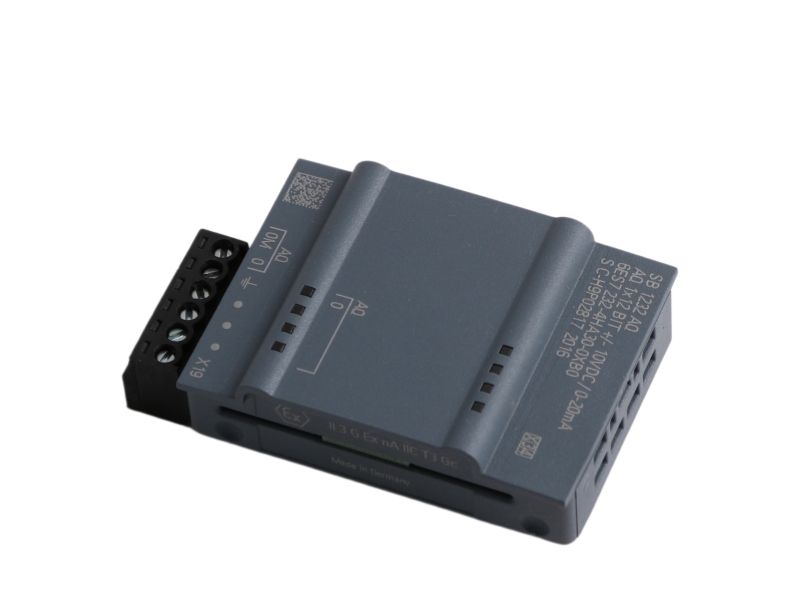

Siemens 6ES7232-4HA30-0XB0 is a SIMATIC S7-1200 SB 1232 analog output signal board designed to add one analog output to a supported CPU. Siemens specifies selectable voltage or current operation: ±10 V DC with 12-bit resolution, or 0–20 mA with 11-bit resolution. Its compact signal-board format suits control-panel upgrades, repair work and procurement projects where an installed CPU requires a matching single-channel analog output option. Before ordering, verify the complete suffix, selected signal mode, field wiring, CPU support, engineering configuration, revision information and the original device label.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7232-4HA30-0XB0 |
| Product Type | SIMATIC S7-1200 SB 1232 Analog Output Signal Board |
| Series | SB 1232 analog output modules |
| Model Configuration | 1 analog output; selectable voltage or current mode |
| Product Condition | NEW |
| Net Weight | 0.030 kg |
| Country of Origin | GERMANY |
| Compatibility | Supported SIMATIC S7-1200 CPUs with a suitable signal-board interface; confirm the exact CPU and project configuration. |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are confirmed in the written quotation. |
| Number of analog outputs | 1 |
|---|---|
| Voltage output range | ±10 V DC |
| Voltage-mode resolution | 12 bit |
| Current output range | 0–20 mA |
| Current-mode resolution | 11 bit |
| Module format | SIMATIC S7-1200 signal board |
| Net weight | 0.030 kg |
The same part number supports a voltage-output mode and a current-output mode, but the selected engineering parameters and field wiring must match the connected device. Confirm the intended range, load, terminal assignment and CPU configuration before commissioning. The complete suffix distinguishes this board from other SB 1232 variants.
Check the full 6ES7232-4HA30-0XB0 suffix, target CPU, selected voltage or current mode, terminal wiring, load requirements, hardware revision, engineering software version, installation space and the original product-label photo before ordering.
Siemens specifies one ±10 V DC output at 12-bit resolution or one 0–20 mA output at 11-bit resolution.
Stock and supply condition are checked against the required quantity. Contact sales for current confirmation.
Share the existing wiring diagram, controlled-device input range and project configuration so the voltage or current requirement can be reviewed.
Yes. Use the complete 6ES7232-4HA30-0XB0 code when comparing the original board and quotation.

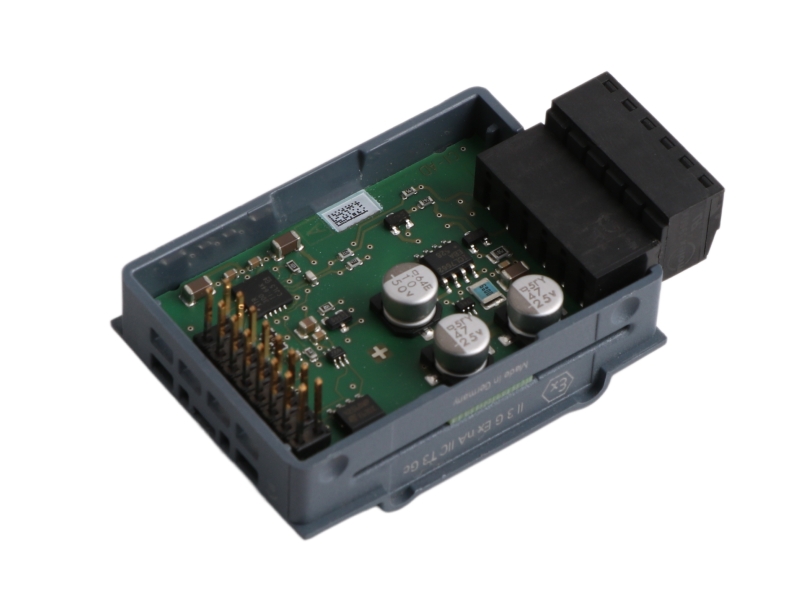

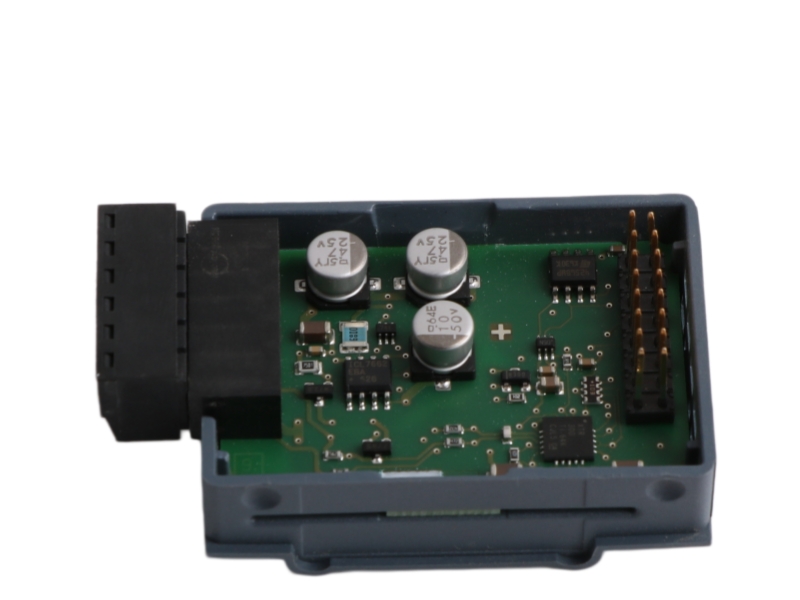

Yes. Product, internal and label photos can be requested before order confirmation.
The supply is offered with a 1 year warranty; the written quotation defines the applicable terms.
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
For Siemens 6ES7232-4HA30-0XB0, Stockoems supports identification and supply review without making unconfirmed stock or delivery promises.
Availability, dispatch timing, packaging, freight method and warranty coverage are confirmed in the written quotation for the requested quantity and destination.
Each entry identifies an independent product and is not presented as a direct replacement. Confirm the manufacturer, complete part number, revision and compatibility before ordering.
Send the exact part number, quantity, destination and label photos for an availability and compatibility review.
