A controller profile built around verified power, onboard I/O, memory, and engineering requirements.

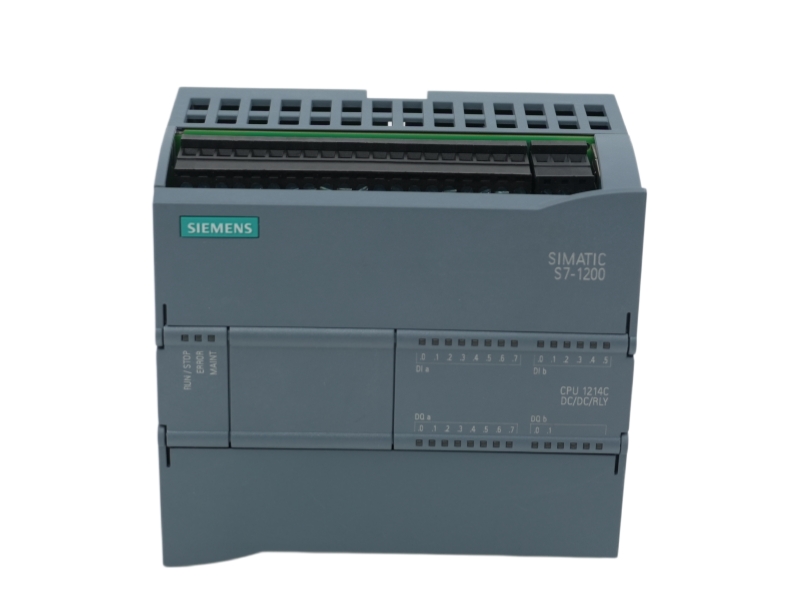

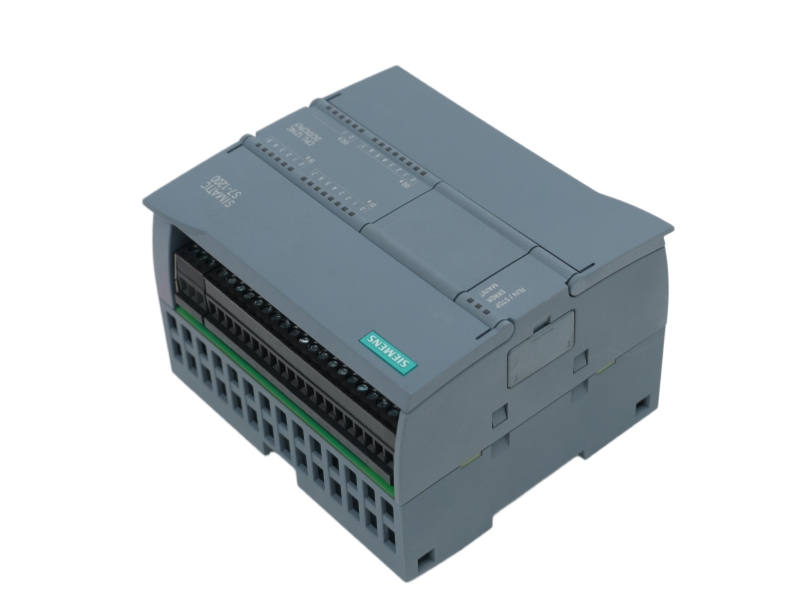

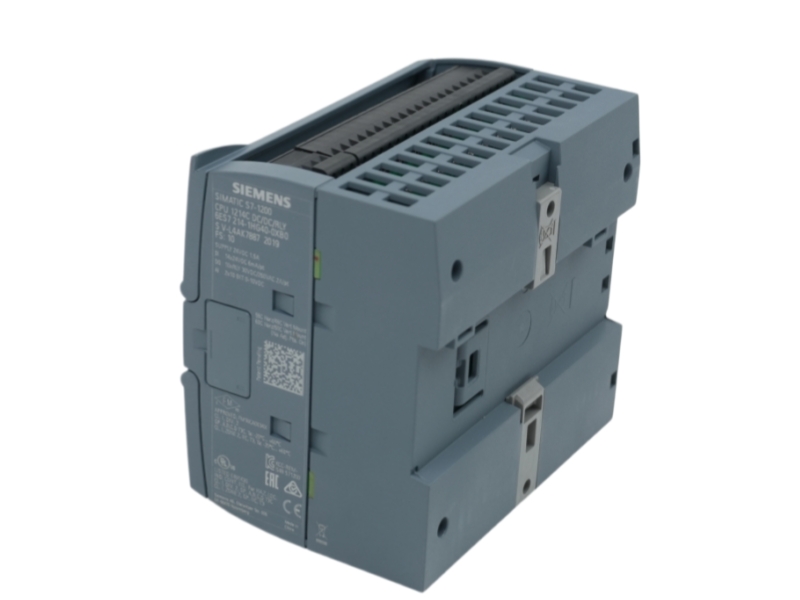

Siemens 6ES7214-1HG40-0XB0 is a SIMATIC S7-1200 CPU 1214C compact CPU in DC/DC/relay configuration. Its onboard resources include 14 DI, 24 V DC, 10 relay DO, 2 A, and 2 AI, 0–10 V DC, with 150 KB program/data memory. The unit is intended for a higher-capacity compact S7-1200 controller combining a 24 V DC supply with relay outputs and an expanded onboard I/O count for broader machine-control duties. Engineers and buyers should verify the complete article number, power architecture, field-load characteristics, I/O count, programming environment, firmware requirements, terminal arrangement, and existing panel documentation before ordering. For replacement projects, compare the installed device label and current STEP 7 hardware configuration so the electrical and software scope can be reviewed together.
| Field | Confirmed configuration |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7214-1HG40-0XB0 |
| Product type | CPU 1214C compact CPU |
| Series | SIMATIC S7-1200 |
| Configuration | DC/DC/relay |
| CPU supply | 20.4–28.8 V DC |
| Digital inputs | 14 DI, 24 V DC |
| Digital outputs | 10 relay DO, 2 A |
| Analog inputs | 2 AI, 0–10 V DC |
| Program/data memory | 150 KB |
| Firmware designation | V4.7; confirm the delivered revision |
| Engineering software | STEP 7 V20 or higher |
| Product condition | NEW |
| Country of origin | GERMANY |
| Net weight | 0.384 kg |
| Availability / warranty | With 1 year warranty; contact us to confirm availability |
| Compatibility | Contact us to confirm the hardware and software configuration |
| Shipping | Worldwide shipping options are quoted for the destination and order terms |
The CPU 1214C integrates the control processor and onboard signal channels in a compact S7-1200 housing. This DC/DC/relay version uses ten relay outputs rated 2 A. Selection therefore depends on the incoming power design, connected field loads, switching behavior, protection concept, and the required number of local signals. The two onboard 0–10 V DC analog inputs can support suitable analog measurements when applied within the documented electrical limits. Expansion planning should account for the complete CPU, signal-module, communication-module, and power-budget arrangement.
Confirm 6ES7214-1HG40-0XB0, the DC/DC/relay electrical configuration, onboard I/O count, firmware version, STEP 7 project requirements, connected expansion hardware, terminal assignments, and original device-label details. Please contact us to confirm the exact revision, condition and availability before ordering.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Email SalesWhatsApp SalesSupport for Siemens 6ES7214-1HG40-0XB0 model verification, electrical review, documentation, packing, shipment, and after-sales handling.
Verify 6ES7214-1HG40-0XB0, CPU 1214C, DC/DC/relay, quantity, and label photos.
Confirm NEW condition, quotation scope, and pre-shipment photo requirements.
Review 20.4–28.8 V DC, onboard I/O, firmware, STEP 7 project, and connected modules.
Provide terminal protection, antistatic handling where applicable, and export packaging.
Confirm carrier, freight cost, shipment tracking, and customs documentation.
Provide one-year written warranty terms, return authorization guidance, and after-sales response.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Email SalesWhatsApp SalesEach entry is an independent product listing and is not presented as a direct replacement. Confirm the manufacturer, complete part number, revision and compatibility before ordering.
