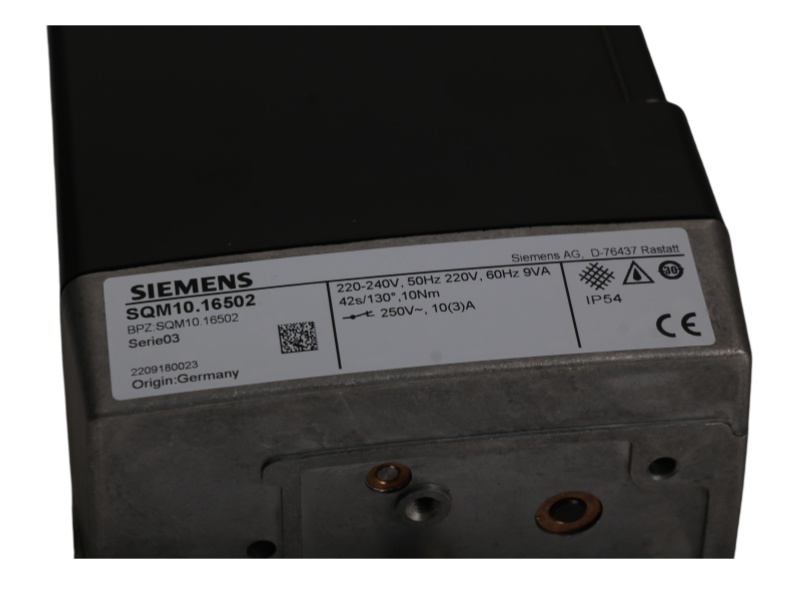

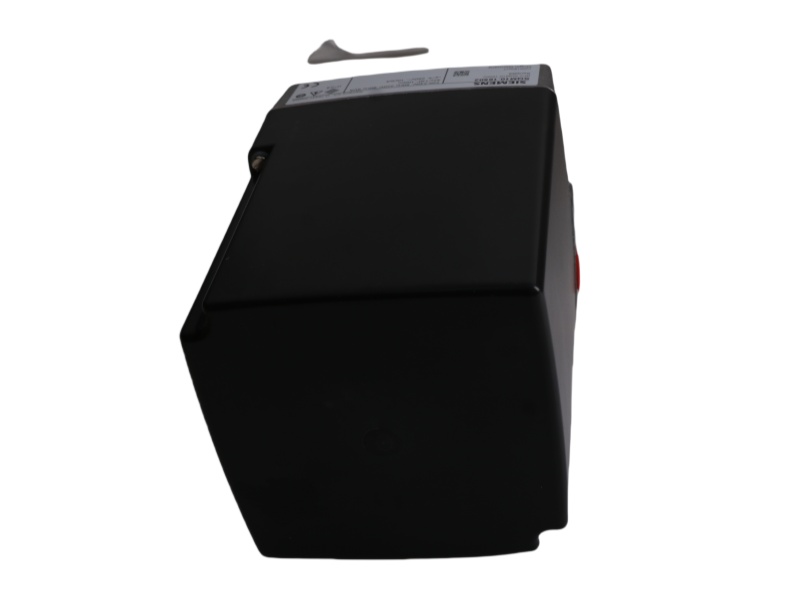

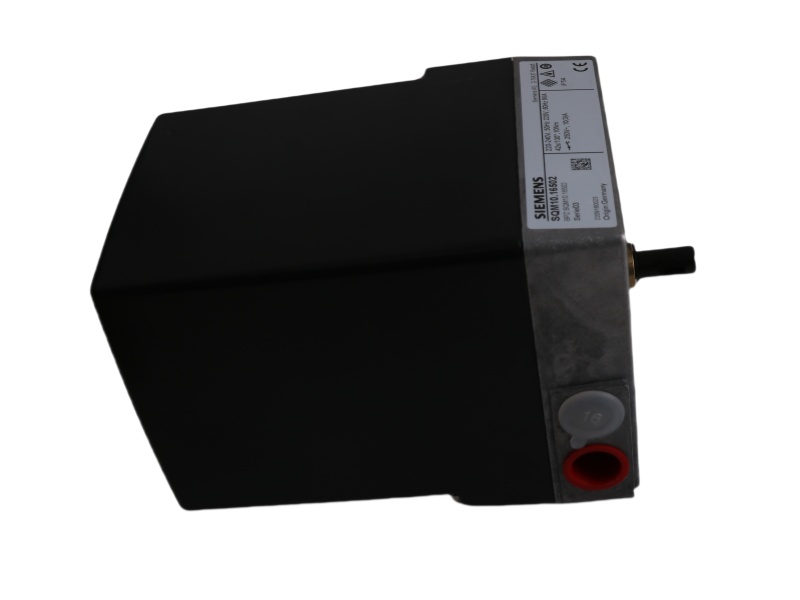

Siemens SQM10.16502 Servo Motor Damper Actuators

Inquiry now

SQM10.16502 Product datasheet

Model number:	SQM10.16502	Module Type：	Servo Motor Damper Actuators
Manufacture:	Siemens	Condition：	Brand New
Range of Product:	Siemens	Lead time：	In Stock
Weight:	1 kg	HS CODE：	8537101190
Dimension:	13.3x8.6x12.8cm	MOQ:	1
Product Origin:	GERMANY	System：	PLC
Discontinued on:	active	Communication Service:	Ethernet router

SQM10.16502 Functional Description

The Siemens SQM10.16502 Servo Motor Damper Actuators is a robust electric actuator engineered for precise control in burner and air damper systems. Operating on an AC230V power supply, it delivers a nominal torque of 10 Nm and a starting torque of 15 Nm, making it suitable for demanding industrial applications. Its design ensures reliable performance in environments requiring accurate positioning and control.

Equipped with five auxiliary switches, the Siemens SQM10.16502 Servo motor allows for enhanced control and feedback within automated systems. It features a 90° rotation achieved in 29 seconds and a 130° rotation in 42 seconds, providing flexibility for various operational requirements. The actuator's counterclockwise rotation and 10mm shaft diameter are tailored for compatibility with a range of mechanical setups.

The SQM10.16502 Siemens Actuator is designed for integration with controllers or switching devices equipped with changeover contacts, ensuring seamless communication within control systems. Its reversible operation and durable construction contribute to a long service life, even under continuous operation.

Widely utilized in HVAC and combustion control applications, the SQM10.16502 Siemens PDF stands out for its precision and reliability. Its consistent performance and adaptability make it a preferred choice for professionals seeking dependable actuator solutions in complex systems.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

Siemens	S55376-C116	Allen Bradley	1794-IB16XT	Allen Bradley	1791DS-IB12
Siemens	6ES7193-4CD30-0AA0	Allen Bradley	1794-IB16D	Allen Bradley	1791D-0B8P
Siemens	6ES7193-4CA50-0AA0	Allen Bradley	1794-IB16	Allen Bradley	1791-32A0
Allen Bradley	SQM10.16502	Allen Bradley	1794-IA8	Allen Bradley	1791-24B8
Allen Bradley	80190-380-01-R	Allen Bradley	1794-AENTR	Allen Bradley	1791-16BC
Allen Bradley	80190-380-02-R	Allen Bradley	1793-OB16P	Allen Bradley	1791-16B0
Allen Bradley	80190-320-03-R	Allen Bradley	1791-OB32	Allen Bradley	1790D-TN4V0
Allen Bradley	80190-100-01-R	Allen Bradley	1791-OB16	Allen Bradley	1788HP-EN2PA
Allen Bradley	80190-300-01-R	Allen Bradley	1791-DSIB8XOB8	Allen Bradley	1788-ENBT
Allen Bradley	1794-IB8	Allen Bradley	1791-DSIB12	Allen Bradley	1788-CNET

Application and design features

The reversible damper motors type SQM... are suitable for 2- wire control with controllers or switching units with changeover contact. The gear housing is of die-cast aluminium and painted silvergrey; the cover is in dark-grey, impact proof plastic. The base is provided with four threaded entries for Pgll cable glands. The control section comprises 2 motor travel limit switches, 5 auxiliary switches and - on request - 1 potentiometer (as feedback potentiometer for P-control, as position indicator with slave control systems, or for remote position indication). The operation of the limit and auxiliary switches is made by manually adjustable cams. Setting scales provided between the cam discs simplify the adjustment. An additional scale at the end of the cam stack serves as position indicator. In addition, the damper motor type SQM21 is provided with a position indicator visible from the outside (see KDimensions,,). The reduction gearing is provided with self-lubricating sinterbronze bearings and therefore requires no periodic maintenance. When mounting the motor and damper actuating rod, the gearing can be decoupled by means of a lever, so that the main drive spindle is easy to adjust in either direction of rotation.
