Product information

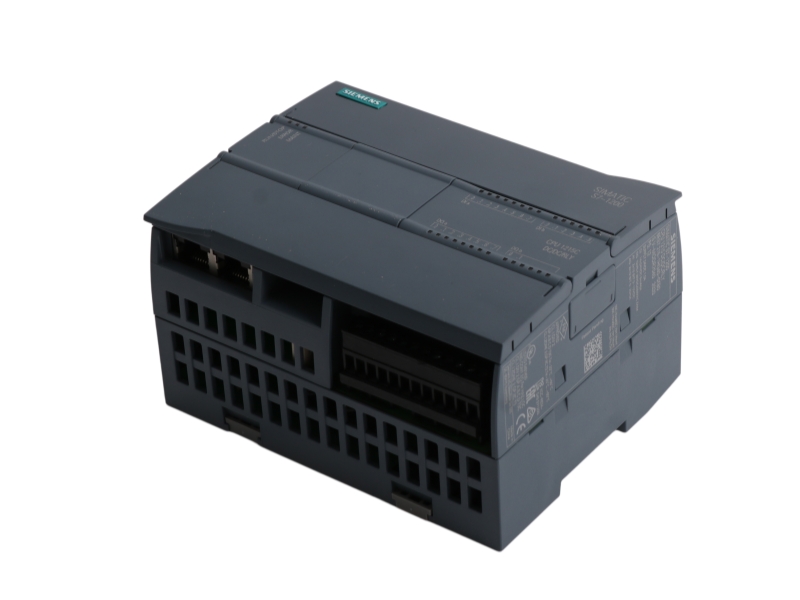

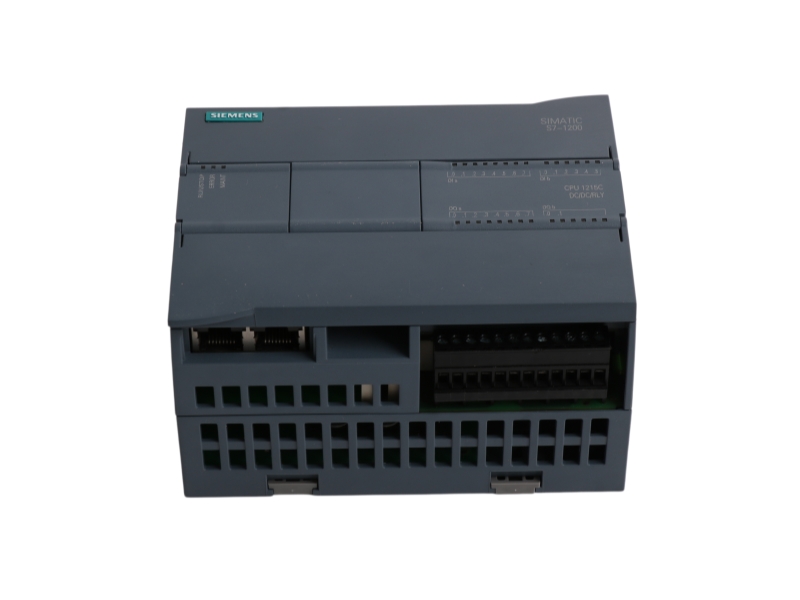

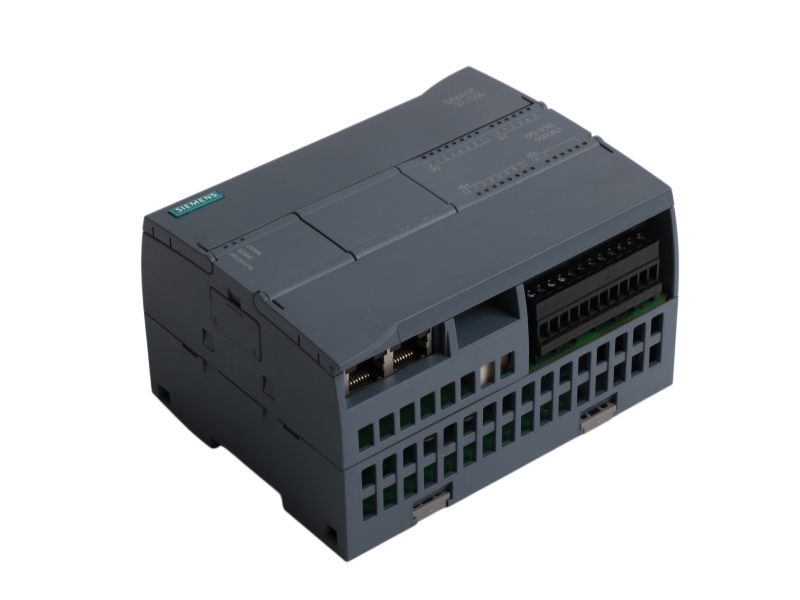

The SIMATIC S7-1200 CPU 1215C is a compact DC/DC/relay controller with 14 DI, 10 DO, 2 AI, 2 AO, dual PROFINET ports, and 200 KB of work memory.
Specifications
CPU Type: SIMATIC S7-1200 CPU 1215C, DC/DC/relay
Onboard I/O: 14 DI (24 V DC), 10 DO (relay, 2 A), 2 AI (0–10 V), 2 AO (0–20 mA)
Memory: 200 KB work memory, 4 MB load memory (expandable via SIMATIC Memory Card)
Communication: 2 PROFINET ports (integrated switch), supports OPC UA, MODBUS, and open IE communication
Supply Voltage: 24 V DC (20.4–28.8 V)
Dimensions (W × H × D): 130 mm × 100 mm × 75 mm
Weight: approx. 585 g
Competitive Advantage
-
Integrated Functionality: Combines 14 DI, 10 relay DO, 2 AI, and 2 AO on a compact CPU, reducing the need for additional modules.
-
Advanced Connectivity: Features dual PROFINET ports with an integrated switch, supporting MRP for network redundancy and efficient line topologies.
-
High-Performance Memory: Offers substantial 200 KB work memory and 4 MB load memory, with robust retentive data storage for complex applications.
-
Versatile Communication: Supports PROFINET, OPC UA Server, and open IE communication, ensuring seamless integration into modern industrial networks.
