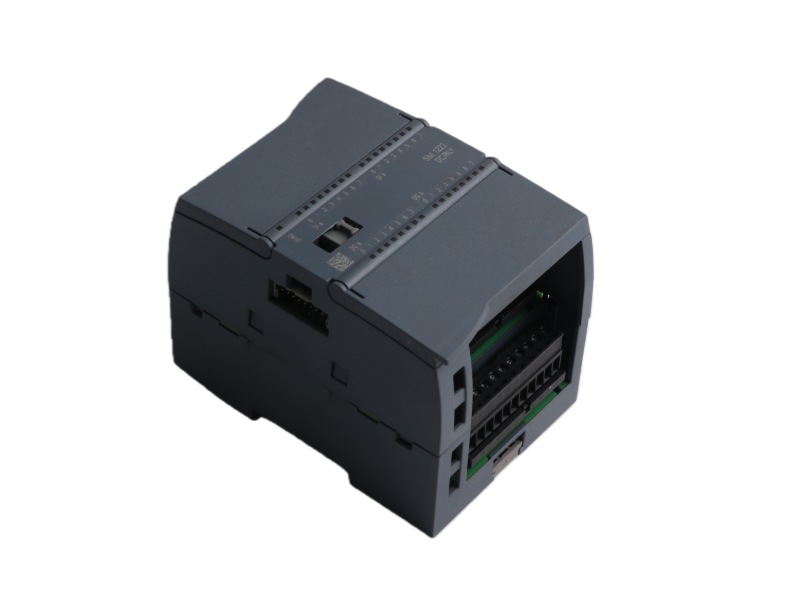

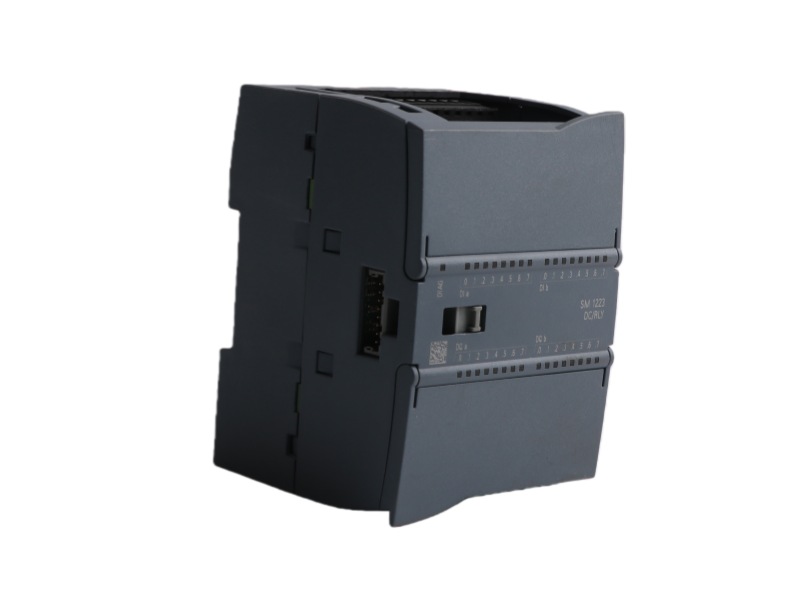

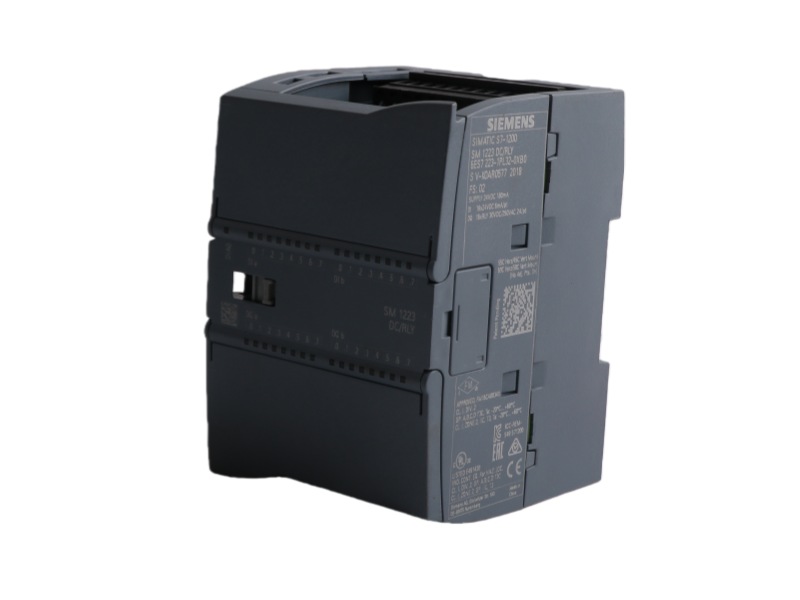

The 6ES7 223-1PL32-0XB0 Siemens SM 1223 Digital I/O Module represents a versatile digital combination module within the SIMATIC S7-1200 programmable logic controller system, designed to expand I/O capabilities in compact automation applications. This sophisticated module provides sixteen digital inputs and sixteen digital outputs in a single compact unit, facilitating comprehensive interface with sensors, switches, and actuators in industrial environments. The input channels of the Digital I/O Module Siemens 6ES7 223-1PL32-0XB0 operate at 24V DC with sink/source capability, while the output channels utilize relay contacts capable of switching up to 2A, offering flexibility for controlling various load types including solenoids, contactors, and indicators.

Engineered with operational robustness, the I/O Module 6ES7223-1PL32-0XB0 Siemens features a wide supply voltage range from 20.4V to 28.8V DC, ensuring stable performance despite potential power fluctuations common in industrial settings. The module's digital inputs demonstrate low current consumption with 1mA at signal "0" state and 2.5-4mA at signal "1" state, while incorporating configurable input filters with seven selectable delay times from 0.2ms to 12.8ms to enhance noise immunity. The thermal design of the module supports full channel utilization across all mounting positions up to 50°C ambient temperature, demonstrating its adaptability to various cabinet configurations.

The electrical characteristics of the Siemens SIMATIC S7-1200 6ES7223-1PL32-0XB0 include a typical power dissipation of 10W and a backplane bus current consumption of 180mA at 5V DC, optimizing energy efficiency within the S7-1200 system architecture. The module's relay outputs provide electrical isolation between the control circuit and load circuits, enhancing system safety and protecting the controller from potential voltage transients. The module maintains compliance with IEC 61131 Type 1 input standards, ensuring interoperability with a wide range of industrial sensors and switching devices commonly deployed in automation systems.

Through its balanced combination of input and output channels, flexible configuration options, and robust construction, the 6ES7223-1PL32-0XB0 Siemens Digital I/O Module establishes itself as an ideal I/O expansion solution for small to medium-scale automation projects. The module's design emphasizes both installation convenience and operational reliability, supporting rapid system integration while minimizing maintenance requirements. The proven performance of the module across diverse industrial applications underscores its effectiveness in providing dependable digital signal processing within the SIMATIC S7-1200 ecosystem, upholding Siemens' reputation for engineering excellence in industrial automation components.
