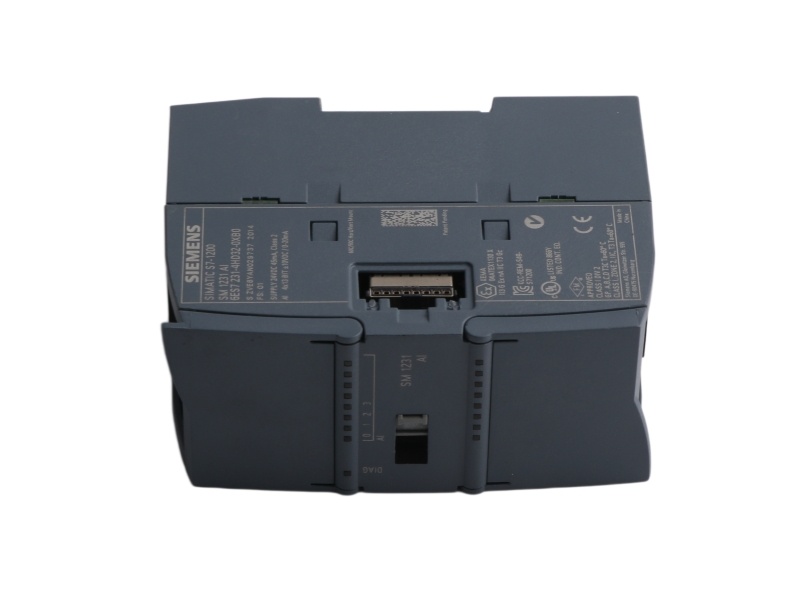

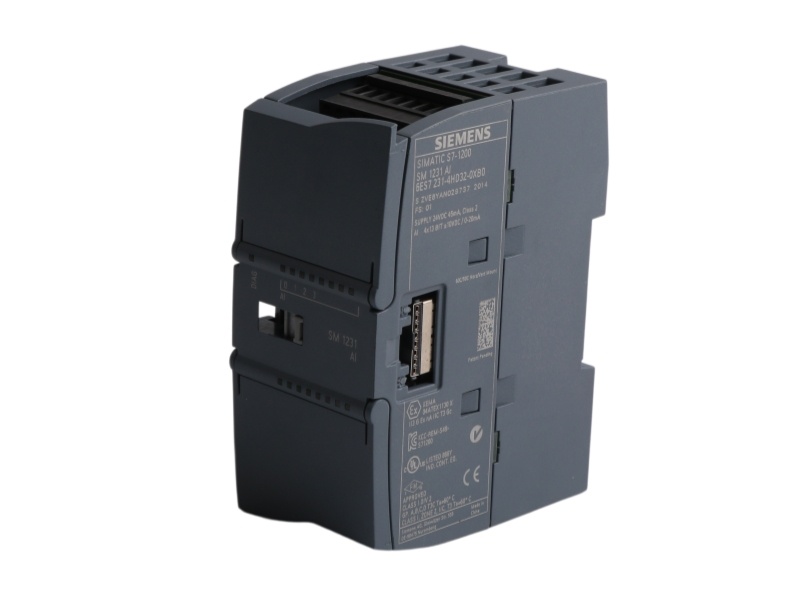

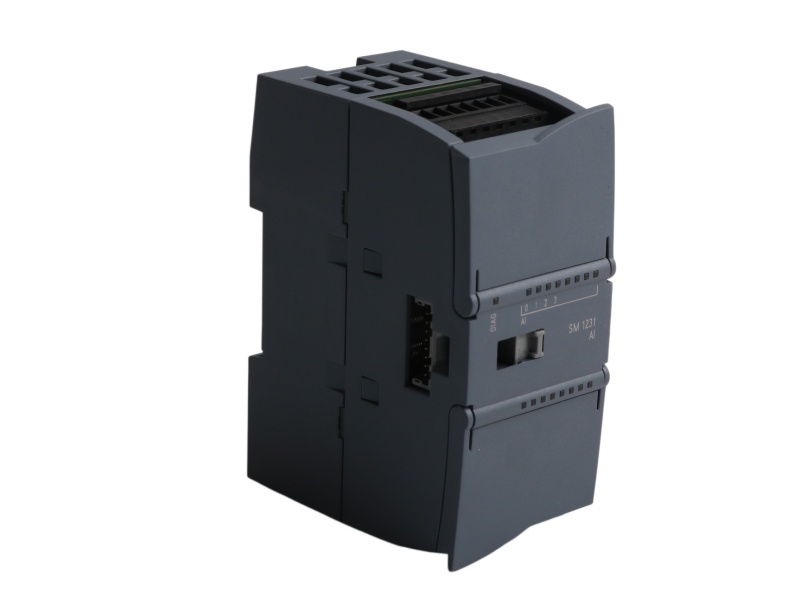

Siemens 6ES7231-4HD32-0XB0 is a SIMATIC S7-1200 SM 1231 analog input module with four differential channels. It accepts configured voltage ranges of plus or minus 10 V, plus or minus 5 V and plus or minus 2.5 V, together with 0 to 20 mA or 4 to 20 mA current signals. The module supports panel expansion, maintenance replacement and instrumentation integration where this exact four-channel configuration is required. Before ordering, verify the complete suffix, input signal type, wiring arrangement, front connector, S7-1200 CPU configuration, engineering project and supplied hardware revision.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7231-4HD32-0XB0 |
| Product Type | SM 1231 4-Channel Analog Input Module |
| Series | SIMATIC S7-1200 / SM 1231 |
| Model Configuration | Four differential analog inputs for configurable voltage or current ranges |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm. |
| Firmware/Software Version | Contact us to confirm. |
| Country of Origin | GERMANY |
| Compatibility | Confirm the complete article number, configuration and supplied revision before ordering. |
| Warranty | With 1 year warranty |
| Availability | Contact us to confirm. |
| Shipping | Worldwide shipping options are available; confirm destination and written terms. |
Published technical values can change. Compare current Siemens documentation and the supplied product nameplate before installation.
Document each channel signal type and engineering range.
Use the required front connector and project-approved grounding practice.
Set channel ranges, diagnostics and conversion behavior in the S7-1200 project.
Check scaling and signal quality before process use.
Confirm the complete suffix, S7-1200 CPU configuration, voltage or current range, differential wiring, front connector, 24 V DC supply, engineering software and project settings, hardware revision, dimensions and original label photographs.
Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
It supports the specified bipolar voltage ranges and 0 to 20 mA or 4 to 20 mA current inputs.
The SM 1231 configuration provides four differential analog input channels.
The cited configuration is for voltage and current inputs; select a module designed for the required sensor type.
Yes. Siemens lists a required front connector; confirm the connector and wiring plan before installation.
Compare the exact article number, CPU configuration, channel ranges, project settings and hardware revision.
Availability and condition must be confirmed for the required quantity and destination.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
