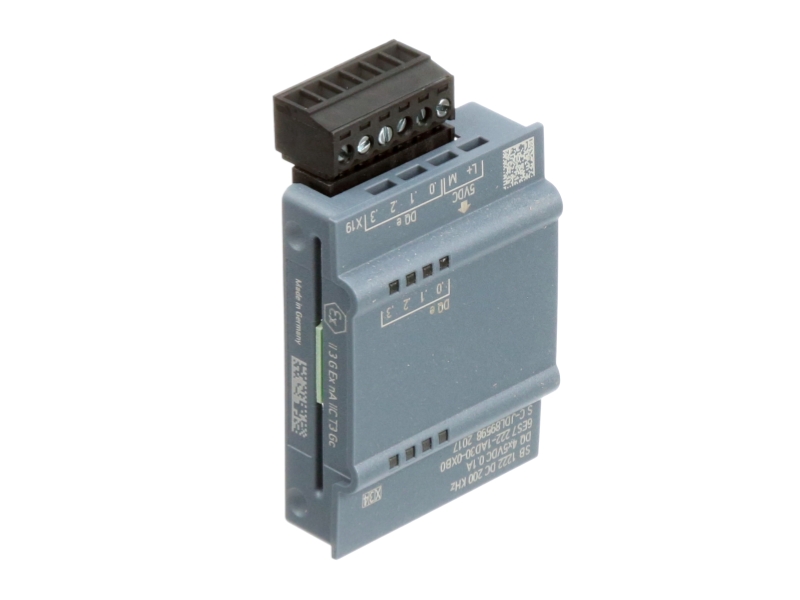

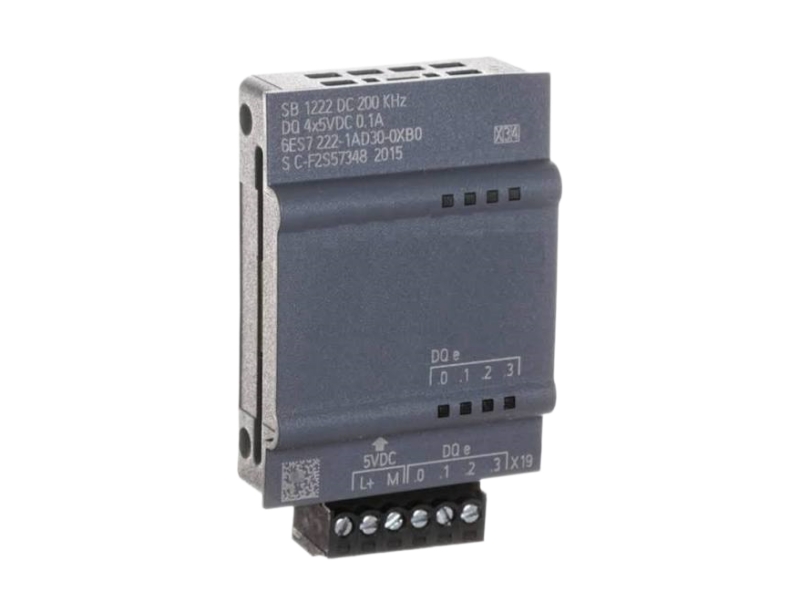

Siemens 6ES7222-1AD30-0XB0 is a SIMATIC S7-1200 SB 1222 digital output signal board that adds four 5 V DC high-speed outputs to a supported CPU. The outputs are solid-state MOSFET channels capable of current sinking or sourcing, with a rated output current of 0.1 A and operation up to 200 kHz. This compact board is intended for machine control, pulse-output and replacement work where the exact 5 V configuration is required. Before ordering, compare the full suffix, CPU signal-board support, wiring, load, firmware requirements and original product label.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7222-1AD30-0XB0 |
| Product Type | SIMATIC S7-1200 SB 1222 Digital Output Signal Board |
| Series | SB 1222 digital output modules |
| Model Configuration | 4 DQ, 5 V DC, 200 kHz |
| Product Condition | NEW |
| Dimensions | 38 × 62 × 21 mm |
| Net Weight | 0.029 kg |
| Country of Origin | GERMANY |
| Compatibility | Supported SIMATIC S7-1200 CPUs with a suitable signal-board interface; confirm the exact CPU and engineering configuration. |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are confirmed in the written quotation. |
| Digital outputs | 4 MOSFET solid-state channels |
|---|---|
| Output function | Current-sinking or current-sourcing |
| Rated output voltage | 5 V DC |
| Rated output current | 0.1 A per signal 1 |
| Maximum operating frequency | 200 kHz |
| Typical backplane-bus current | 35 mA at 5 V DC |
| Typical power loss | 0.5 W |
| Short-circuit protection | No |
| Maximum shielded cable length | 50 m |
The 5 V output rating and 200 kHz capability make this signal board distinct from 24 V SB 1222 variants. Confirm the connected load, current demand, output topology and pulse-frequency requirement before installation. Because Siemens specifies no short-circuit protection for this model, protective circuit design and correct field wiring are important parts of the application review.
Verify the complete 6ES7222-1AD30-0XB0 suffix, CPU signal-board support, 5 V supply and load requirements, sinking or sourcing wiring, output frequency, hardware revision, firmware or engineering version, installation space and the original nameplate photo.
Availability is checked for the requested quantity and destination. Send the full part number for a written quotation.
6ES7222-1AD30-0XB0 is the 5 V DC SB 1222 version. It should not be confused with a 24 V output variant.
Provide the CPU part number, hardware revision, firmware level, project configuration and product-label photos for review.
The Siemens technical data states that short-circuit protection is not provided. Confirm the external circuit design before use.
