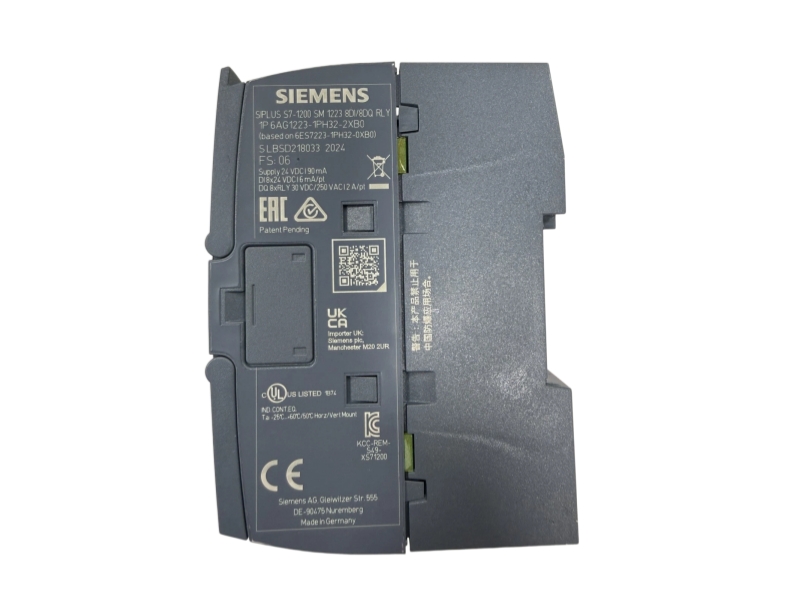

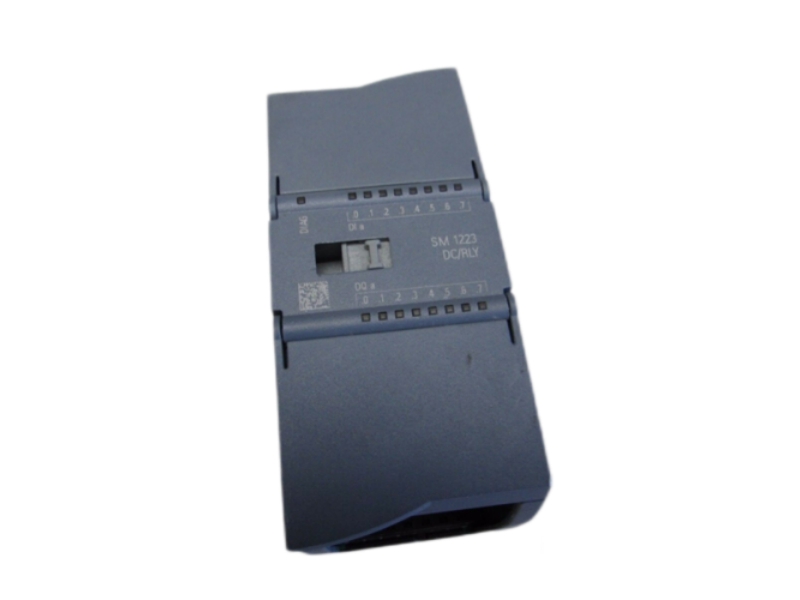

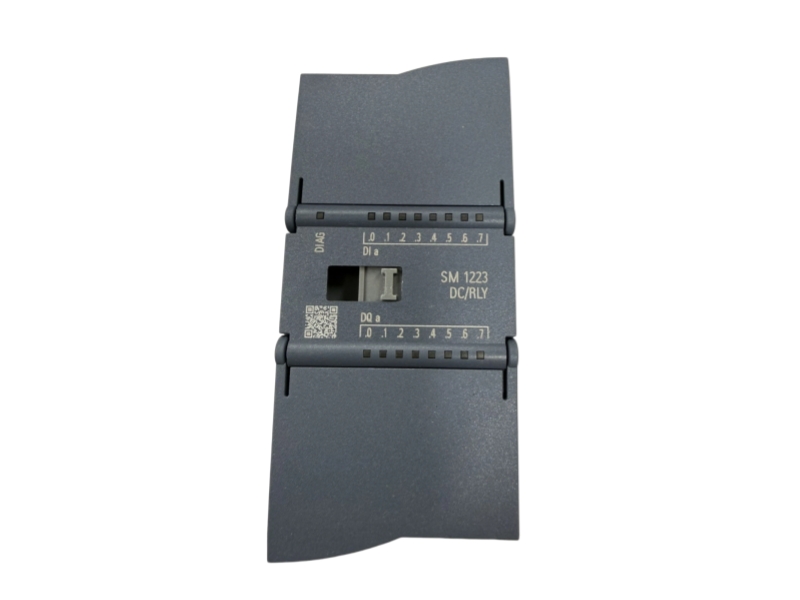

Siemens 6ES7223-1PH32-0XB0 SM 1223 8 DI 24 V DC / 8 DO 2 A Relay Digital I/O Module

Siemens 6ES7223-1PH32-0XB0 SIMATIC S7-1200 Mixed Relay I/O Module

Inquiry now

RELAY SPLIT BRIDGE

6ES7223-1PH32-0XB0

SM 1223 8 DI 24 V DC / 8 DO 2 A Relay Digital I/O Module

Product Summary

Siemens 6ES7223-1PH32-0XB0 is a SIMATIC S7-1200 SM 1223 mixed digital I/O module combining eight 24 V DC sink/source inputs with eight relay outputs rated 2 A. It supports compact machine-control expansion where field-state acquisition and relay switching must share one module position. The unit is relevant to maintenance replacement, panel refurbishment and planned I/O expansion. Before ordering, verify the complete suffix, CPU and STEP 7 project, input wiring, relay contact voltage, load category, inrush current, connector, installation space and original product label.

CHANNEL SIDE A

8 DI / 24 V DC

I/O

CHANNEL SIDE B

8 Relay DO / 2 A

Key Product Information

Manufacturer	Siemens
Complete Part Number	6ES7223-1PH32-0XB0
Product Type	SM 1223 8 DI 24 V DC / 8 DO 2 A Relay Digital I/O Module
Series	SIMATIC S7-1200, SM 1223
Model Configuration	8 digital inputs, 24 V DC sink/source; 8 relay digital outputs, 2 A
Product Condition	NEW
Hardware Revision	Contact us to confirm.
Firmware/Software Version	Contact us to confirm.
Country of Origin	GERMANY
Compatibility	SIMATIC S7-1200 system; confirm CPU, STEP 7 project, connector and station arrangement.
Warranty	With 1 year warranty
Availability	Contact us to confirm.
Shipping	Worldwide shipping options are confirmed in the written quotation.

Technical Data Summary

Permissible supply range	20.4-28.8 V DC
Backplane bus current	145 mA maximum at 5 V DC
Typical power loss	5.5 W
Digital inputs	8, arranged in groups of 2
Input characteristic	IEC 61131 Type 1
Input signal 0	5 V DC at 1 mA
Input signal 1	15 V DC at 2.5 mA
Input delay selection	0.2-12.8 ms, parameterizable
Digital outputs	8 relay outputs
Rated relay output current	2 A
Dimensions	45 x 100 x 75 mm
Approximate weight	230 g

Signal Configuration Route

INPUT

Acquire eight verified 24 V DC field states.

ISOLATE

Review relay contact separation and load category.

SWITCH

Command compatible loads within the 2 A rating.

Applications

Mixed input and relay-output expansion in compatible S7-1200 stations.
Maintenance replacement of the same SM 1223 relay configuration.
Switching verified AC or DC loads after contact-rating review.
Control-panel refurbishment requiring compact bidirectional I/O.

Procurement Focus

Confirm relay load voltage, load category, inrush current, switching frequency and external protection.

Compatibility and Revision Notice

Confirm the complete part number and suffix, CPU and station length, voltage and interface, hardware revision, firmware or software version, connector, installation dimensions, field device type and original equipment label photographs. Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.

Model-Specific FAQ

Is 6ES7223-1PH32-0XB0 currently available?

Availability is checked for the requested quantity and NEW condition. Send the complete number for written confirmation.

What configuration must be matched?

Match the full suffix, channel count, signal type, electrical range, connector, CPU and STEP 7 hardware configuration.

Why is channel configuration important?

A visually similar SM module may support different ranges, resolution, wiring or output technology. Compare the project and label before replacement.

Can product and label photographs be supplied?

Photographs can be requested during quotation review to compare labeling and physical configuration.

Can 6ES7223-1PH32-0XB0 be shipped internationally?

Worldwide shipping options are reviewed after the destination, quantity and packaging requirements are provided.

What warranty applies?

The requested supply condition includes 1 year warranty subject to written quotation and return authorization terms.

Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.

Email: sales6@apterpower.com | WhatsApp: +86 18159889985

Email Sales WhatsApp Sales

Verification, Logistics and After-Sales Route

Product-specific support for 6ES7223-1PH32-0XB0 without unconfirmed inventory or delivery promises.

1. Model and suffix verification

2. Condition confirmation

3. Technical compatibility review

4. Product and label photo confirmation

5. Protective packaging

6. Worldwide shipping review

7. Shipment tracking

8. Customs documentation

9. Written warranty terms

10. Return authorization process

11. After-sales response

Availability and delivery timing are confirmed only in the written quotation. Email: sales6@apterpower.com | WhatsApp: +86 18159889985

Email Sales WhatsApp Sales
