Model-specific identification, technical review and procurement information.

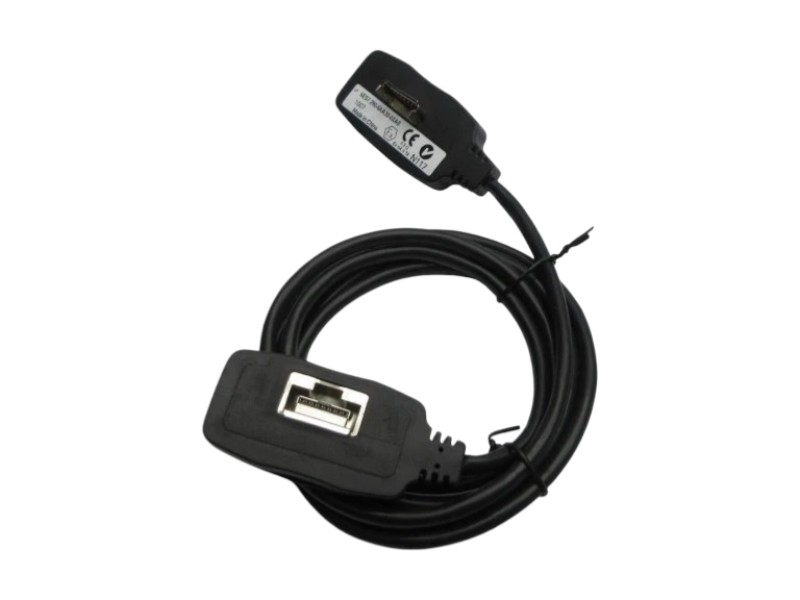

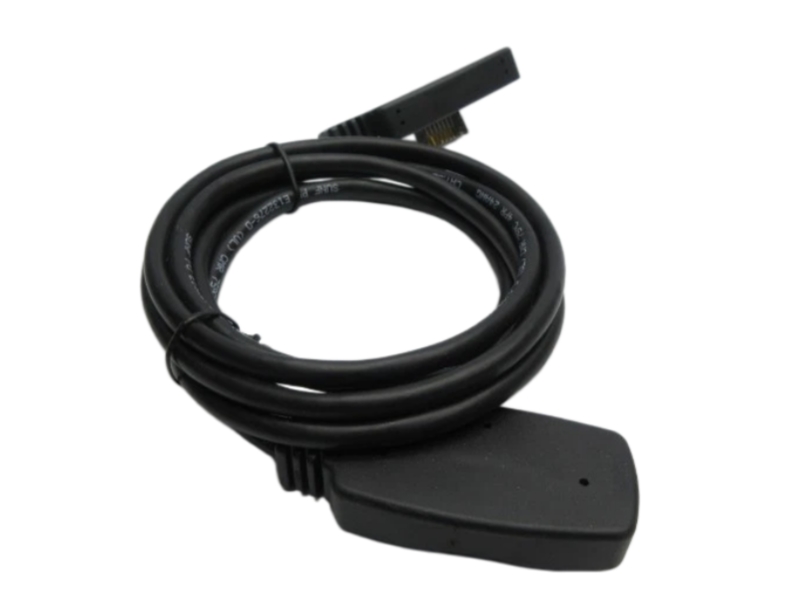

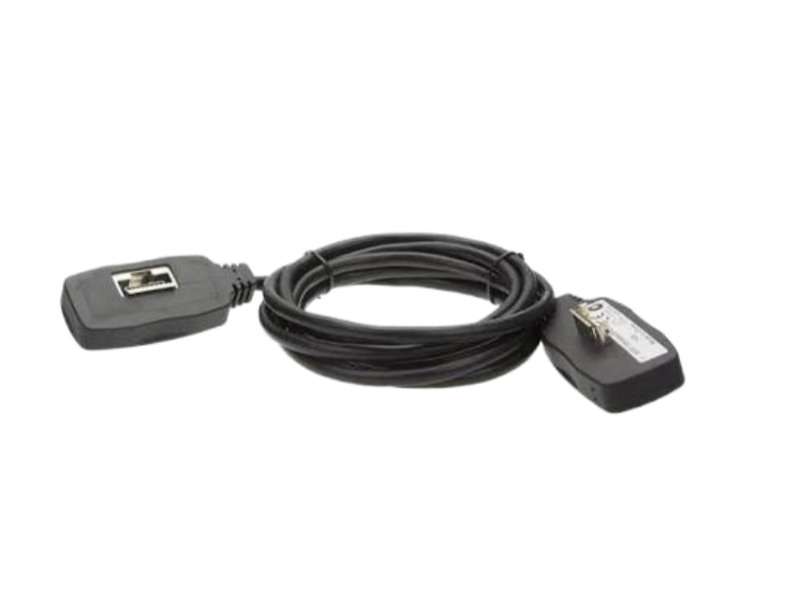

Siemens 6ES7290-6AA30-0XA0 is a 2.0 m SIMATIC S7-1200 extension cable intended for a two-tier arrangement of SM 12XX signal modules. It supports cabinet layouts where compatible modules cannot be placed in one continuous row, while preserving the required system connection between tiers. This accessory is relevant to panel construction, layout revisions, maintenance and replacement procurement. Before ordering, confirm the exact 6ES7290-6AA30-0XA0 suffix, two-tier system architecture, SM 12XX module arrangement, connector orientation, routing space, bend and strain conditions, and clear photos of the existing cable and equipment labels.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7290-6AA30-0XA0 |
| Product Type | SIMATIC S7-1200 SM 12XX 2.0 m Extension Cable |
| Series | SIMATIC S7-1200 accessories |
| Model Configuration | Extension cable for a two-tier SM 12XX setup; 2.0 m length |
| Product Condition | NEW |
| Net Weight | 0.240 kg |
| Country of Origin | GERMANY |
| Compatibility | Two-tier installation of compatible SIMATIC S7-1200 SM 12XX modules; confirm the complete system layout. |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are confirmed in the written quotation. |
| Accessory function | Extension between tiers in an SM 12XX arrangement |
|---|---|
| Cable length | 2.0 m |
| Target system | SIMATIC S7-1200 |
| Target module family | SM 12XX signal modules |
| Installation arrangement | Two-tier setup |
| Net weight | 0.240 kg |
Plan the second-tier position before routing the cable. Maintain suitable space for both connector bodies, avoid sharp bends or tension, protect the cable from moving hardware and verify that the final route does not interfere with ventilation or service access. Installation should be completed with the equipment de-energized and according to the applicable Siemens system documentation.
Confirm the complete 6ES7290-6AA30-0XA0 suffix, overall system layout, 2.0 m length, SM 12XX module arrangement, connector type and orientation, routing dimensions, hardware revision and photos of both existing connectors and product labels.
It is the Siemens 2.0 m extension cable for a two-tier arrangement of SIMATIC S7-1200 SM 12XX modules.
No. Confirm the complete part number, cable length, connector layout and target module arrangement before ordering.
Send a cabinet photo, module list, tier spacing and clear images of both existing cable connectors.
This page specifies NEW condition. Availability and current product photos are confirmed during quotation.
Yes. The destination, packaging method, customs documentation and shipping option are confirmed in writing.
The product is offered with a 1 year warranty under the written quotation terms.
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
For Siemens 6ES7290-6AA30-0XA0, Stockoems supports identification and supply review without making unconfirmed stock or delivery promises.
Availability, dispatch timing, packaging, freight method and warranty coverage are confirmed in the written quotation for the requested quantity and destination.
