19-inch modular switching platform for managed industrial network infrastructure.

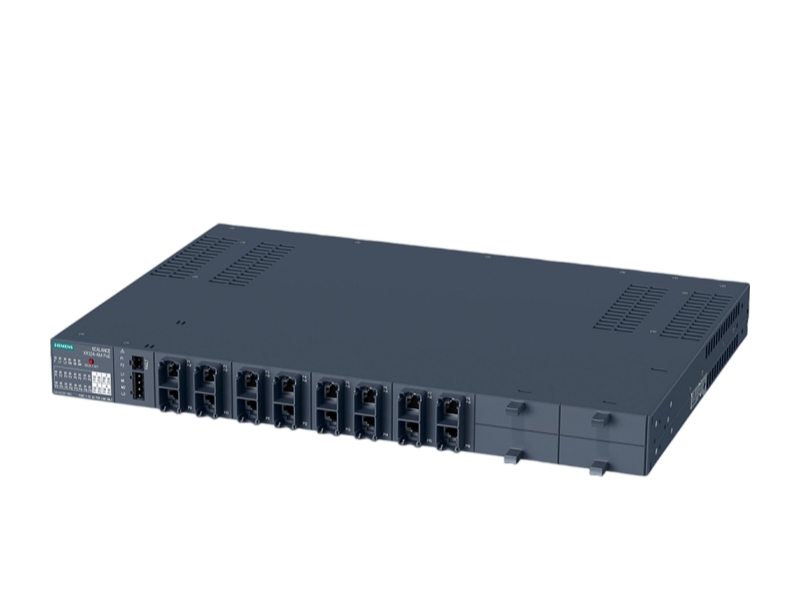

The Siemens 6GK5324-0GG10-3AR2 is a SCALANCE XR324-12M managed Industrial Ethernet switch designed for 19-inch rack installation. The front-port version accepts twelve 2-port media modules for electrical or optical 100/1000 Mbit/s connections and operates from a 230 V AC supply. Integrated functions include PROFINET IO device operation, network management, redundancy management, RSTP, VLAN and IGMP. A C-PLUG is included. Procurement teams should compare the complete suffix, power input, port direction, media-module population, C-PLUG configuration and network topology before replacing an installed switch.
| Product condition | Original new |
|---|---|
| Availability | In stock |
| Official life cycle | PM400: Phase-out started; unrestricted spare supply |
| PLM effective date | Phase-out since 2023-12-30 |
| Warranty | With 1 year warranty |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete part number | 6GK5324-0GG10-3AR2 |
| Product type | SCALANCE XR324-12M managed Industrial Ethernet switch |
| Installation | 19-inch rack; data cable outlets at the front |
| Media-module slots | 12 slots for 2-port electrical or optical media modules |
| Transmission rates | 10, 100 and 1000 Mbit/s |
| Rated supply | 230 V AC |
| Supply range | 85 to 264 V AC |
| Network functions | PROFINET IO device, network management, integrated redundancy manager, RSTP, VLAN and IGMP |
| Included component | C-PLUG |
| Country of origin | GERMANY |
| Shipping | Worldwide shipping coordination after destination review |
Twelve modular positions accept electrical or optical 2-port media modules.
Managed forwarding supports 10, 100 and 1000 Mbit/s network segments.
PROFINET, redundancy management, RSTP, VLAN and IGMP support plant integration.
| Rack network aggregation | Combines copper or fiber media modules in industrial control rooms. |
| Redundant plant networks | Supports managed ring and redundancy architecture planning. |
| PROFINET infrastructure | Connects automation cells and supervisory network segments. |
| Installed-base maintenance | Supports replacement planning for existing XR324-12M installations. |
Confirm the complete suffix, 230 V AC input, front-port orientation, rack space, installed media modules, optical or electrical media type, connector format, firmware, C-PLUG data and configured redundancy protocol before replacement.
Yes. Siemens product data identifies this complete order code as the SCALANCE XR324-12M managed Industrial Ethernet switch with 230 V AC supply and front ports.
Siemens lists PM400: phase-out started with unrestricted spare supply, effective since 2023-12-30. This status is not presented as Discontinued.
The switch provides twelve positions for 2-port electrical or optical media modules. The exact installed modules and connector types must be matched to the network design.
Compare the full suffix, supply voltage, port direction, media-module population, firmware, C-PLUG data and redundancy configuration.
No. Original new condition, in-stock availability and the one-year warranty are Stockoems commercial information.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A structured service route for industrial automation procurement, condition review, protective handling and after-sales communication.
| Gate | Service stage | Checks and deliverables |
|---|---|---|
| 01 | Identity verification | Model and suffix verification plus product and label photo confirmation. |
| 02 | Condition review | Condition confirmation, housing review and visible connector inspection. |
| 03 | Compatibility check | Technical compatibility review covering suffix, supply, interfaces, media modules, firmware and network configuration. |
| 04 | Packing preparation | Protective packaging selected for the equipment size, exposed connectors and transport route. |
| 05 | Logistics coordination | Worldwide shipping, shipment tracking and customs documentation prepared after destination review. |
| 06 | After-sales support | Written warranty terms, return authorization process and after-sales response channel. |
Order code, suffix and label data are compared before commercial confirmation. Available product photos support visible-condition review.
Connectors, housings and rack-mount features receive protective handling suited to industrial electronics.
Destination, consignee details and shipment requirements are reviewed before customs documents and tracking information are prepared.
Look for complete part-number discipline, clear condition descriptions, label-photo support, written warranty terms and a defined return authorization process.
Request model and suffix verification, condition confirmation, available label photos, packaging information, shipping scope and written commercial terms.
Engineers should compare supply voltage, port orientation, media-module types, connectors, firmware, C-PLUG data and configured redundancy functions.
Risk signals include shortened or changed suffixes, reused specifications from another model, unclear condition language, refusal to provide available label evidence, unsupported lead-time claims and missing return terms.
Share the complete part number, required quantity, destination country and available product label photos for a structured review.
