ABB PM5650-2ETH AC500 V3 Processor Module

Inquiry now

80 MBPROGRAM MEMORY

ABB AC500 V3

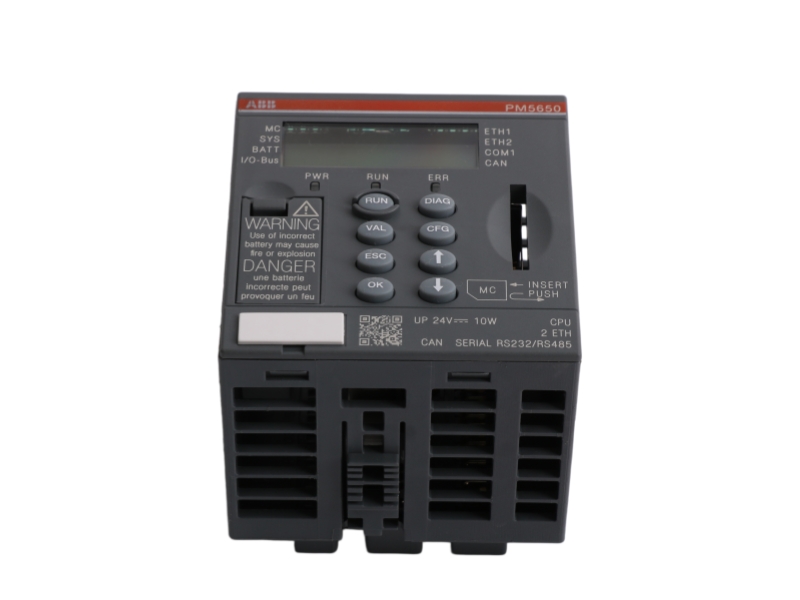

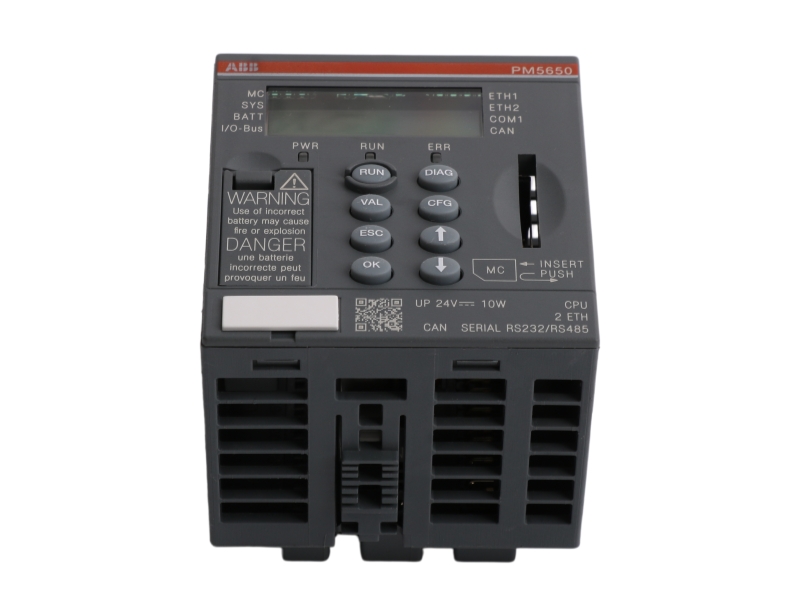

PM5650-2ETH Processor Module

Dual Ethernet communication, serial connectivity and structured AC500 expansion for industrial PLC modernization.

What This Module Does

ABB PM5650-2ETH is an AC500 (Standard) V3 processor module designed for PLC control tasks that require onboard Ethernet communication and expandable I/O integration. ABB specifies 80 MB total program memory, a 24 V DC supply, a memory card slot, an integrated display, one RS-232/485 interface, and two independent RJ45 Ethernet TCP/IP ports. Supported network functions include Modbus TCP, a web server, IEC 60870-5-104, and selectable Ethernet-based protocols. The module is suited to controller replacement, control-panel modernization, machine automation, and distributed system upgrades. Before ordering, verify the complete model, processor revision, terminal base, firmware, communication requirements, and existing project configuration.

Technical Identity

Manufacturer	ABB
Complete Part Number	PM5650-2ETH
Current Ordering Number	1SAP141000R0378
Product Type	AC500 V3 processor module
Series	AC500 (Standard) V3
Product Condition	NEW
Supply Voltage	24 V DC
Total Program Memory	80 MB
Processor	TI ARM Cortex-A9 32-bit RISC, 600 MHz
Ethernet Interfaces	2 independent RJ45 Ethernet TCP/IP interfaces
Serial Interface	1 RS-232/485 interface
Network Functions	Modbus TCP, web server, IEC 60870-5-104 and selectable Ethernet-based protocols
Terminal-Base Interfaces	I/O bus, ETH1, ETH2, CAN and COM1 on TB56xx terminal bases
Display and Storage	Integrated display and pluggable memory-card slot
Weight	135 g, processor module without terminal base
Mounting Position	Horizontal or vertical
Warranty	With 1 year warranty
Shipping	Worldwide options subject to written quotation and destination review

Communication Flow

CPU Core
600 MHz ARM Cortex-A9

➜

Ethernet
Two independent RJ45 ports

➜

AC500 System
I/O bus, CAN and COM1

Where PM5650-2ETH Fits

Machine Control
PLC tasks requiring dual Ethernet connectivity.

Panel Modernization
Structured AC500 processor replacement planning.

Data Exchange
Supported Ethernet protocols and web-server functions.

Distributed I/O
Compatible AC500 bases, I/O and communication modules.

CHECK

Compatibility Route

Model identity: Match PM5650-2ETH and the complete ABB ordering number or processor revision.

Base and I/O: Check the installed TB56xx terminal base, I/O arrangement and communication modules.

Interfaces: Confirm 24 V DC supply wiring, Ethernet topology, serial communication and CAN requirements.

Project data: Review the Automation Builder project, firmware level, backup and memory-card requirements.

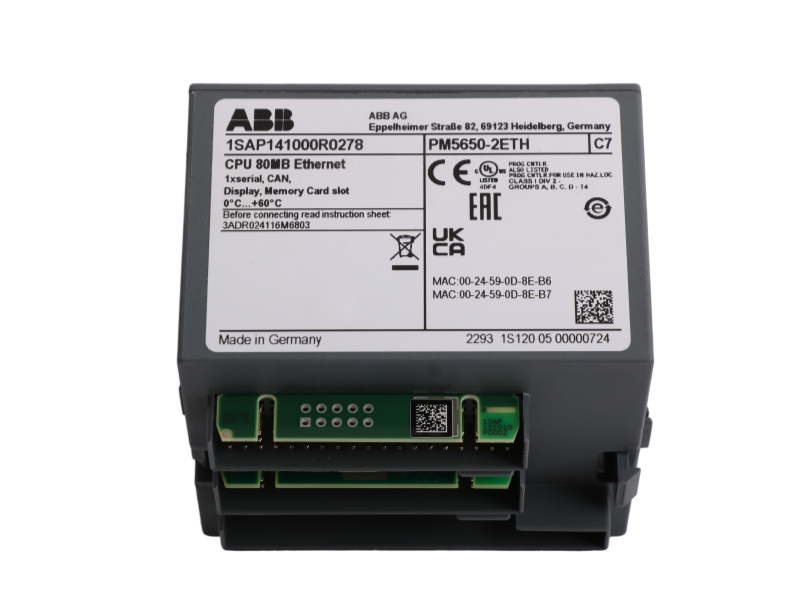

Visual evidence: Provide clear product-label and terminal-base photos before replacement approval.

Questions Buyers Ask

What is ABB PM5650-2ETH?
It is an AC500 V3 processor module with 80 MB total program memory and onboard Ethernet support.

Which communication interfaces are provided?
ABB specifies two independent RJ45 Ethernet ports and one RS-232/485 interface, with CAN and COM1 available through the terminal base.

Can the short model alone confirm compatibility?
No. Compare the ordering number, processor revision, terminal base and project requirements before purchasing.

What condition and warranty are offered?
This listing is prepared for NEW supply with 1 year warranty under the written quotation terms.

Can the module be shipped internationally?
Worldwide shipping options can be arranged after destination, quantity, packaging and customs-document requirements are reviewed.

Request a PM5650-2ETH Quotation

Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
