ABB · AC500 V3
Modular AC500 V3 processing with dual Ethernet, serial communication, display and terminal-base expansion.

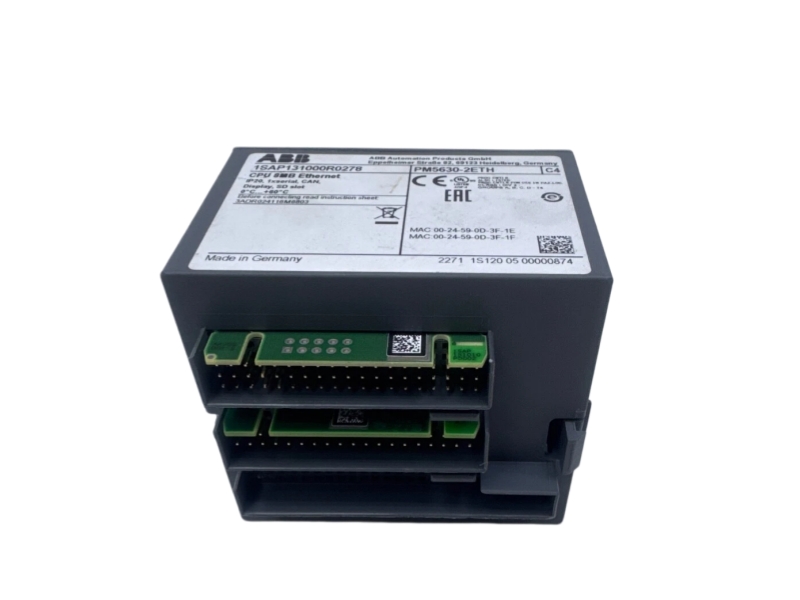

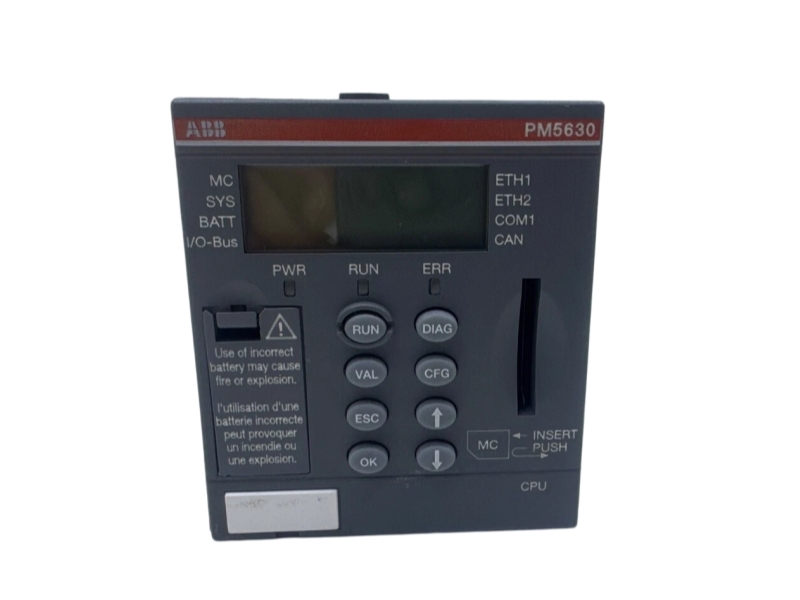

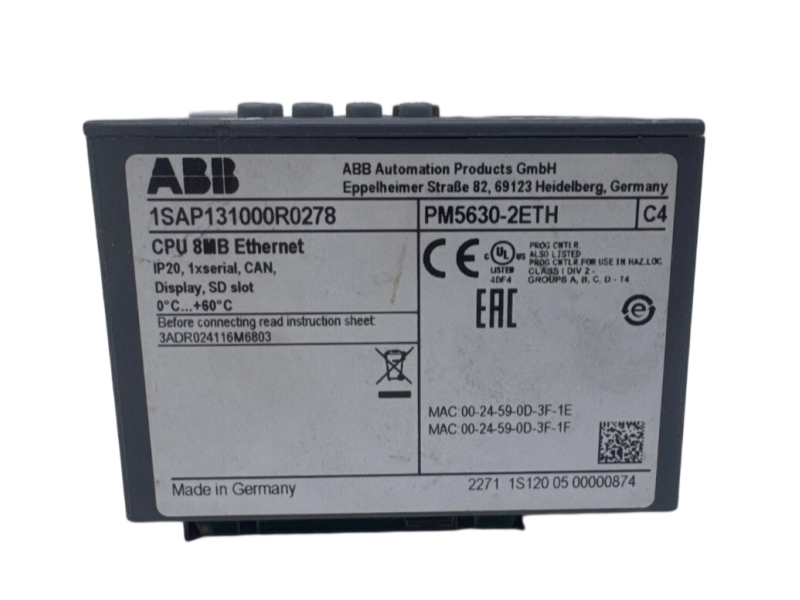

ABB PM5630-2ETH is a modular processor module in the AC500 V3 controller family. It provides two independent RJ45 Ethernet interfaces, COM1 RS-232/485 and CAN through a compatible terminal base, a display and memory-card support. ABB documents a maximum downloadable application size of 9 MB, including 2 MB for user program code and data and 7 MB for web-server data. The processor is intended for expandable automation systems using compatible terminal bases and I/O modules. Before ordering, match the full 1SAP order code, terminal base, firmware, Automation Builder version, communication wiring, memory card and saved project.
| Manufacturer | ABB |
|---|---|
| Complete Part Number | PM5630-2ETH |
| Product Type | AC500 V3 processor module / programmable logic controller CPU |
| Series | AC500 V3 |
| Product Condition | NEW |
| Country of Origin | SWEDEN |
| Model Configuration | AC500 V3 processor module with display, memory-card slot, dual Ethernet and serial communication |
| Power Supply | 24 V DC |
| Application Size | 9 MB total maximum downloadable application size; 2 MB user program code and data; 7 MB web-server data |
| Ethernet Interfaces | 2 independent RJ45 interfaces |
| Serial and Bus Interfaces | COM1 RS-232/485 and CAN on a compatible terminal base |
| Memory Card | Supported with the specified ABB memory-card arrangement |
| Mounting | Requires a compatible AC500 terminal base |
| Weight | 135 g without terminal base |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are confirmed in the written quotation; no unverified dispatch date is promised. |
Review the documented configuration and installation-specific checks before preparing a replacement or new-build quotation.
| Area | Documented Detail | Procurement Check |
|---|---|---|
| Processor module | Modular AC500 V3 CPU with display and memory-card support. | Verify the full ABB order code and processor revision. |
| Dual Ethernet | Two independent RJ45 Ethernet TCP/IP interfaces. | Confirm subnet design, protocol selection and security settings. |
| Serial communication | COM1 RS-232/485 and CAN are available through the terminal base. | Check the selected terminal base and field wiring. |
| Software and firmware | Revision-specific firmware and Automation Builder requirements apply. | Match firmware, project version and revision before replacement. |
Yes. ABB specifies two independent onboard RJ45 Ethernet interfaces.
No. ABB lists 135 g for the processor module without the terminal base.
Later processor revisions have defined minimum firmware and Automation Builder requirements that must match the project.
This listing is prepared with Product Condition NEW. Final quotation documentation defines the supplied condition and scope.
The stated commercial warranty is With 1 year warranty and is governed by the written quotation terms.
Worldwide shipping options can be arranged after destination, quantity, packaging and customs-document requirements are reviewed.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A documented workflow supports model verification, quotation review, protective packing and international shipment coordination.
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only. Our team reviews the requested part number and quantity, confirms the quoted condition, requests label photos when useful, prepares protective packaging and supplies shipment tracking and customary export documentation. Availability and dispatch timing are stated only in the written quotation.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Each entry is an independent product listing and is not presented as a direct replacement. Confirm the manufacturer, complete part number, revision and compatibility before ordering.
