CONTROL FILE
SR30
SIMATIC S7-200 SMART
AC/DC/Relay CPU |
SIEMENS / COMPLETE ORDER NUMBER
6ES7288-1SR30-0AA1A standard S7-200 SMART controller with an AC supply, 24 V DC digital inputs and relay outputs for compact automation. |

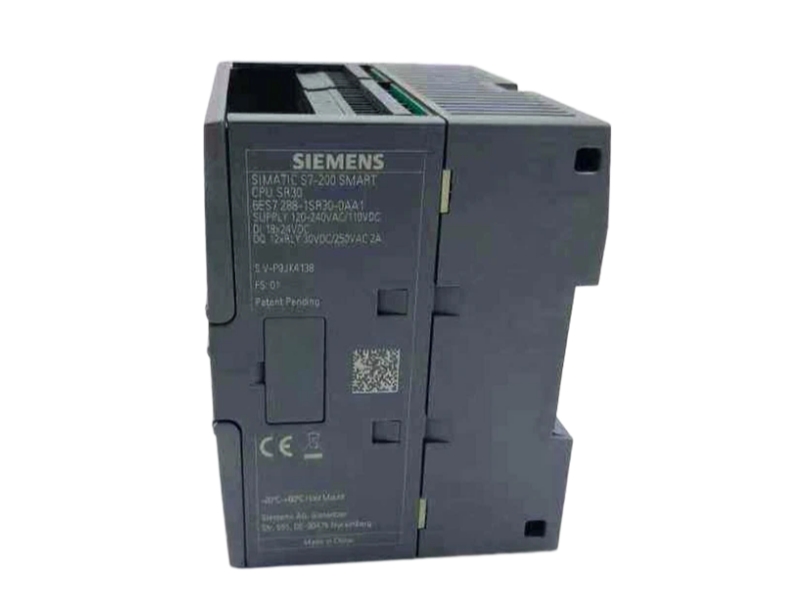

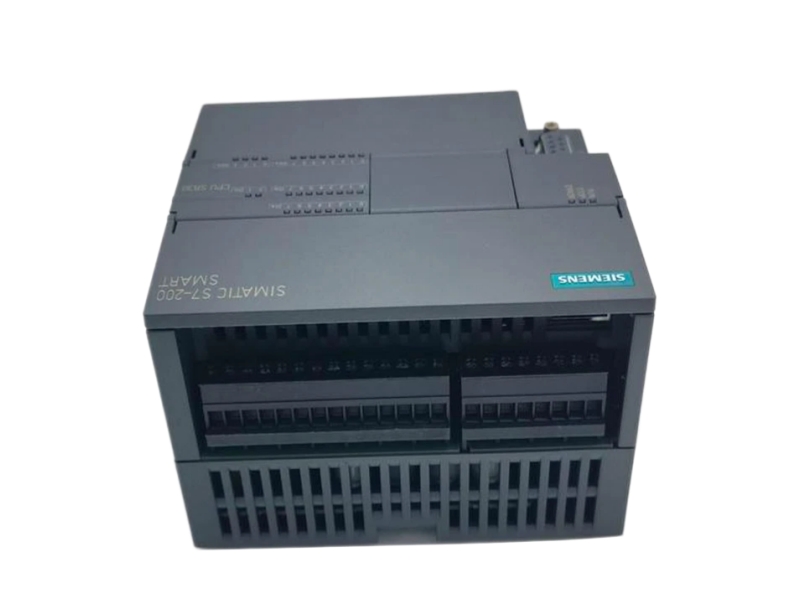

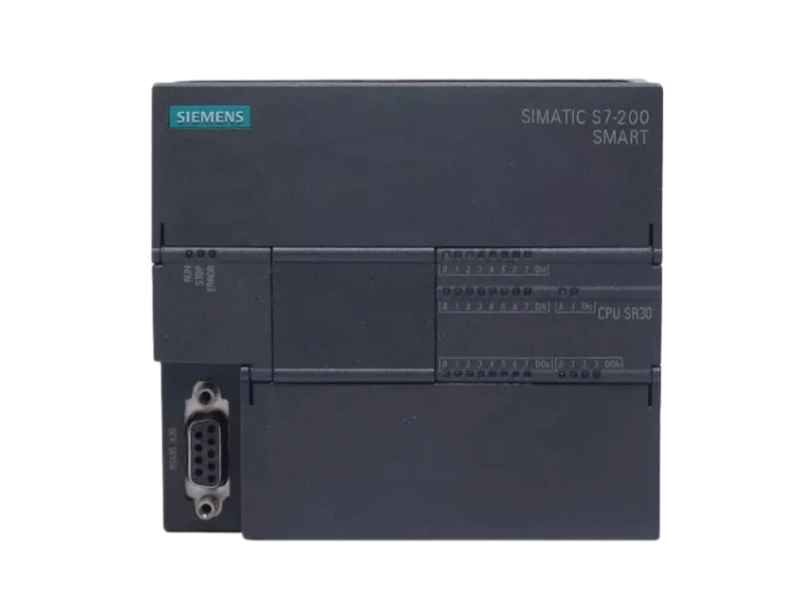

Siemens 6ES7288-1SR30-0AA1 is a SIMATIC S7-200 SMART CPU SR30 for compact machine and process-control tasks. It combines an 85–264 V AC supply, 18 onboard 24 V DC digital inputs and 12 relay outputs rated at 2 A. Siemens specifies 30 KB of program and data memory and engineering with STEP 7 Micro/WIN SMART. The model is relevant to maintenance replacement, panel modernization and small control projects where the complete order number, project backup and expansion arrangement must be verified before purchase.
| Control Point | Specified Configuration |
|---|---|
| Complete Part Number | 6ES7288-1SR30-0AA1 |
| Product Type | SIMATIC S7-200 SMART CPU SR30 AC/DC/Relay |
| Onboard Inputs | 18 digital inputs, 24 V DC |
| Onboard Outputs | 12 relay outputs, 2 A |
| Supply Range | 85–264 V AC, 47–63 Hz |
| Program and Data Memory | 30 KB total |
| Engineering | STEP 7 Micro/WIN SMART |
| Mounting | Standard DIN rail |
| 18 DI 24 V DC INPUTS |
12 DQ 2 A RELAYS |
30 KB PROGRAM + DATA |
DIN RAIL MOUNTING |
The CPU uses STEP 7 Micro/WIN SMART and supports an optional microSDHC card. Before replacement, secure the validated project, document connected expansion modules and record the field wiring. Isolate power, verify the AC supply range, compare terminal assignments and maintain the cabinet clearances specified for the installation.
Relay loads, switching frequency and protection devices must be checked against the connected equipment. A similar S7-200 SMART CPU is not automatically interchangeable with this exact order number.
| Compact machinery | Sequence and interlock control with integrated digital I/O. |
| Conveyor and handling systems | Relay-output control for selected panel designs. |
| Utility and skid automation | Small standalone control stations with documented field signals. |
| Maintenance replacement | Replacement planning for an installed CPU SR30 after configuration review. |
| Panel modernization | Migration projects where project data, I/O and expansion requirements are known. |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm. |
| Firmware Version | Contact us to confirm. |
| Country of Origin | GERMANY |
| Compatibility | Confirm the project, supply, I/O, expansion modules and cabinet wiring. |
| Availability and Warranty | Confirm current availability and written quotation terms. |
Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Each stage is documented against the exact Siemens order number and the written quotation.
| 01 | Identify Verify 6ES7288-1SR30-0AA1, CPU type, complete suffix and required quantity. |
| 02 | Confirm State product condition and written warranty terms in the quotation; provide current label photos when requested. |
| 03 | Review Compare supply, I/O, expansion layout, project information and revision requirements from customer-provided data. |
| 04 | Protect Prepare suitable product protection and export packaging for the agreed transport route. |
| 05 | Dispatch Confirm carrier, freight cost, shipment tracking and agreed customs documentation for the destination. |
| 06 | Respond Review after-sales questions and issue return authorization according to the written order terms. |
Availability and lead time are confirmed for the current inquiry and are not fixed by this page.
