Eight dry-contact relay outputs extend load switching for compatible S7-200 SMART control panels.

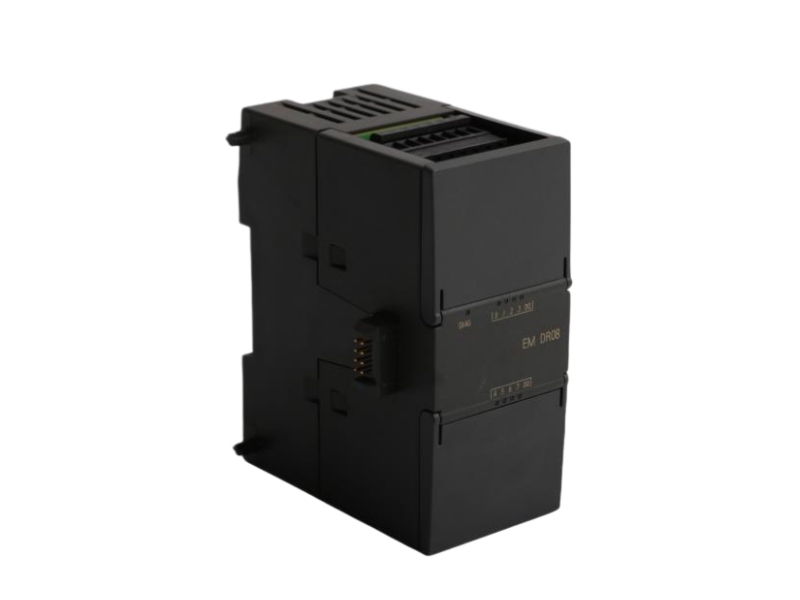

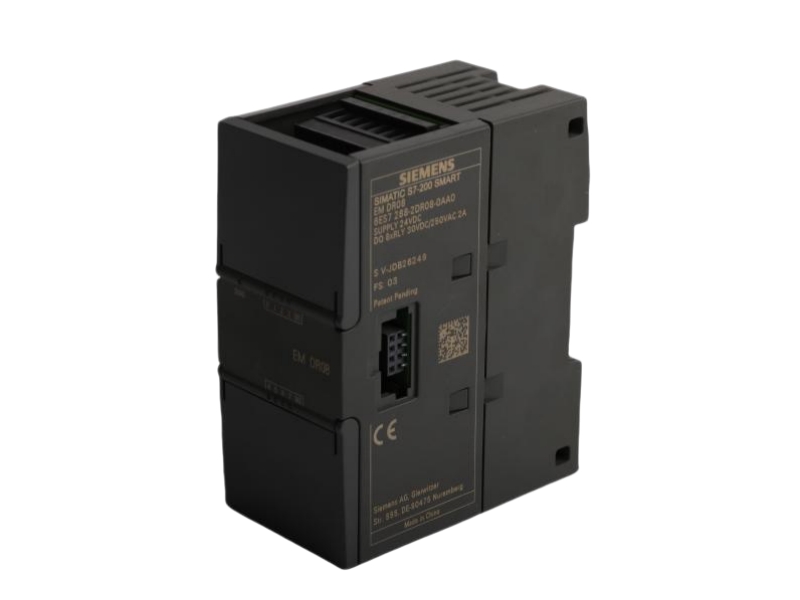

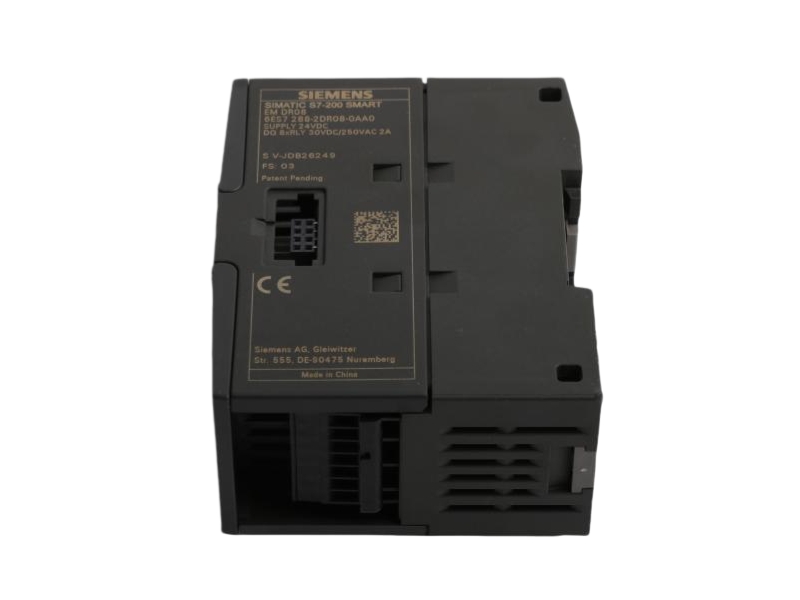

Siemens 6ES7288-2DR08-0AA0 is the SIMATIC S7-200 SMART EM DR08 relay output expansion module. It provides eight dry-contact relay outputs for switching documented industrial loads under CPU control. The module is suitable for panel expansion, machine maintenance and replacement work where relay isolation and mixed load voltages are required. Each application must remain within the published contact ratings and wiring rules. Before ordering, verify the complete article number, 24 V DC module supply, load type, switching current, required isolation, terminal assignment and available expansion position in the S7-200 SMART system.
| Field | Confirmed information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7288-2DR08-0AA0 |
| Product Type | SIMATIC S7-200 SMART EM DR08 Relay Output Module |
| Series | SIMATIC S7-200 SMART |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm. |
| Firmware / Software Version | Contact us to confirm. |
| Country of Origin | GERMANY |
| Compatibility | Confirm CPU, expansion layout and project configuration before ordering. |
| Availability / Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options confirmed with quotation. |
| Parameter | Value |
|---|---|
| I/O configuration | 8 relay digital outputs; no digital inputs |
| Output type | Dry-contact relay |
| Rated relay coil supply | 24 V DC |
| Resistive load | 2 A maximum |
| Inductive load | 2 A maximum |
| Lamp load | 30 W DC or 200 W AC maximum |
| Output delay | 10 ms maximum, 0 to 1 and 1 to 0 |
| Isolation test | 1,500 V AC for 1 minute |
| Dimensions (W × H × D) | 45 × 100 × 81 mm |
| Approximate weight | 166.3 g |
| 01
CPU output command
|
02
EM DR08 relay coil
|
03
Dry relay contact
|
04
Documented field load
|
| Contactor and interposing-relay control | Indicator and annunciator switching | Machine output expansion | Replacement in documented S7-200 SMART relay-output systems |
Compatibility notice: Confirm the complete suffix, supply and signal levels, terminal assignment, module position and the original project documentation. Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
| 1 | Complete article number 6ES7288-2DR08-0AA0 |
| 2 | Required quantity and destination country |
| 3 | CPU model and available expansion position |
| 4 | Load voltage, current and switching category |
| 5 | Terminal drawing and product-label photos |
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Our workflow supports engineers and buyers from exact model verification through protected international dispatch. Commercial terms are confirmed in writing before the order is placed.
| 01 | Model and suffix verification Compare the complete Siemens article number and product label. |
| 02 | Condition confirmation Supply as NEW and confirm available product photos when requested. |
| 03 | Technical compatibility review Review the S7-200 SMART CPU, expansion layout, EM DR08 I/O type and project requirements. |
| 04 | Packing and documentation Protect terminals and housing; prepare shipment and customs documents. |
| 05 | Worldwide shipping Confirm carrier, freight cost, tracking and destination requirements. |
| 06 | Warranty and returns Provide a 1-year warranty under written terms and a documented return-authorization process. |
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only.
Send the complete part number, quantity, destination country and available label photos for verification.
