Eight 24 V DC inputs and eight 2 A relay outputs combine signal acquisition and load switching in one module.

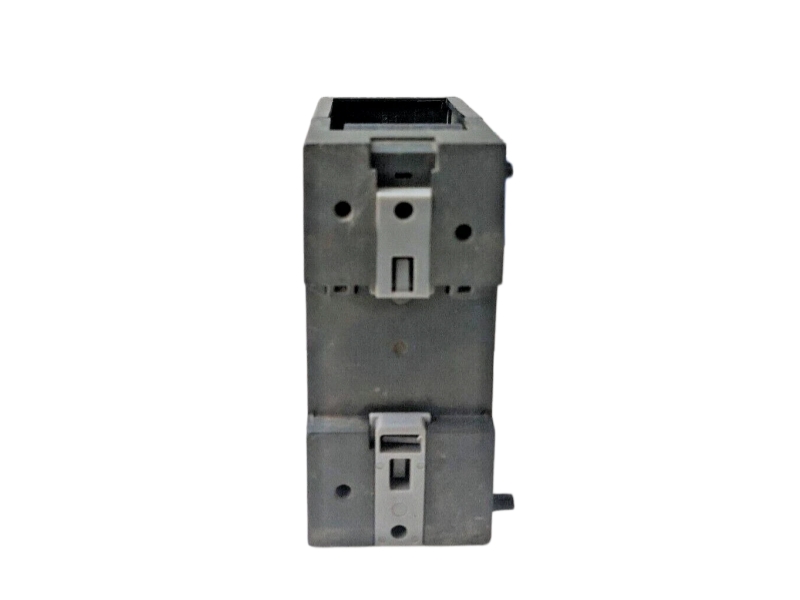

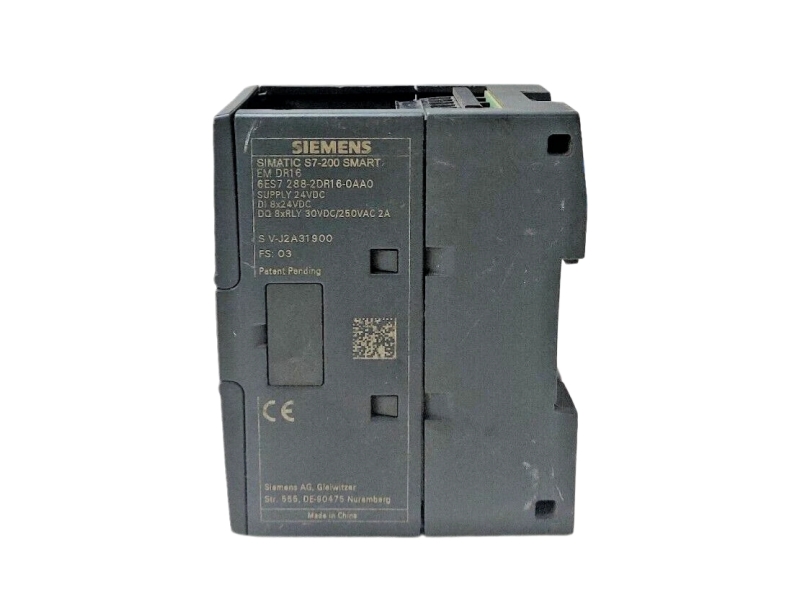

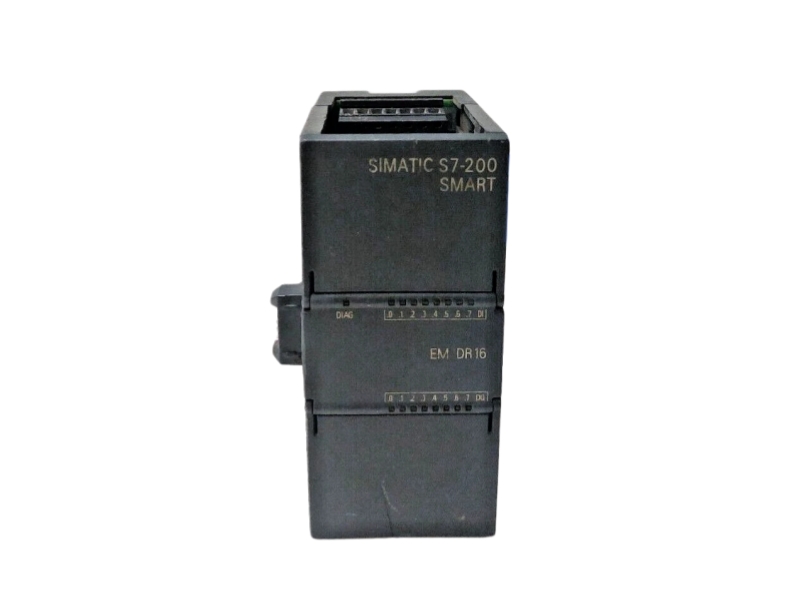

Siemens 6ES7288-2DR16-0AA0 is the SIMATIC S7-200 SMART EM DR16 mixed digital I/O expansion module. It combines eight 24 V DC sink/source inputs with eight dry-contact relay outputs rated up to 2 A for documented loads. This balanced arrangement supports compact machine panels, maintenance replacements and projects requiring both additional field feedback and relay switching in one expansion position. Before ordering, confirm the complete article number, input commons, relay load voltage and current, terminal allocation, available module position and the corresponding STEP 7 Micro/WIN SMART project configuration.
| Field | Confirmed information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7288-2DR16-0AA0 |
| Product Type | SIMATIC S7-200 SMART EM DR16 Digital I/O Module |
| Series | SIMATIC S7-200 SMART |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm. |
| Firmware / Software Version | Contact us to confirm. |
| Country of Origin | GERMANY |
| Compatibility | Confirm CPU, expansion layout and project configuration before ordering. |
| Availability / Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options confirmed with quotation. |
| Parameter | Value |
|---|---|
| I/O configuration | 8 digital inputs and 8 relay outputs |
| Input type | 24 V DC sink/source; IEC Type 1 sink |
| Input grouping | 2 groups |
| Relay output type | Dry contact, 2 A maximum |
| Module supply | 24 V DC |
| Dimensions (W × H × D) | 45 × 100 × 81 mm |
| Approximate weight | 201.9 g |
| Power consumption | 5.5 W |
| SM bus current | 145 mA |
| 24 V DC current | 4 mA per used input; 11 mA per used relay coil |
| 01
Field feedback signals
|
02
EM DR16 input processing
|
03
S7-200 SMART CPU logic
|
04
EM DR16 relay load switching
|
| Compact machine I/O expansion | Sensor feedback with relay actuator control | Panel retrofit requiring mixed digital I/O | Maintenance replacement in documented S7-200 SMART systems |
Compatibility notice: Confirm the complete suffix, supply and signal levels, terminal assignment, module position and the original project documentation. Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
| 1 | Complete article number 6ES7288-2DR16-0AA0 |
| 2 | Required quantity and destination country |
| 3 | CPU model and expansion layout |
| 4 | Input signal type and relay load data |
| 5 | Existing module label and terminal drawing |
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Our workflow supports engineers and buyers from exact model verification through protected international dispatch. Commercial terms are confirmed in writing before the order is placed.
| 01 | Model and suffix verification Compare the complete Siemens article number and product label. |
| 02 | Condition confirmation Supply as NEW and confirm available product photos when requested. |
| 03 | Technical compatibility review Review the S7-200 SMART CPU, expansion layout, EM DR16 I/O type and project requirements. |
| 04 | Packing and documentation Protect terminals and housing; prepare shipment and customs documents. |
| 05 | Worldwide shipping Confirm carrier, freight cost, tracking and destination requirements. |
| 06 | Warranty and returns Provide a 1-year warranty under written terms and a documented return-authorization process. |
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only.
Send the complete part number, quantity, destination country and available label photos for verification.
