Siemens 6ES7288-2DE08-0AA0 SIMATIC S7-200 SMART EM DE08 Digital Input Module

Siemens 6ES7288-2DE08-0AA0 EM DE08 Digital Input Module

Inquiry now

DIGITAL SIGNAL INTAKE / EM DE08

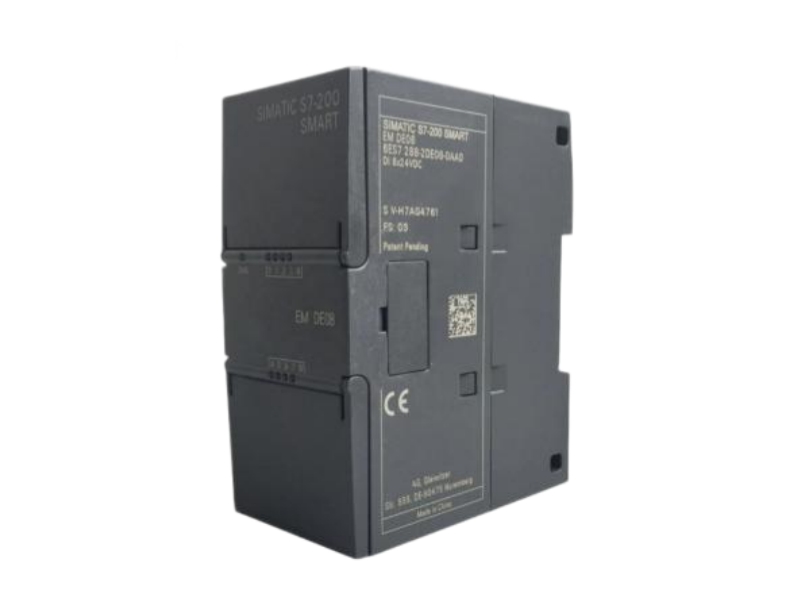

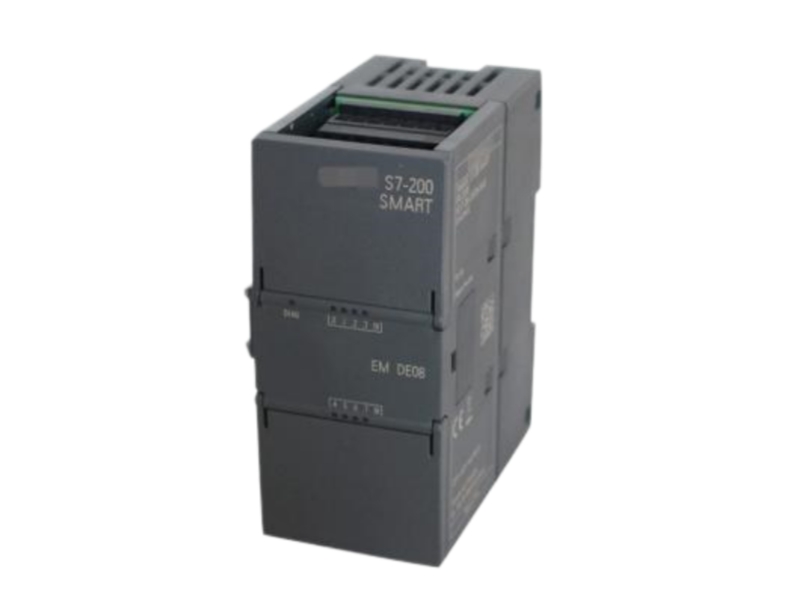

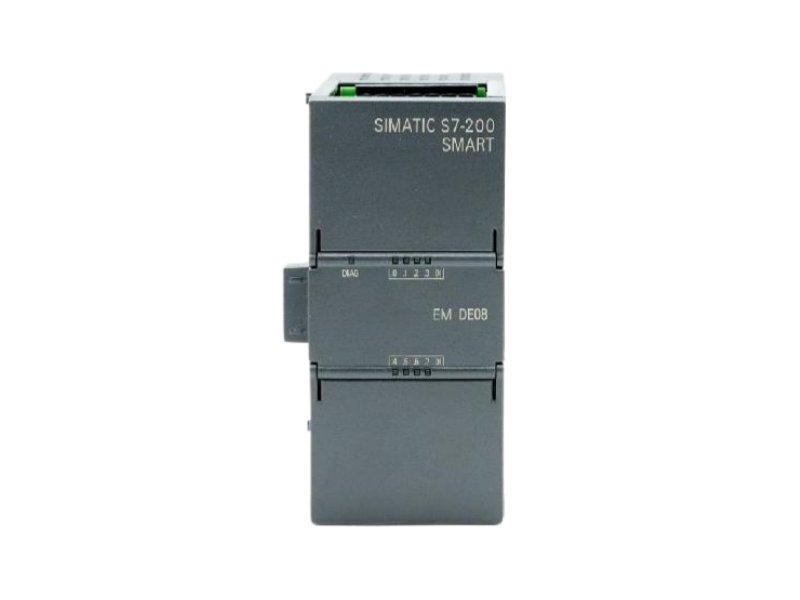

Siemens 6ES7288-2DE08-0AA0

SIMATIC S7-200 SMART EM DE08 Digital Input Module

Eight 24 V DC digital inputs for documented S7-200 SMART expansion, replacement and control-panel maintenance projects.

PRODUCT SUMMARY

Where EM DE08 fits in the signal chain

Siemens 6ES7288-2DE08-0AA0 is the EM DE08 digital input expansion module for the SIMATIC S7-200 SMART family. It adds eight 24 V DC digital input channels for collecting discrete field signals from industrial equipment. The module supports sink/source input wiring and selectable filter times arranged in groups of four. It is relevant for control-panel expansion, maintenance replacement, machine rebuilding and spare-part planning. Before ordering, confirm the complete part number, installed system, available expansion position, wiring arrangement, signal voltage, current project documentation and the label on the existing module. Availability and the scope of the 1-year warranty are confirmed in the written quotation.

Key Product Information

Field	Confirmed information
Manufacturer	Siemens
Complete Part Number	6ES7288-2DE08-0AA0
Product Type	EM DE08 digital input expansion module
Series	SIMATIC S7-200 SMART
Model Configuration	8 digital inputs, 24 V DC
Product Condition	NEW
Hardware Revision	Contact us to confirm.
Firmware / Software	Contact us to confirm.
Country of Origin	GERMANY
Availability / Warranty	With 1 year warranty
Shipping	Worldwide options confirmed with destination and quotation.

Technical Data Summary

Specification	EM DE08 value
Digital inputs	8
Input type	Sink / source; IEC Type 1 sink
Nominal input	24 V DC at 4 mA
Selectable filter times	0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8 ms; groups of four
Isolation	500 V AC for 1 minute, field side to logic
Isolation groups	2
Power consumption	1.5 W
SM bus current	105 mA
Dimensions (W × H × D)	45 × 100 × 81 mm
Weight	141.4 g
Maximum cable length	Shielded 500 m; unshielded 300 m for normal inputs

Four-Point Signal Route

Field signal

Document the device and switching circuit.

24 V DC input

Match sink/source wiring and signal levels.

Filter group

Select timing by groups of four inputs.

Control system

Verify CPU, expansion layout and project data.

Features and Benefits

Eight digital input points in one expansion module.
Sink/source input wiring for documented field circuits.
Selectable input filtering in groups of four.
Status indication supports commissioning and maintenance checks.
Two isolation groups separate field-side input groups.

Applications

Discrete sensor and switch signal collection.
Machine-control panel input expansion.
Maintenance replacement in documented S7-200 SMART systems.
Production-line retrofit and spare-module planning.

Installation, Wiring and Compatibility

Confirm the complete order number, CPU family, available expansion position, field supply, sink/source circuit, terminal allocation, filter setting and project documentation before installation. Follow the applicable Siemens system manual and site safety procedures. Power isolation, wiring inspection and commissioning should be performed by qualified personnel. Do not assume interchangeability from the EM DE08 name alone; compare the complete suffix and the label on the installed module.

Procurement Checklist

A	Identity: send the complete part number and clear label photographs.
B	System: confirm CPU model, expansion layout and project information.
C	Electrical: verify 24 V DC signals, circuit type and wiring assignment.
D	Commercial: confirm condition, quantity, availability, warranty and destination.

Ordering FAQ

Is 6ES7288-2DE08-0AA0 currently available?
Availability is checked for the requested quantity and confirmed in the current written quotation.

What does EM DE08 provide?
It provides eight 24 V DC digital inputs for the applicable S7-200 SMART expansion configuration.

How should compatibility be checked?
Compare the complete order number, CPU and expansion layout, field wiring, signal voltage, project data and existing module label.

Can another eight-input module be used directly?
Do not assume direct interchangeability. Electrical characteristics, terminal assignment, expansion compatibility and project requirements must be reviewed.

Can product and label photos be supplied?
Current product and label photographs can be requested for the available unit before shipment.

What warranty and shipping options apply?
The product is supplied with a 1-year warranty. Carrier, freight cost and worldwide shipping options are stated in the written quotation or order confirmation.

REQUEST A MODEL CHECK OR QUOTATION

Confirm EM DE08 before ordering

Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.

Email sales6@apterpower.com WhatsApp +86 18159889985

SERVICE SIGNAL / SIX CONTROL POINTS

From Part-Number Review to After-Sales Response

Each service step is documented against Siemens 6ES7288-2DE08-0AA0, the requested quantity and the written quotation.

01Model and Suffix Verification
Check Siemens, complete order number 6ES7288-2DE08-0AA0, EM DE08 designation and required quantity.

02Condition and Photo Confirmation
Confirm NEW condition and provide current product and label photographs when requested.

03Technical Compatibility Review
Review CPU, expansion position, 24 V DC signals, sink/source wiring, terminal allocation and project information.

04Protective Packaging
Prepare suitable module protection, anti-static handling and export packaging for the agreed transport route.

05Worldwide Shipping
Confirm carrier, freight cost, tracking and agreed customs documentation for the destination.

06Warranty, Returns and Response
Provide the 1-year warranty terms, after-sales response and return authorization procedures according to the order terms.

Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only.

REQUEST A QUOTATION

Contact Our Sales Team

Send the complete part number, required quantity, destination country and available product label photos. We will confirm availability, condition, compatibility review requirements, shipping options and 1-year warranty terms.

Email: sales6@apterpower.com WhatsApp: +86 18159889985
