8 digital inputs, 8 digital outputs and 8 configurable digital input/output channels for distributed automation integration.

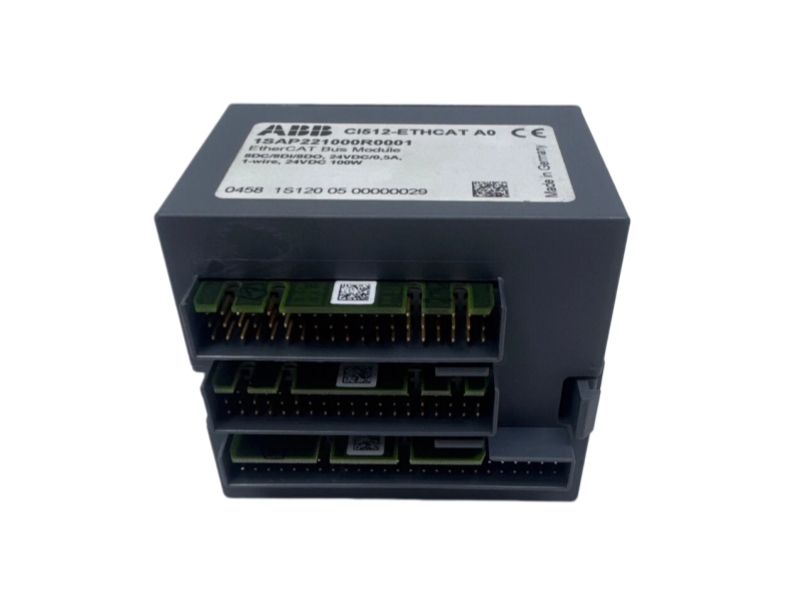

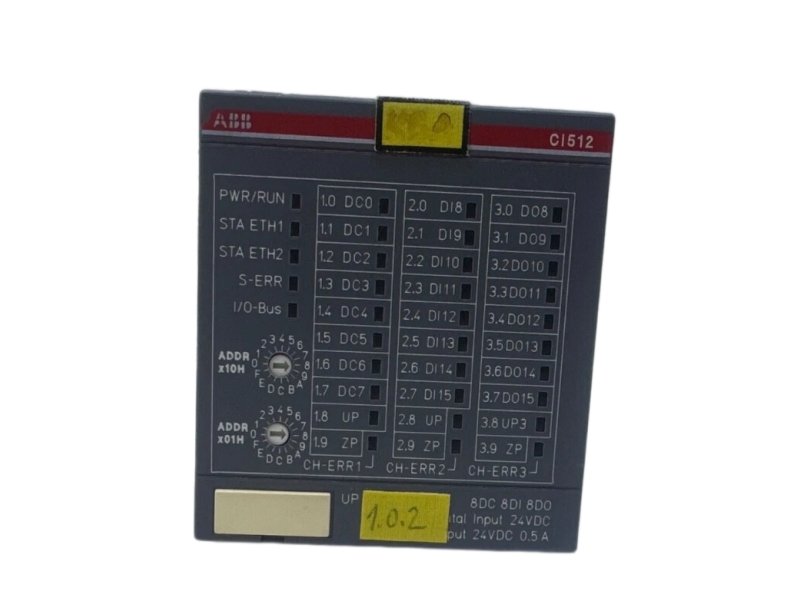

ABB CI512-ETHCAT is an S500 EtherCAT communication interface module for distributed digital I/O. It integrates eight 24 V DC digital inputs, eight 24 V DC digital outputs and eight software-configurable digital input/output channels. Output channels are rated up to 0.5 A, and cam-switch functionality supports position-related control tasks. Dual RJ45 EtherCAT interfaces provide the network connection through the terminal unit. For device index C0 and above, the station can be expanded with up to ten S500 I/O modules. Confirm the ordering number, terminal unit, device index, EtherCAT description file and channel configuration before procurement or replacement.
| Manufacturer | ABB |
|---|---|
| Complete Part Number | CI512-ETHCAT |

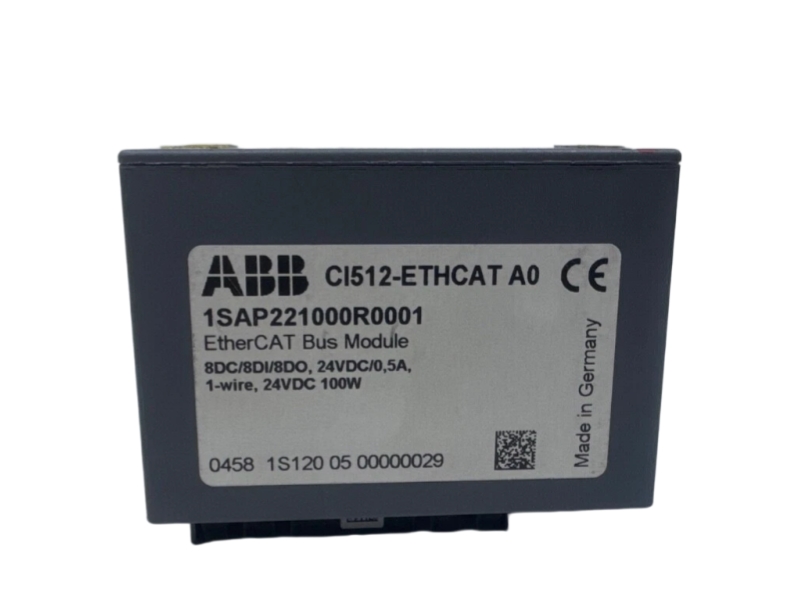

| ABB Ordering Number | 1SAP221000R0001 |
| Product Type | EtherCAT communication interface module |
| Series | S500 I/O for AC500 automation systems |
| Protocol / Network Role | EtherCAT communication interface |
| Digital Inputs | 8 channels, 24 V DC |
| Digital Outputs | 8 channels, 24 V DC, 0.5 A maximum |
| Configurable Digital I/O | 8 channels, 24 V DC, 0.5 A maximum |
| Cam Function | Cam switch and supported extended cam-switch functionality |
| Network Connection | 2 RJ45 EtherCAT interfaces |
| S500 Expansion | Up to 10 S500 I/O modules for device index C0 and above |
| Terminal Unit | TU507-ETH or TU508-ETH |
| Galvanic Isolation | Module-wise |
| Configuration Storage | The module does not store the I/O configuration itself |
| Product Condition | NEW |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are stated in the written quotation after order review. |
Verify CI512-ETHCAT and ordering number 1SAP221000R0001. Check the TU507-ETH or TU508-ETH terminal unit, device index, EtherCAT ESI/XML device description, master project, process-supply grouping and configurable-channel directions. S500 expansion and extended cam-switch features require device index C0 or above.
It provides 8 digital inputs, 8 digital outputs and 8 configurable digital input/output channels.
No analog channels are listed for CI512-ETHCAT; the integrated I/O is digital.
Two RJ45 interfaces on the terminal unit provide the EtherCAT connection.
Device index C0 and above supports up to 10 additional S500 I/O modules.
ABB states that CI512-ETHCAT does not store the I/O configuration itself.
Match the complete suffix, ordering number, device index, terminal unit, ESI/XML data and configured channel directions.
