8 digital inputs, 8 digital outputs, 4 analog inputs and 2 analog outputs for distributed automation integration.

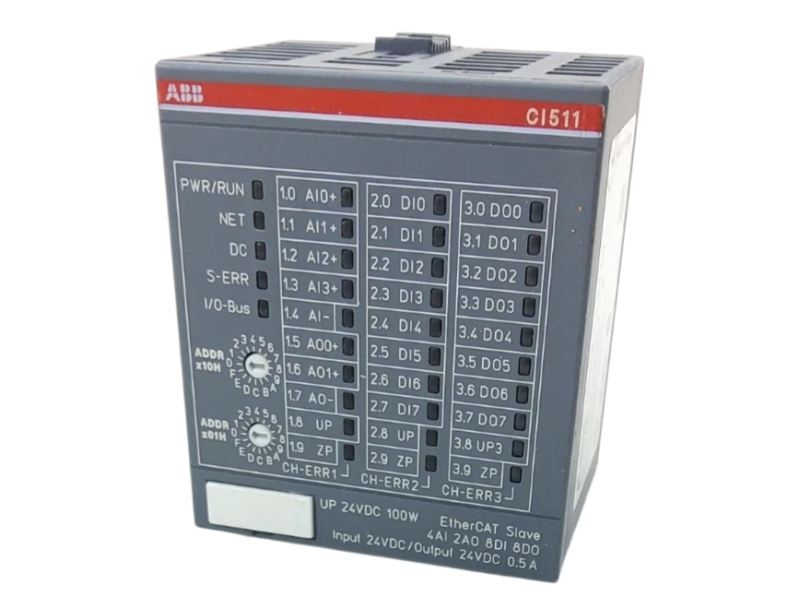

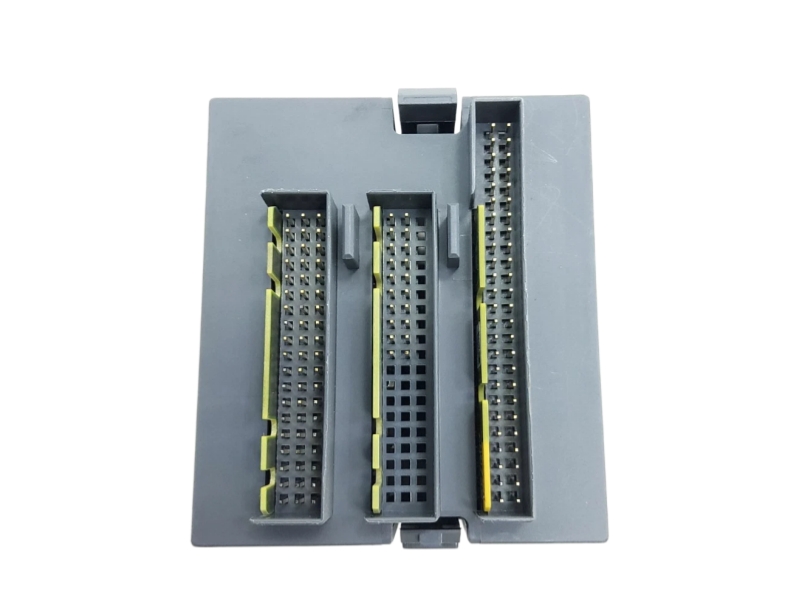

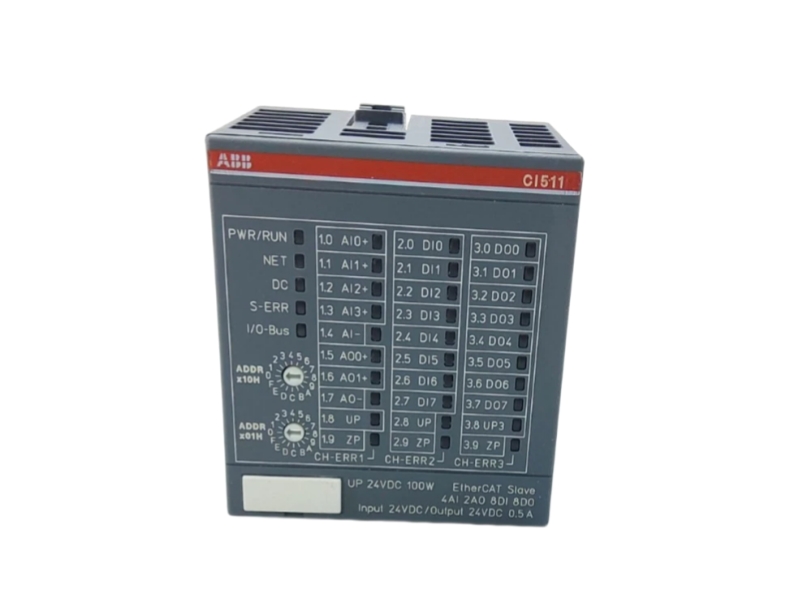

ABB CI511-ETHCAT is an S500 EtherCAT communication interface module with integrated mixed I/O. It combines eight 24 V DC digital inputs, eight 24 V DC digital outputs, four analog inputs and two analog outputs. The analog channels provide 12-bit resolution, and the module supports cam-switch functions. Two RJ45 EtherCAT ports on the terminal unit enable straightforward line topology. Device index C0 and above can expand with up to ten S500 I/O modules and use extended cam-switch functions. Before ordering, confirm the ordering number, terminal unit, device index, EtherCAT device-description file and planned signal configuration.
| Manufacturer | ABB |
|---|---|
| Complete Part Number | CI511-ETHCAT |
| ABB Ordering Number | 1SAP220900R0001 |
| Product Type | EtherCAT communication interface module |
| Series | S500 I/O for AC500 automation systems |
| Protocol / Network Role | EtherCAT communication interface |
| Digital Inputs | 8 channels, 24 V DC |
| Digital Outputs | 8 channels, 24 V DC, 0.5 A maximum |
| Analog Inputs | 4 channels, 12-bit resolution including sign |
| Analog Outputs | 2 channels, 12-bit resolution including sign |
| Cam Function | Cam switch and supported extended cam-switch functionality |
| Network Connection | 2 RJ45 EtherCAT interfaces |
| S500 Expansion | Up to 10 S500 I/O modules for device index C0 and above |
| Terminal Unit | TU507-ETH or TU508-ETH |
| Galvanic Isolation | Module-wise |
| Product Condition | NEW |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are stated in the written quotation after order review. |
Confirm CI511-ETHCAT and ordering number 1SAP220900R0001. Check the TU507-ETH or TU508-ETH terminal unit, device index, EtherCAT ESI/XML device description, master configuration, analog ranges, process supply and I/O mapping. Expansion and extended cam-switch functions require device index C0 or above.
It combines EtherCAT communication with 8 digital inputs, 8 digital outputs, 4 analog inputs and 2 analog outputs.
The official documentation supports voltage, current and resistance temperature detector input configurations, plus voltage and current outputs.
Two RJ45 interfaces on the Ethernet terminal unit support the EtherCAT line connection.
Device index C0 and above supports expansion with up to 10 S500 I/O modules.
The index determines availability of S500 expansion and extended cam-switch functionality.
Check the exact suffix, ordering number, index, terminal unit, ESI/XML file, analog ranges and EtherCAT project mapping.
