Purpose-built I/O expansion for documented ABB automation architectures and planned industrial replacement work.

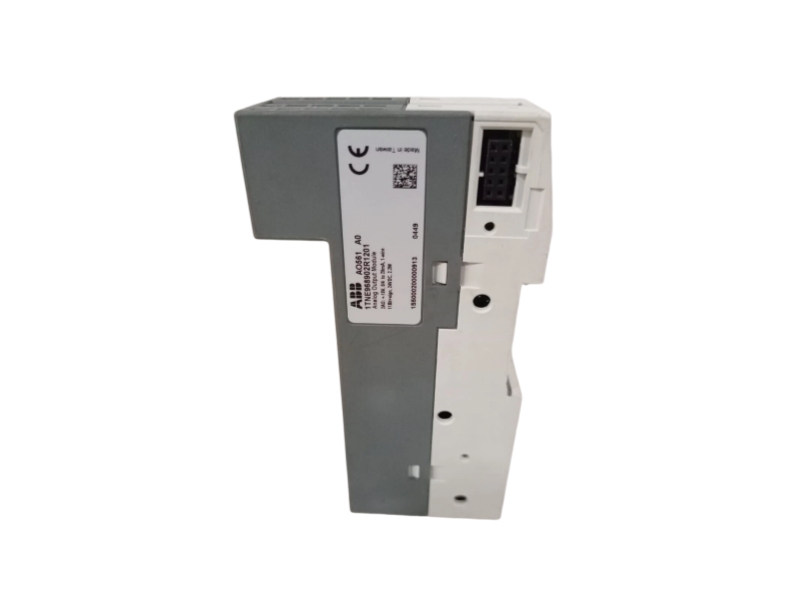

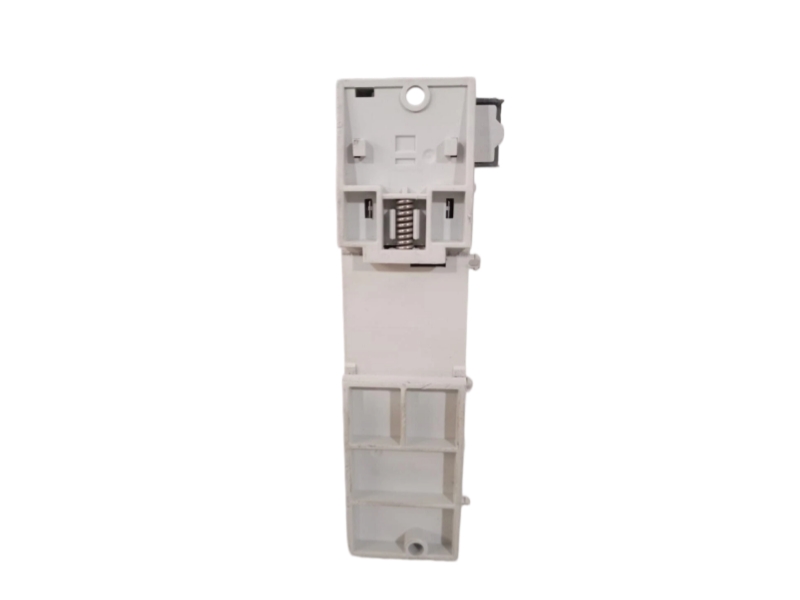

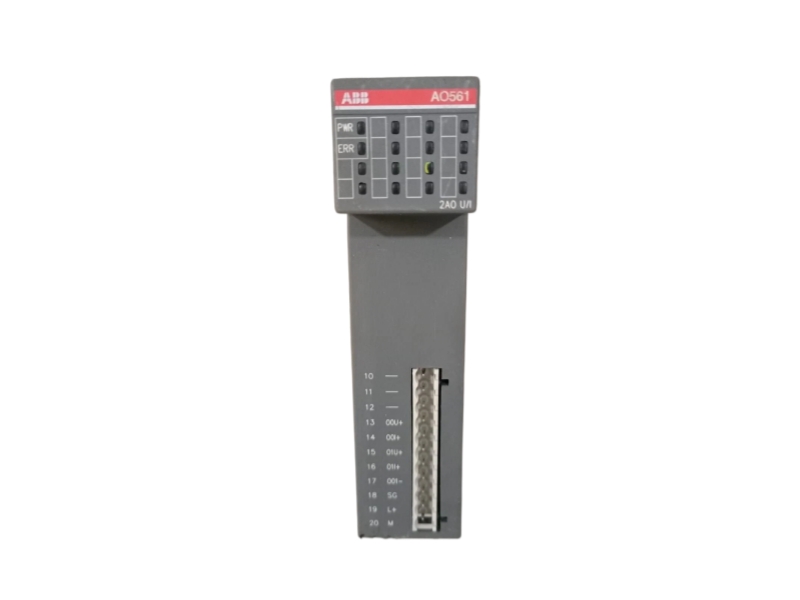

ABB AO561 is a compact S500-eCo analog output module with two configurable voltage or current outputs arranged in one group. It supports precise command-signal generation for small automation assemblies and distributed machine functions. The module uses a removable 11-pin terminal block that is ordered separately, helping simplify wiring service and module replacement. AO561 is appropriate for new panel builds, controlled upgrades and maintenance of an existing S500-eCo station. Before purchase, verify the complete order code, product version, terminal block type, selected output mode and existing field wiring.
| Manufacturer | ABB |
|---|---|
| Complete Part Number | AO561 |
| Order Code | 1TNE968902R1201 |
| Product Type | S500-eCo Analog Output Module |
| Series | S500-eCo |
| Output Configuration | 2 configurable analog outputs U/I in one group |
| Resolution | 12 bits including sign; 13 bits including sign for version E0 or later |
| Terminal Block | Removable 11-pin block; TA563-11, TA564-11 or TA565-11; ordered separately |
| Dimensions | 34 × 135 × 84.2 mm |
| Weight | 0.118 kg |
| Product Condition | NEW |
| Country of Origin | SWEDEN |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping arranged under written quotation terms |
Confirm AO561, order code 1TNE968902R1201, product version, voltage or current configuration, terminal block model, field wiring and enclosure clearance. Resolution differs by version, so provide a clear product-label photo when replacing an installed module.
A: AO561 provides two configurable analog outputs in one group.
A: Yes. The two channels are configurable for voltage or current operation.
A: ABB documentation identifies a removable 11-pin terminal block ordered separately.
A: The documented resolution changes for version E0 or later, making label verification essential.
A: ABB lists TA563-11, TA564-11 and TA565-11 terminal-block options.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Our team coordinates model verification, commercial confirmation, protective handling and international dispatch without promising unconfirmed inventory or lead time.
