An AC500-S functional-safety processor combining PROFIsafe F-Host capability with F-Device operation for one network.

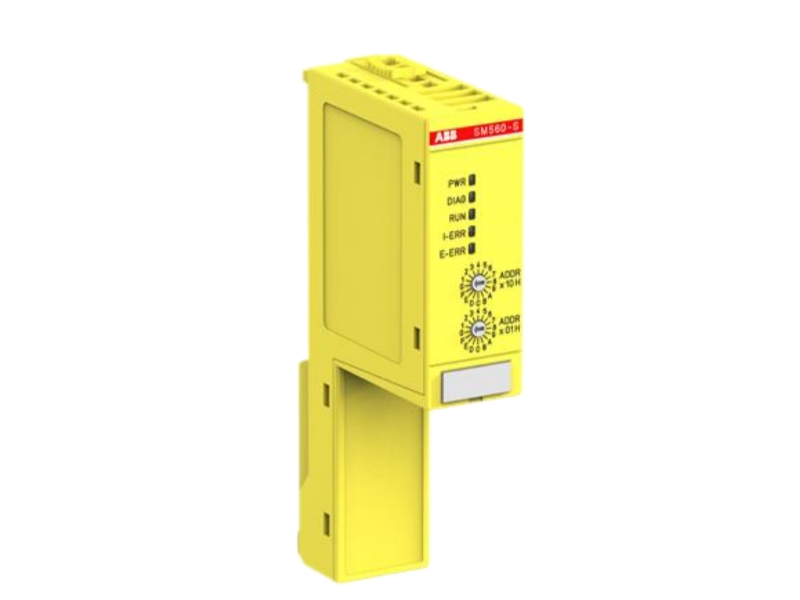

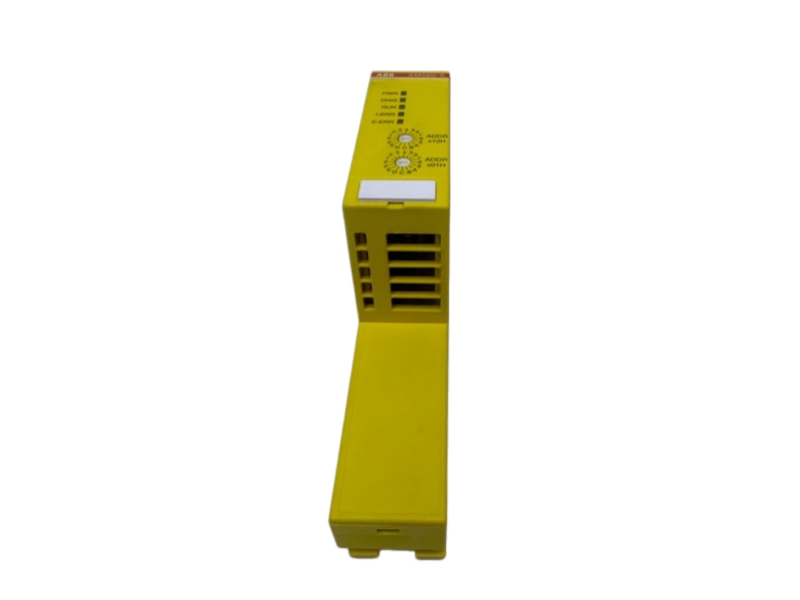

ABB SM560-S-FD-1 is an AC500-S safety CPU module with PROFIsafe V2 F-Host and F-Device functionality for one PROFIsafe network through PROFINET. It is designed for safety applications requiring SIL3 and PL e performance and operates alongside a standard AC500 CPU rather than as a stand-alone PLC. The module provides 1.3 MB of program memory, 1.0 MB of integrated data memory with retained capacity and documented high-speed safety instruction processing. It supports safety architectures where the controller must coordinate local safety logic while exchanging safety data with another F-Host. Confirm the exact suffix, project, network role and safety I/O arrangement before ordering.
| Manufacturer | ABB |
| Complete Part Number | SM560-S-FD-1 |
| Product Type | PROFIsafe Safety CPU Module |
| Series | AC500-S |
| Order Code | 1SAP286000R0001 |
| Program Memory | 1.3 MB |
| Integrated Data Memory | 1.0 MB, including 120 kB retained |
| Performance Level | PL e according to ISO 13849-1 |
| Safety Integrity Level | SIL3 according to IEC 61508, IEC 62061 and IEC 61511 |
| Safety Protocol | PROFIsafe V2 F-Host and F-Device via PROFINET |
| F-Device Network Capacity | 1 PROFIsafe network |
| Minimum Instruction Times | Binary 0.05 µs; word 0.06 µs; floating point 0.5 µs |
| Installation Position | Left-side slot of an AC500 standard CPU |
| Weight | 0.100 kg |
| Product Condition | NEW |
| Country of Origin | SWEDEN |
| Warranty | With 1 year warranty |
| Shipping | Quoted after quantity and destination review |
Operates as both PROFIsafe F-Host and F-Device through PROFINET.
F-Device functionality is configured for one PROFIsafe network.
Supports coordinated transfer of safety and standard data within the AC500-S architecture.
Match the full SM560-S-FD-1 suffix and order code. Verify the standard AC500 CPU, one-network F-Device requirement, F-Host topology, PROFINET and PROFIsafe configuration, safety project, firmware generation, installed safety I/O and left-side CPU mounting. SM560-S and SM560-S-FD-4 are different safety network configurations.
