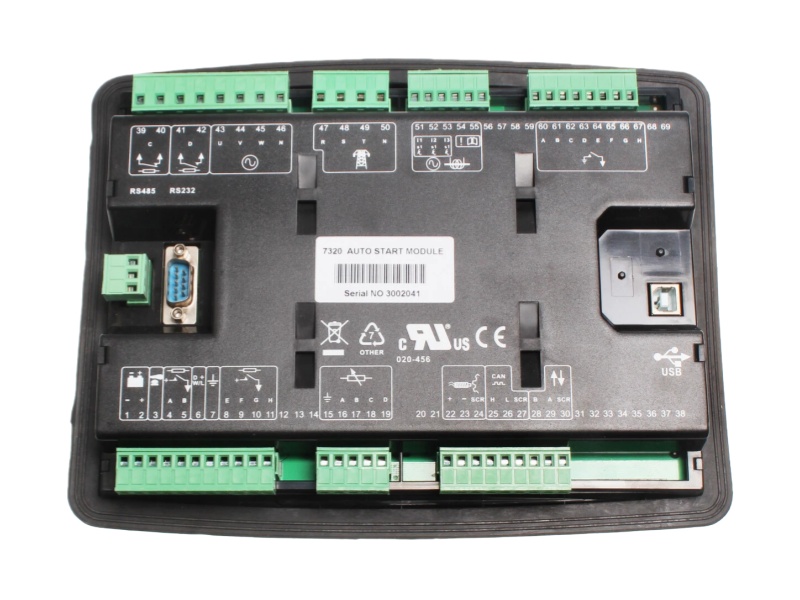

DSE7320 Overview

TheDeep Sea DSE7320 Auto Mains (Utility) Failure Control Modules is a generator controller featuring Stop/Reset and Test Modes for safe operation. It manages engine shutdown and test starts, and includes an advanced scheduler for automated exercise runs.

Features and Benefits

• Stop/Reset Mode: Clears alarms and ensures safe engine shutdown, preventing unintended restarts for enhanced operational safety.

• Test Mode (MKII): Allows manual generator start and on-load testing, facilitating reliable maintenance and performance verification.

• Automatic Load Transfer: Seamlessly manages power sources between generator and mains, ensuring continuous and stable power supply.

• Integrated Exercise Scheduler: Supports up to 16 automated start/stop schedules, promoting engine health and readiness through regular exercise runs.

• Flexible Configuration: Enables customization of schedules (7 or 28-day cycles) and load conditions via DSE Configuration Suite software.

• Clear System Status Display: Provides visual feedback on scheduler configuration and system status for straightforward monitoring and management.

FAQ

Q1: What is the purpose of the Stop/Reset Mode on the DSE7320?

A1: It clears active alarms and safely shuts down the running generator by transferring load to the mains and de-energizing the fuel supply, preventing unintended restarts.

Q2: Can I manually test the generator with the DSE7320 MKII?

A2: Yes, the Test Mode allows manual starting and on-load testing of the generator using the Start button, with automatic load transfer functionality.

Q3: How does the automatic scheduler work on the DSE7320?

A3: It supports up to 16 scheduled start/stop sequences on 7-day or 28-day cycles, configurable for on-load or off-load exercise runs via DSE Configuration Suite software.

Q4: What happens if a start signal occurs during Stop/Reset Mode?

A4: The generator remains shut down and will not restart, ensuring safe maintenance or troubleshooting without accidental activation.

Q5: Is the exercise scheduler enabled by default on the DSE7320?

A5: No, the scheduler is disabled by default and must be configured and enabled by a system designer using the DSE Configuration Suite software.
