F217904.02 Overview

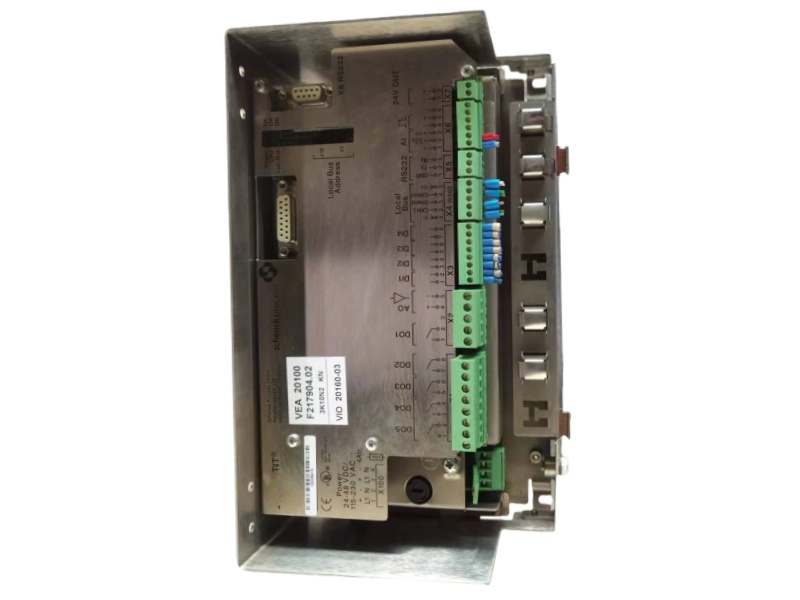

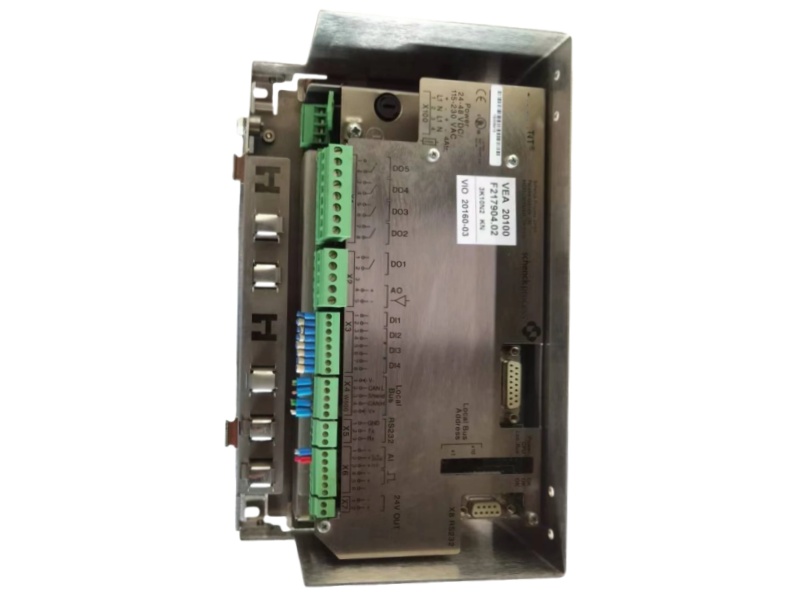

The Input/output Unit F217904.02 Schenck is a versatile I/O module offering both analog and digital interfaces, relay outputs, and communication ports for industrial control applications.

Technical Data Summary

• Digital I/O: Features 4 digital inputs and 5 relay outputs (4+1 NO contacts).

•  Analog Input: Provides 8 differential analog inputs with high accuracy of ≤±0.1% of span.

•  Communication: Includes an RS232 port and a local bus interface for connectivity.

•  Environmental: Operating temperature range is 0 to +55°C with 5-95% RH, non-condensing.

•  Physical: Compact size of 20.3x21.5x8.8cm and a light weight of 0.4kg.

FAQ

Q1: What is the primary function of the Schenck F217904.02 module?

A1: It is a versatile input/output (I/O) module designed for industrial control systems, handling both digital and analog signals.

Q2: What types of inputs and outputs does it provide?

A2: It provides 4 digital inputs, 8 differential analog inputs, and 5 relay outputs (4+1 normally open contacts).

Q3: What is its operating voltage and power consumption?

A3: It operates on a 24V DC supply and has a maximum power dissipation of 8 Watts.

Q4: What communication interfaces are available on this module?

A4: It features an RS232 communication port (X8) and a local bus interface (X4) for system integration.

Q5: What are its key environmental specifications?

A5: It operates in temperatures from 0 to +55°C and can withstand 5-95% relative humidity (non-condensing).
