PLB6001 Overview

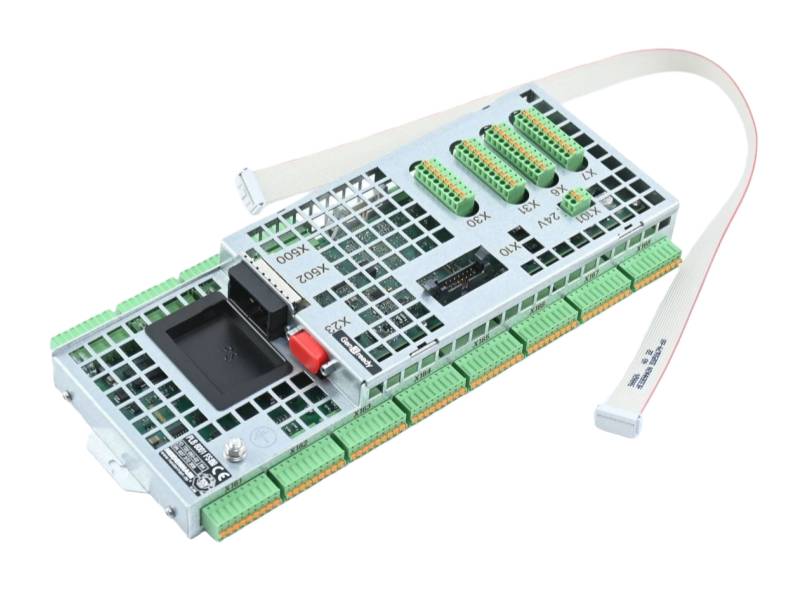

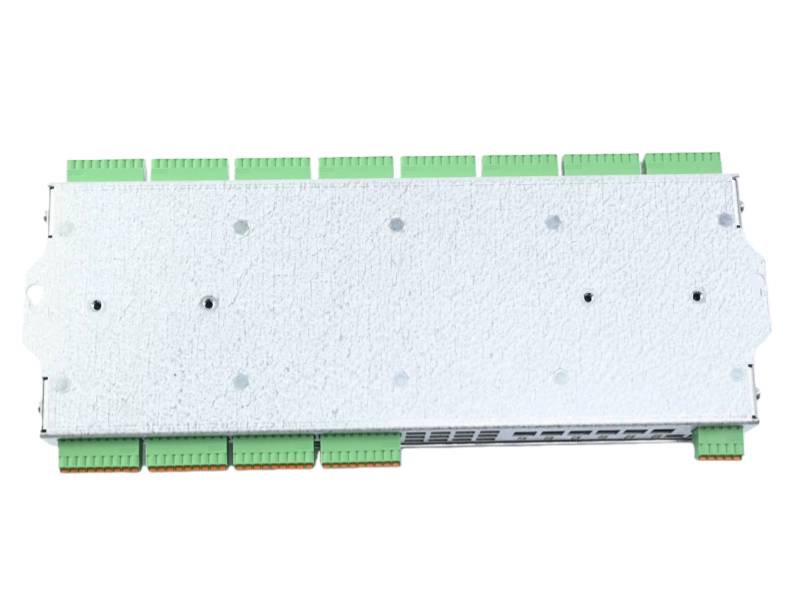

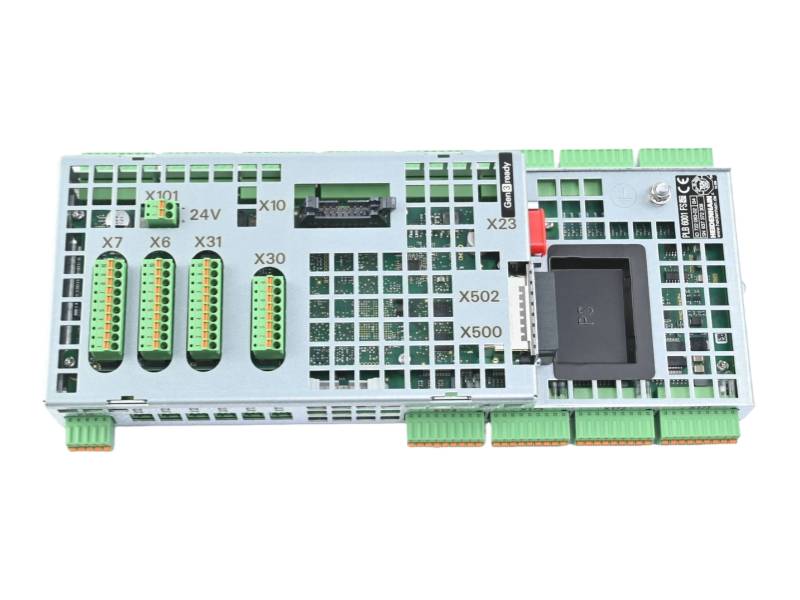

The PLB6001 HEIDENHAIN Industrial Electronics is an HSCI adapter enabling the connection of OEM-specific machine operating panels to the MANUALplus 620 control system. It provides terminals for 72 PLC inputs and 40 PLC outputs, supports handwheel connection, and can be mounted on a top-hat rail.

Environment and Certification

• Mounting Flexibility: Designed for both screw fastening and top-hat-rail installation.

• Custom Configuration: PLC input/output functions can be configured via the IOconfig PC software.

• System Integration: Requires HSCI interface connection to integrate OEM machine panels with the MANUALplus 620 control.

• Handwheel Support: Provides dedicated connection for HR series handwheels.

• I/O Variants: Offers multiple models (PLB 6001/FS) with different input configurations (e.g., 72 PLC inputs).

• Accessory Compatibility: Part of the HSCI component family for the MANUALplus 620 system.

FAQ

Q1: What is the primary function of the PLB6001?

A1: It serves as an HSCI adapter for connecting OEM-specific machine operating panels to the MANUALplus 620 control system.

Q2: How many PLC inputs and outputs does it provide?

A2: It offers terminals for 72 PLC inputs and 40 PLC outputs.

Q3: Does it support handwheel connection?

A3: Yes, it includes a dedicated connection for HR series handwheels.

Q4: How is it configured?

A4: Its PLC inputs and outputs are configured using the IOconfig PC software.

Q5: What are its mounting options?

A5: It can be installed via screw fastening or mounted on a standard top-hat rail.
