HC202500/0XX0AJ2 Overview

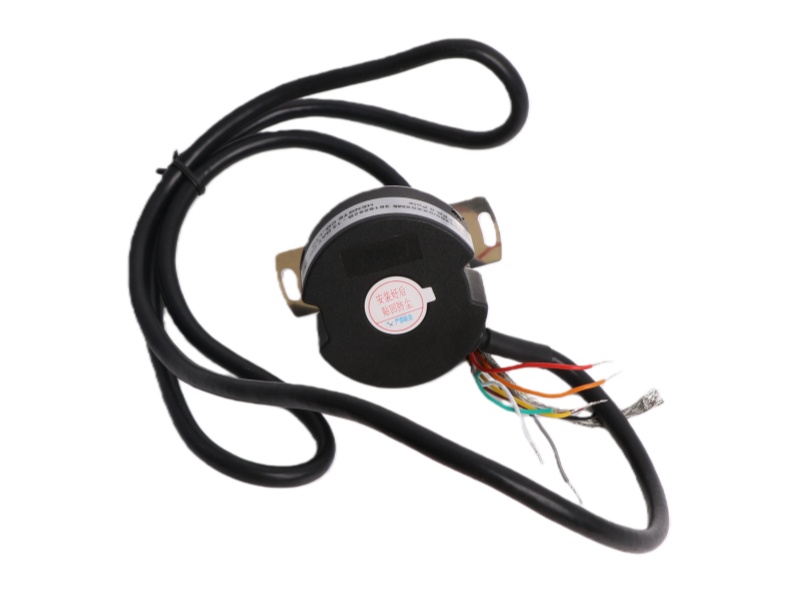

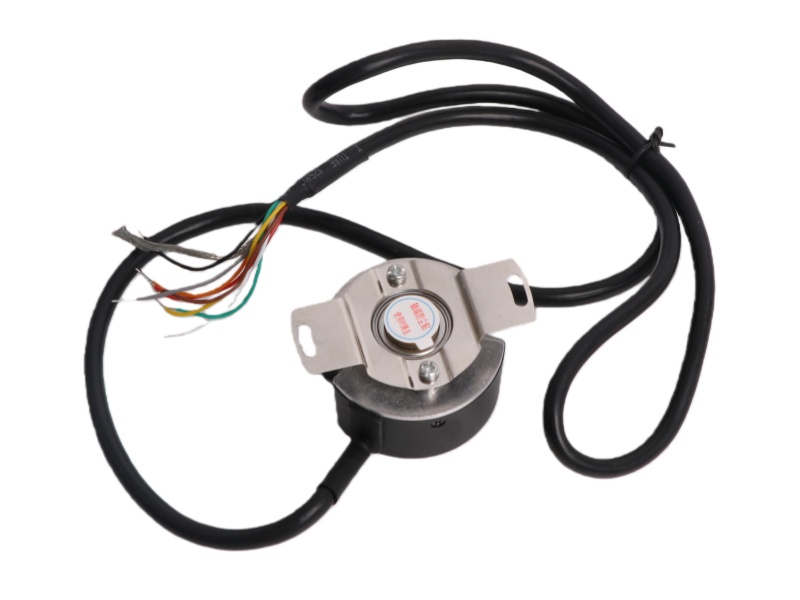

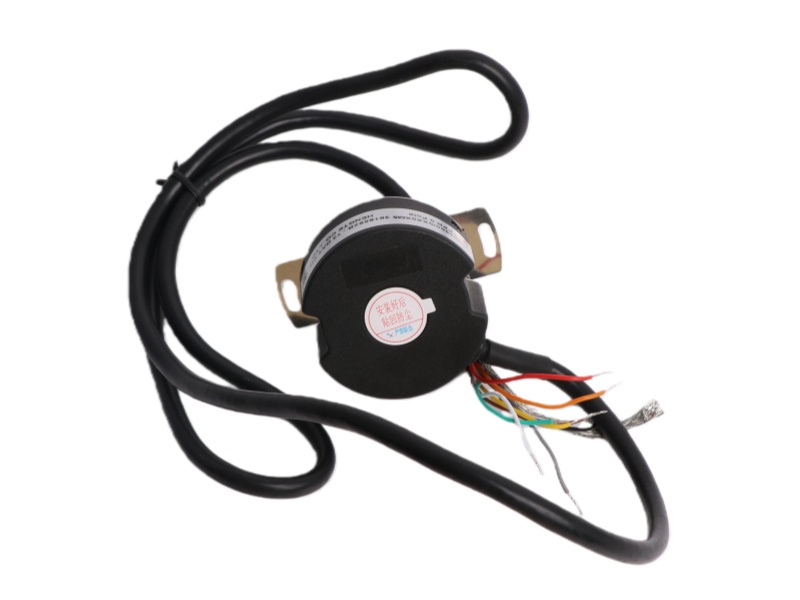

The HC202500/0XX0AJ2 Dynapar Electric Motor is a high-performance hollow shaft motor encoder. Utilizing optical technology, it offers a resolution of 2500 pulses per revolution, supports speeds up to 12000 rpm, and operates reliably within a wide temperature range.

Specifications

• Product Type & Series: A hollow shaft motor encoder from the Dynapar HC20 series, ideal for motor integration.

• Electrical Specs: Rated at 5V DC, 150mA current, and provides a 2500-pulse output per revolution.

• Performance: High-speed capability up to 12,000 rpm with a pulse frequency rating of 500 kHz.

• Physical Design: Features a 9mm hollow shaft, radial cable connection, and flange mounting.

• Construction: Made of aluminium, measuring 50mm in diameter by 36mm wide, with IP50 protection.

• Operating Range: Designed for a wide operational temperature range from 0°C to +120°C.

FAQ

Q1: What is the model number of this hollow shaft motor encoder?

A1: The model is Dynapar HC202500/0XX0AJ2, belonging to the HC20 series.

Q2: What are the key electrical specifications of this encoder?

A2: It operates at 5V DC, draws 150mA, and provides 2500 pulses per revolution with a max frequency of 500 kHz.

Q3: What is its shaft type and speed capability?

A3: It has a 9mm hollow shaft and supports speeds up to 12,000 rpm.

Q4: How is the encoder constructed and protected?

A4: It is made of aluminium with a flange mount, has IP50 rating, and uses a radial cable (25mm length).

Q5: What is the operating temperature range for this encoder?

A5: It can operate reliably in temperatures from 0°C to +120°C.
