CT-USB-CABLE SP1406 Overview

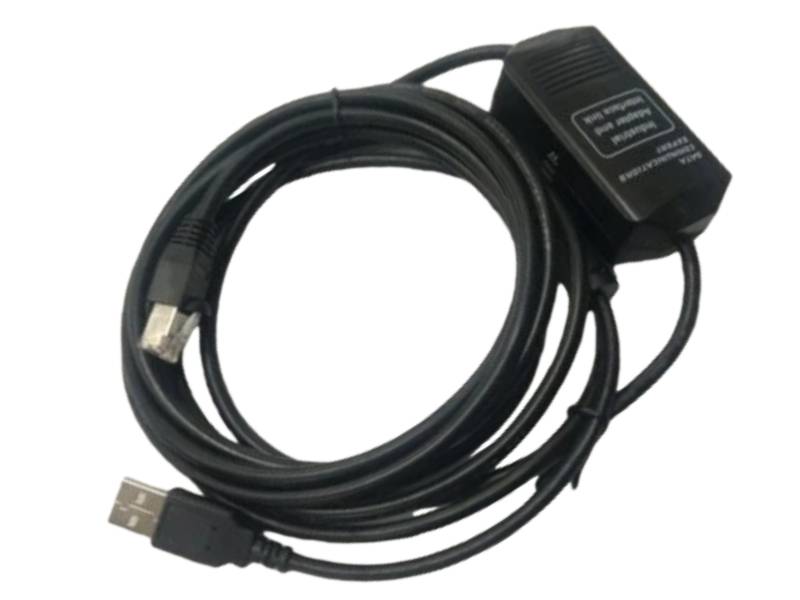

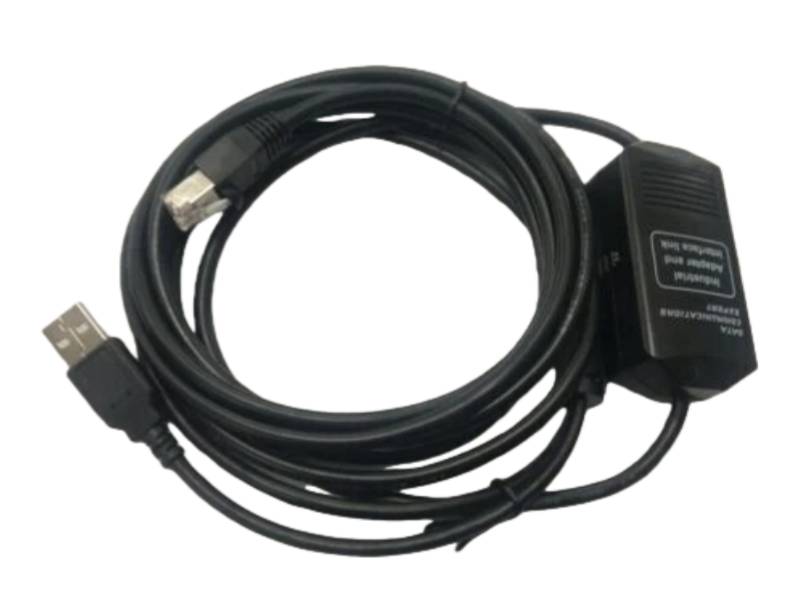

The CT-USB-CABLE SP1406 AIENSN Communication Cable is a USB to RS485 converter cable for direct Modbus RTU connection between a drive and a PC.

Features and benefits

• Direct USB to RS485 Conversion: Enables direct connection from a PC's USB port to the drive's Modbus RTU (RS485) port.

• Simplified PC Communication: Provides a convenient link for drive configuration and programming using software like CTSOFT.

• Essential for Configuration: This cable is listed as a key accessory under "Configuration and Programming."

• Direct Plug-in Design: Eliminates the need for separate converters, ensuring a streamlined setup.

• Compact Solution: Offers a space-saving and economical way to establish a programming interface.

• Standard Functionality: Supports the fundamental communication required for parameter management and drive setup.

FAQ

Q1: What is the primary function of the CT-USB-CABLE SP1406?

A1: It is a converter cable for direct USB to RS485 (Modbus RTU) communication, connecting a PC to a drive's programming port.

Q2: What does this cable connect to on the drive?

A2: It connects directly to the drive's Modbus RTU (RS485) communication port for configuration and programming.

Q3: Is special software needed to use this cable?

A3: Yes, it is designed to work with configuration software like CTSOFT for drive setup and parameter management.

Q4: Can this cable be used to connect a keypad to the drive?

A4: No. For keypad connections (like the LCD keypad), specific RJ45 cables (SP-LCD-485-xxx) are required.

Q5: Is this cable included with the Unidrive SP drive?

A5: It is not standard. The text notes it "Can be ordered separately" as an accessory for configuration and programming.
