SM-KEYPAD STDO32 Overview

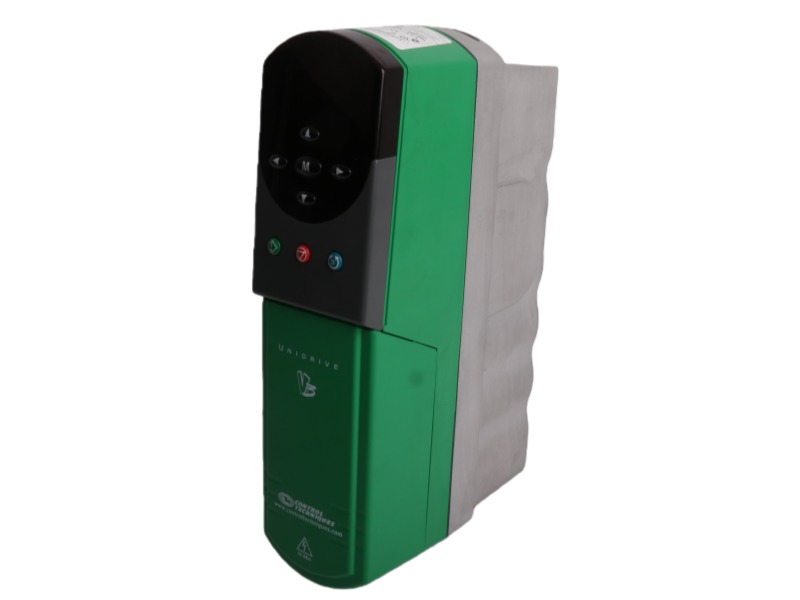

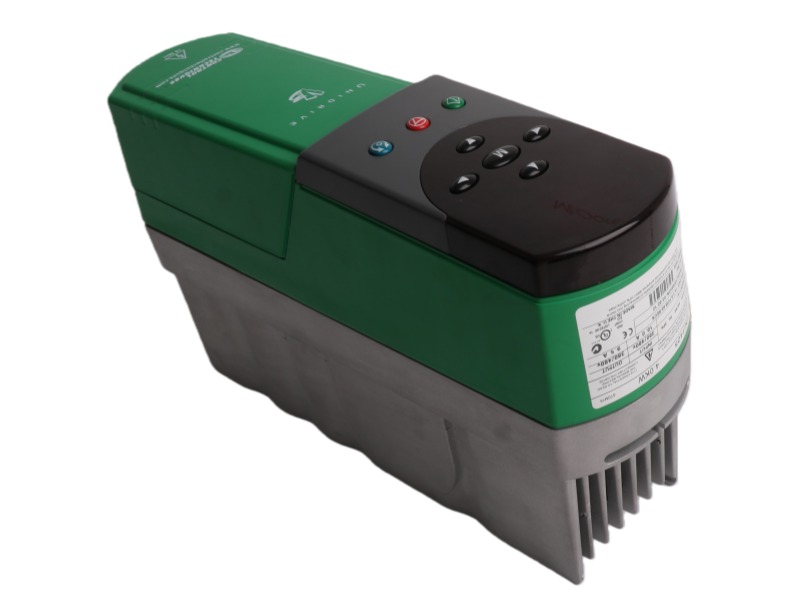

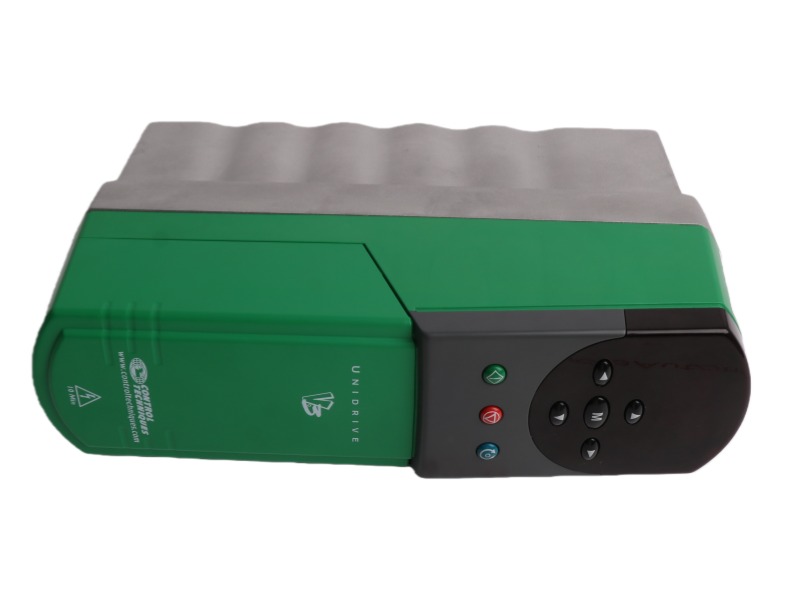

The Control Techniques SM-KEYPAD STDO32 serves as a dedicated operator interface for Unidrive SP and other drives, featuring a clear 7-segment LCD and tactile buttons for intuitive parameter navigation and configuration.

Enviromental Strength

• Wide Temperature Range: Operates reliably from 0°C to +50°C.

• Rugged Storage: Withstands storage in temperatures from -20°C to +70°C.

• Robust Construction: Designed for durable use in demanding industrial automation environments.

• Compliant Design: Meets key international standards including UL, CE, and RoHS.

• Simple Power: Direct 5V DC supply from the drive simplifies installation.

• Flexible Mounting: Supports both direct plug-in and remote mounting up to 3 meters for adaptable placement.

FAQ

Q1: What are the main functions of the SM-KEYPAD STDO32?

A1: Its main functions include configuring the drive, editing parameters, and real-time monitoring of operational data.

Q2: How many buttons does this keypad have, and what is their purpose?

A2: It has six buttons designed for navigation and parameter input, allowing straightforward user interaction.

Q3: What type of display does the SM-KEYPAD STDO32 feature?

A3: It features a clear 7-segment LCD display for information viewing.

Q4: How is the keypad mounted, and what is the maximum remote mounting distance?

A4: It supports both direct plug-in and remote mounting with a cable, which can extend up to 3 meters for flexible installation.

Q5: Does the keypad come with a backlight for low-light conditions?

A5: No, the SM-KEYPAD STDO32 does not have a backlight feature.
