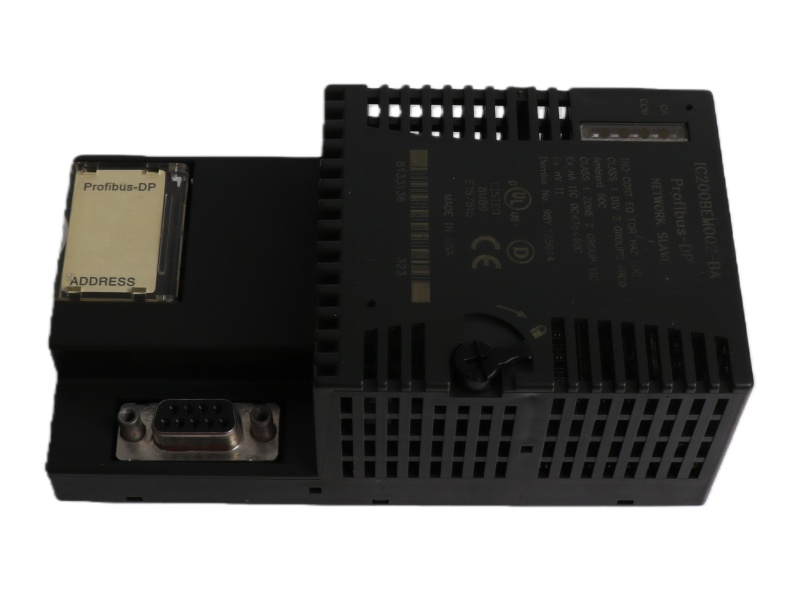

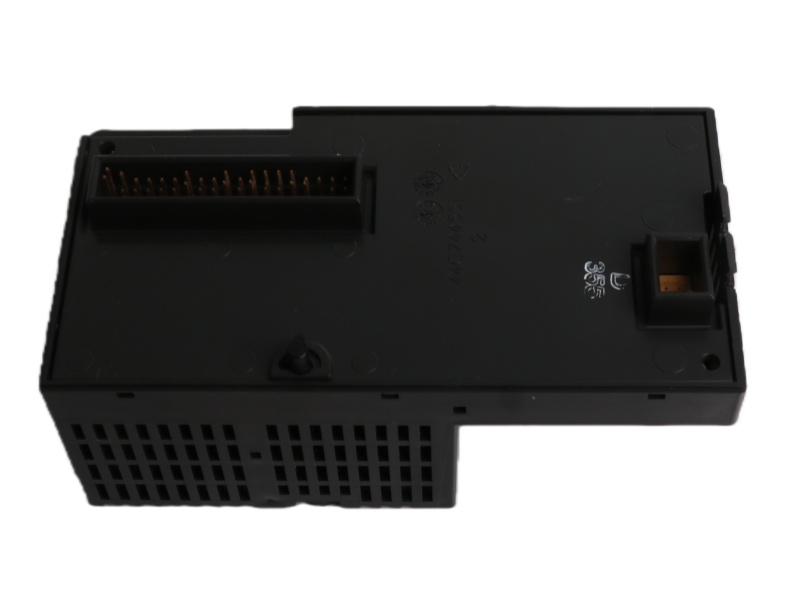

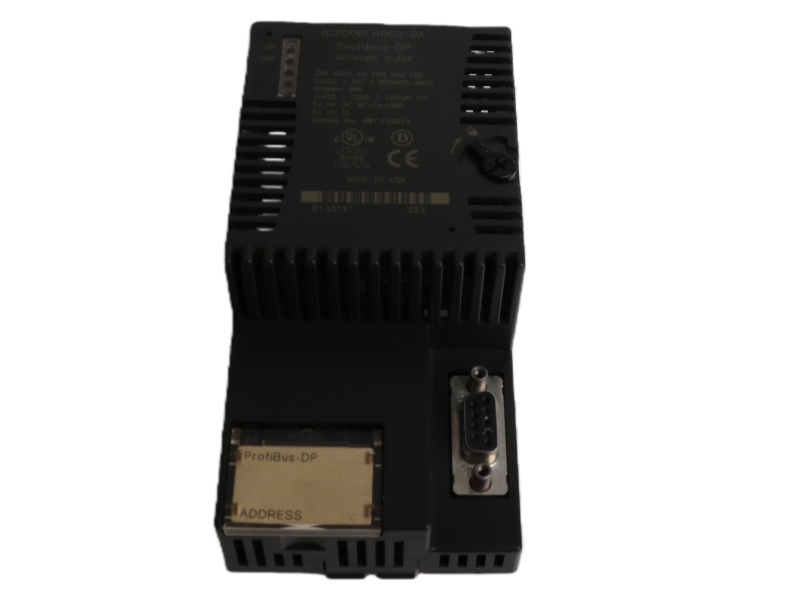

IC200BEM002 Overview

General Electric IC200BEM002 PLC network communications Profibus-DP slave is a Profibus-DP network slave module for PLC systems. It supports up to 32 stations (125 with repeaters) and features a 9-pin D-sub connector, handling 384 bytes of I/O data with a configurable baud rate.

Technical Data Summary

• Product Type: Profibus-DP network slave communication module.

• Network Specs: Baud rate 9.6K-12M; supports 32 stations, up to 125 with repeaters.

• Data Capacity: Handles 384 bytes of I/O data.

• Physical Interface: 9-pin D-sub connector, 135-165 Ω impedance.

• Power Consumption: 460 mA from the 5V bus.

• Installation: DIN rail mountable, open enclosure for indoor use only.

FAQ

Q1: What is the main function of the GE IC200BEM002 module?

A1: It is a Profibus-DP network slave communication module for the VersaMax series, enabling PLCs to connect to a Profibus network for data exchange.

Q2: What is its network data rate and station capacity?

A2: It supports data rates from 9.6 Kbaud to 12 Mbaud and can connect up to 32 stations directly, or 125 stations when using a repeater.

Q3: What type of connector does it use?

A3: It uses a standard 9-pin D-sub connector for network cabling.

Q4: What is its power requirement?

A4: The module consumes 460 mA from the system's 5V power bus.

Q5: What are its key installation specifications?

A5: It is DIN rail mountable, has an open enclosure for indoor use only, and requires a wire gauge of less than 0.64mm.
