IC693DSM314 Overview

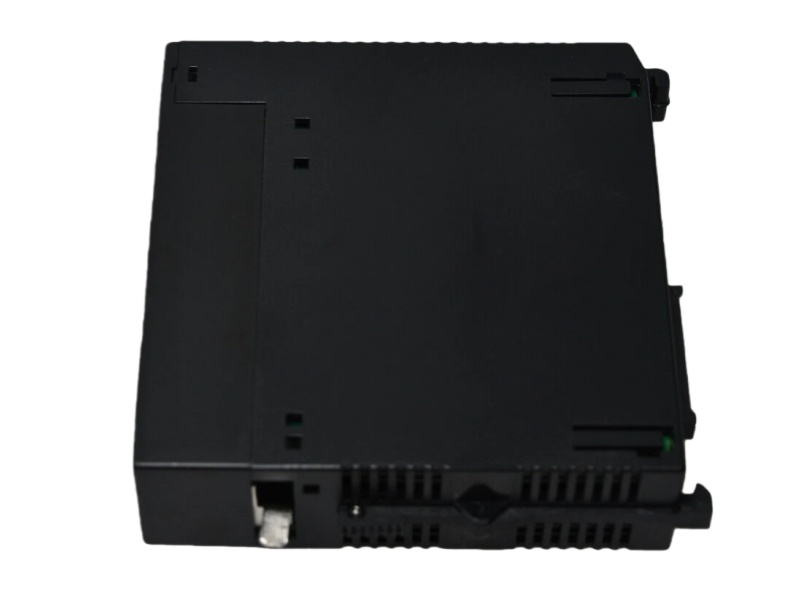

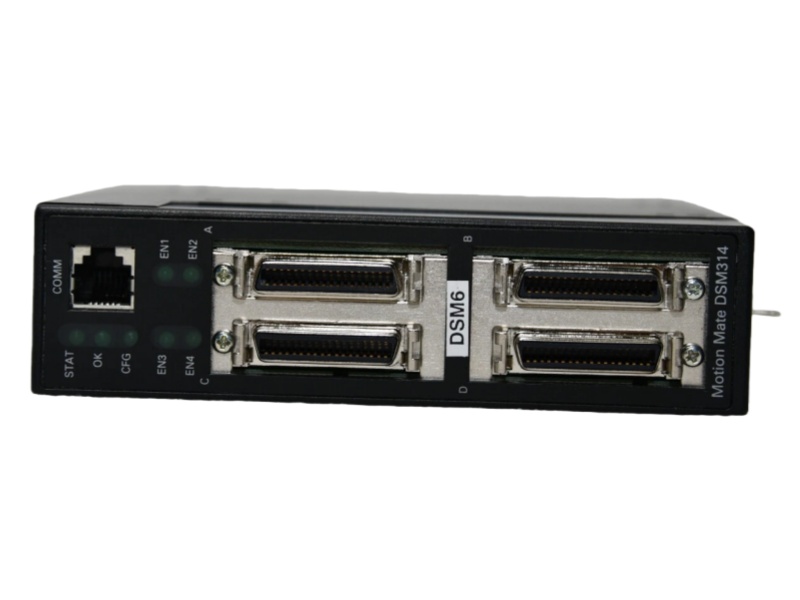

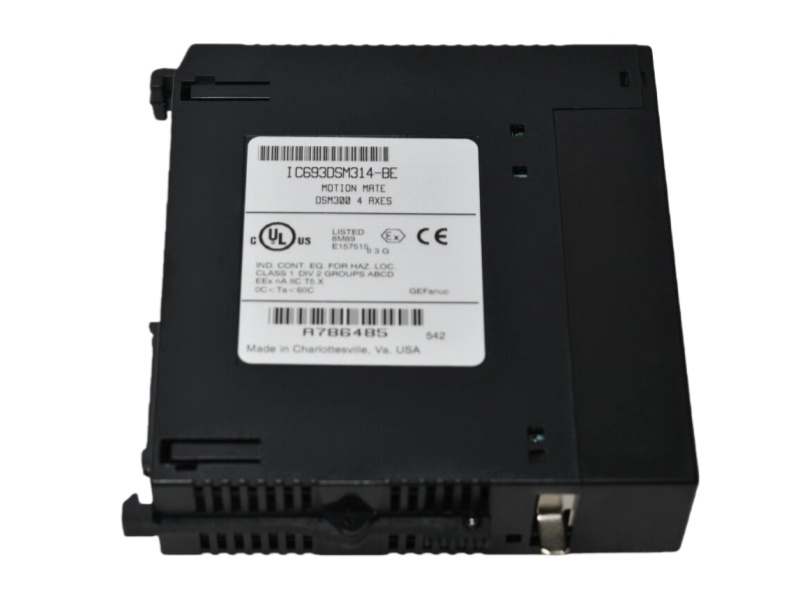

The GE 90-30 Series PLC IC693DSM314 is a 4-axis motion control module for Series 90-30 PLCs. It features both digital and analog operation, processes blocks in under 5ms, and stores 10 programs with 40 subroutines in non-volatile memory.

Application

• Multi-Axis Control: Manages synchronized motion for up to 4 axes in industrial automation.

• Precision Positioning: Handles high-resolution position, velocity, and acceleration programming.

• Program Storage: Stores up to 10 programs and 40 subroutines for complex, repeatable motion sequences.

• PLC Integration: Seamlessly integrates with GE Fanuc Series 90-30 programmable logic controllers.

• Rapid Execution: Executes block commands in under 5 milliseconds for responsive real-time control.

• Robust Operation: Functions reliably in standard industrial temperature environments (0 to 60°C).

FAQ

Q1: What is the GE IC693DSM314 used for?

A1: It is a 4-axis motion control module for synchronizing and controlling industrial machinery.

Q2: How many motion programs can it store?

A2: It has non-volatile storage for 10 main programs and 40 subroutines.

Q3: What is its block processing time?

A3: It processes motion blocks in less than 5 milliseconds for fast, responsive control.

Q4: Does it support both digital and analog operation?

A4: Yes, it supports operation in both digital and analog control modes.

Q5: What is its operating temperature range?

A5: It operates reliably in temperatures from 0 to 60 degrees Celsius (32 to 140°F).
