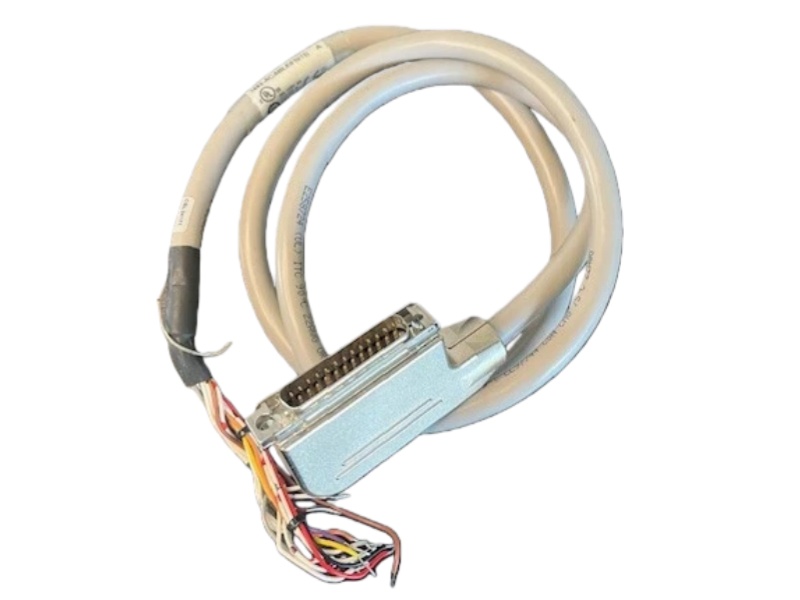

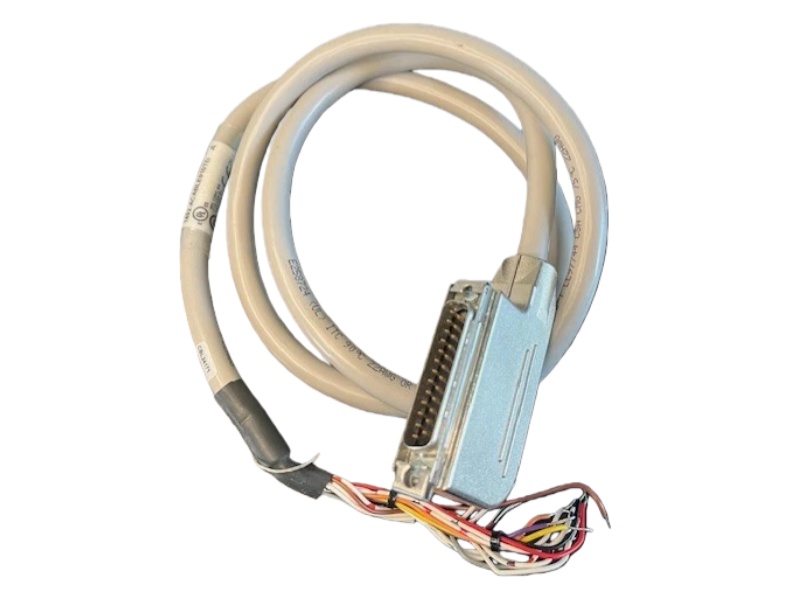

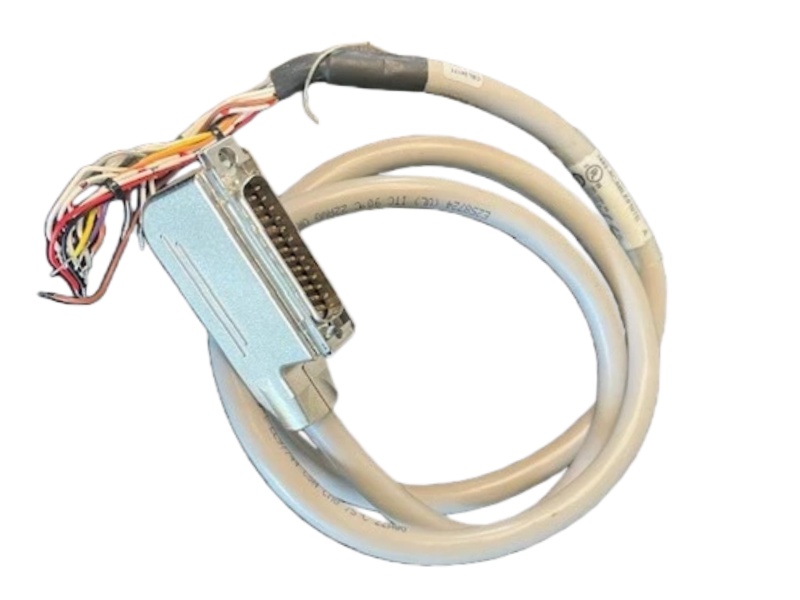

The 1492-ACABLE010TB Allen Bradley Pre-wired Cable is a 1-meter analog cable designed for connecting Bulletin 1756 I/O modules, including analog, RTD, and thermocouple modules, to interface terminals. It provides a reliable and precise signal transmission link within ControlLogix systems.

Features and Benefits

Specific Application: Designed exclusively for Allen-Bradley Bulletin 1756 ControlLogix analog I/O, RTD, and thermocouple modules.

Standard Length: Offers a 1-meter fixed length, suitable for typical panel wiring distances.

Reliable Connectivity: Ensures a dedicated, high-integrity physical link between the PLC module and its terminal base.

Simplified Integration: Eliminates the need for custom wiring, providing a plug-and-play connection solution.

Signal Integrity: Facilitates accurate data transmission for sensitive analog and temperature signals.

System Compatibility: Guarantees correct pinout and mechanical fit, reducing installation errors in ControlLogix systems.

FAQ

Q1: What is the primary function of the Allen-Bradley 1492-ACABLE010TB cable?

A1: It is an analog interface cable used to connect Bulletin 1756 analog, RTD, or thermocouple I/O modules to their corresponding terminal bases.

Q2: What is the length of this cable?

A2: The cable has a standard fixed length of 1 meter.

Q3: Which specific ControlLogix modules is this cable compatible with?

A3: It is designed for use with Allen-Bradley Bulletin 1756 series analog I/O, RTD, and thermocouple input modules.

Q4: What is a key benefit of using this pre-configured cable?

A4: It ensures a reliable connection and maintains signal integrity for sensitive analog and temperature measurements.

Q5: Does this cable simplify system installation?

A5: Yes, it provides a plug-and-play solution, eliminating the need for custom wiring and reducing potential installation errors.
