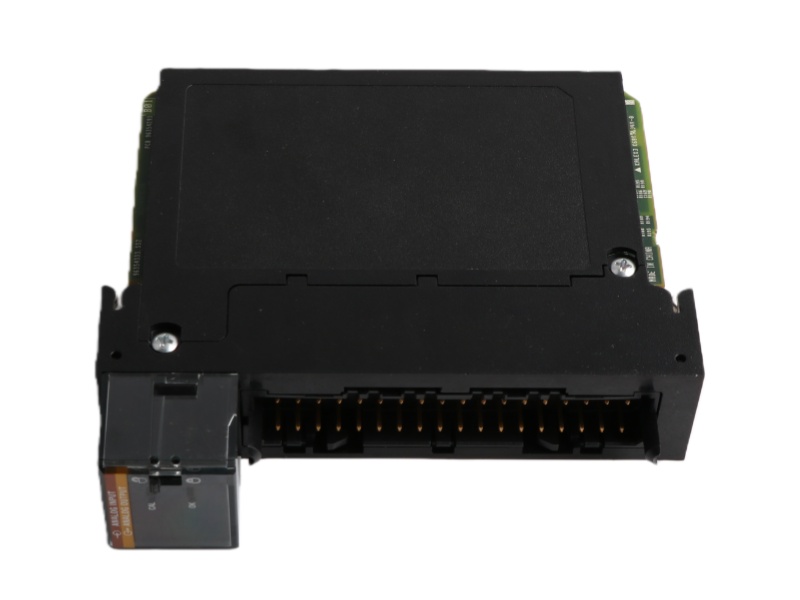

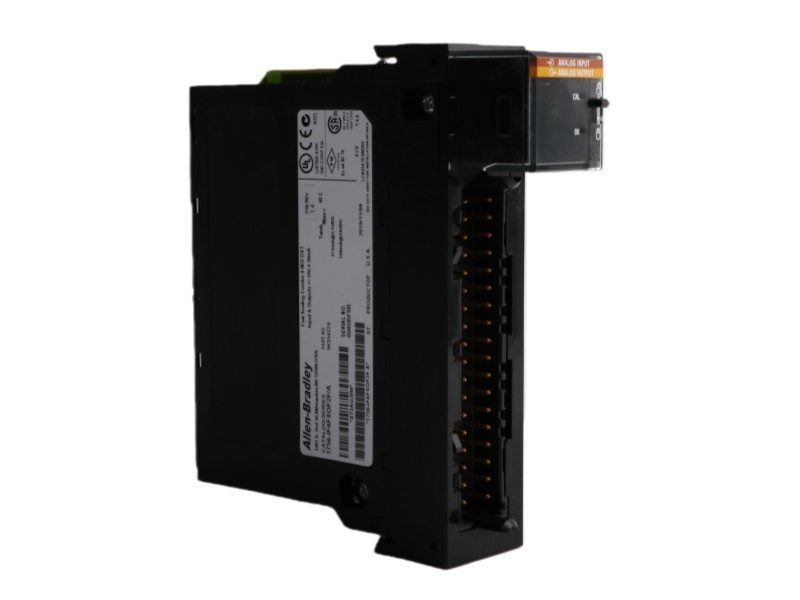

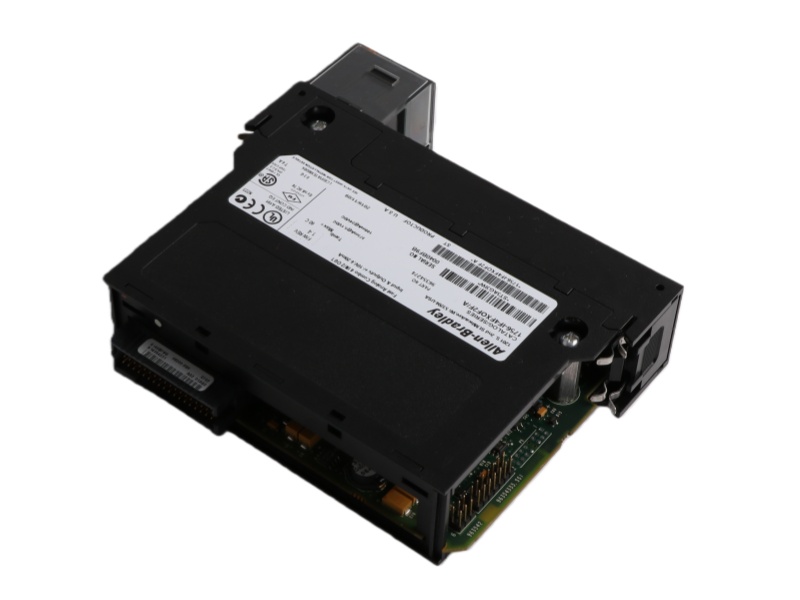

The ROCKWELL 1756-IF4FXOF2F ControlLogix Analog I/O Modules is a high-speed analog I/O module for ControlLogix, featuring four differential inputs and two configurable current/voltage outputs for precise motion control applications.

Features and Benefits

High-Speed I/O: Features four sub-millisecond differential inputs and two configurable outputs for fast, precise motion control and closed-loop applications.

Flexible Signal Support: Inputs accept common voltage and current ranges (±10V, 0-20mA, etc.), offering wide sensor compatibility.

Versatile Outputs: Two outputs can be independently configured as voltage (±10V) or current (0-20mA) signals.

High Resolution: Provides up to 14-bit resolution for accurate signal measurement and control.

ControlLogix Integration: Seamlessly integrates into the ControlLogix backplane for reliable system communication and data handling.

Removable Terminals: Compatible with 1756-TBCH/TBS6H terminal blocks for simplified wiring and maintenance.

FAQ

Q1: What type of module is the 1756-IF4FXOF2F, and what is its main purpose?

A1: It is a ControlLogix High-Speed Analog Combination I/O Module, primarily used for fast, precise closed-loop control in motion and process applications.

Q2: What makes this module suitable for high-speed control applications?

A2: It features four differential inputs and two outputs with sub-millisecond update rates and synchronized sampling across multiple modules.

Q3: How does the module protect against wiring faults on the input side?

A3: Its inputs include overvoltage protection (30 VDC) and provide over/underrange indication to alert the control system of signal faults.

Q4: What terminal blocks are compatible with this module?

A4: It is compatible with the 1756-TBS6H or 1756-TBCH Removable Terminal Block (RTB) housings for easy wiring and maintenance.

Q5: What is a key feature of its analog output channels?

A5: The outputs are configurable for either voltage (±10V) or current (0-20mA) and include electronic short-circuit and overvoltage protection for reliability.
