2711R-T7T Product datasheet

2711R-T7T Functional Description

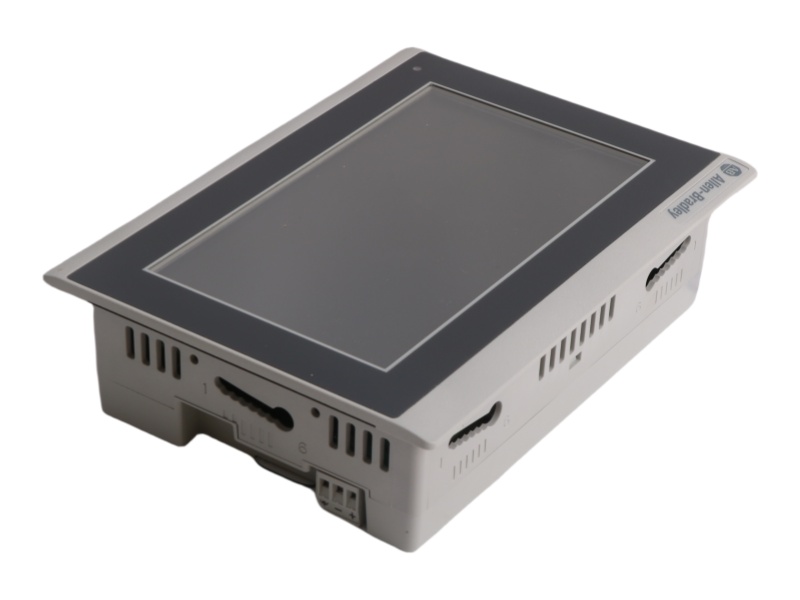

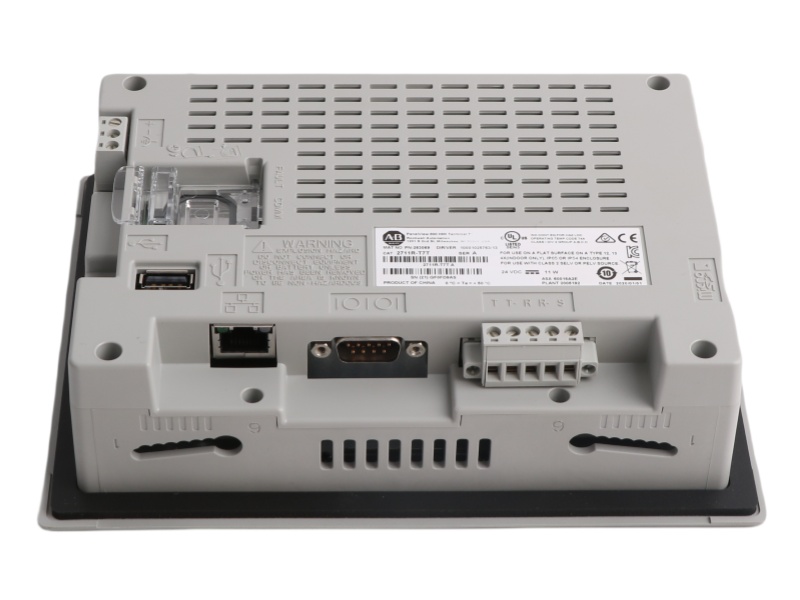

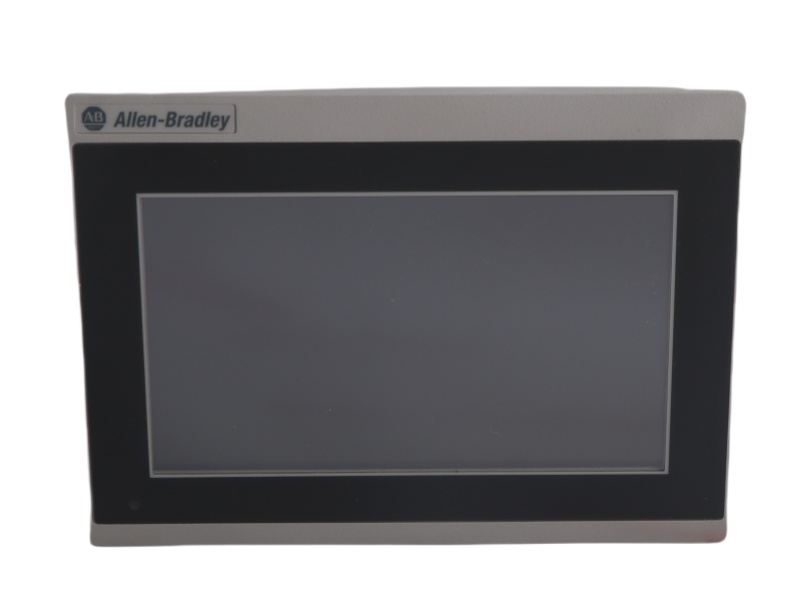

The Allen-Bradley PanelView 800 Terminal 7 Inch Terminals 2711R-T7T is a 7-inch PanelView 800 Graphic Terminal designed for industrial automation.The Touch Screen TFT 2711R-T7T ROCKWELL features a high-resolution 800 x 480 WVGA color touchscreen with resistive touch input, supporting both vertical and horizontal orientations. Powered by an 18–32V DC supply, it offers robust connectivity with Ethernet, RS232, RS422/485, and USB ports, enabling seamless integration with Allen-Bradley controllers like MicroLogix, CompactLogix, and Micro 800.

The 2711R-T7T PanelView 800 HMI Terminals boasts a 65K-color TFT LCD with an LED backlight rated for 40,000+ hours of operation. Its resistive touchscreen withstands 1 million actuations, ensuring long-term reliability. The terminal includes 256 MB Flash + 256 MB DDR RAM, expandable via a microSD slot (supports up to 32GB industrial-grade cards). Additional peripherals like keyboards and mice can be connected via its USB 2.0 port.

Supporting multiple protocols (DF1, Modbus, CIP, Ethernet/IP), the AB 2711R-T7T PanelView 800 Graphic Terminal ensures flexible communication with PLCs and SCADA systems. It includes a real-time clock with battery backup and recipe storage for 50 batch files, ideal for process control. Its 10/100 Mbps Ethernet and serial ports (RS232/RS422/485) facilitate easy data exchange in harsh industrial environments.

The 2711R-T7T Allen Bradley PanelView is built for rugged conditions, with an operating temperature range of 0–50°C and resistance to vibration (2G) and shock (15G operating, 30G non-operating). Its compact design (5.67 x 7.75 x 2.13 inches, 1.44 lbs) and IP65-rated front panel make it suitable for demanding applications. With low power consumption (11W max) and 34 BTU/hr heat dissipation, it ensures stable performance in diverse industrial settings.
