IC200BEM002 Overview

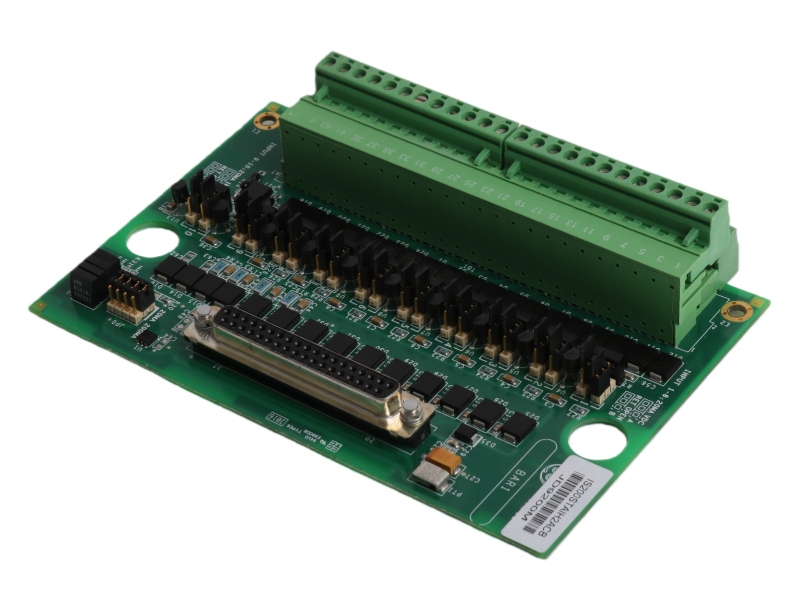

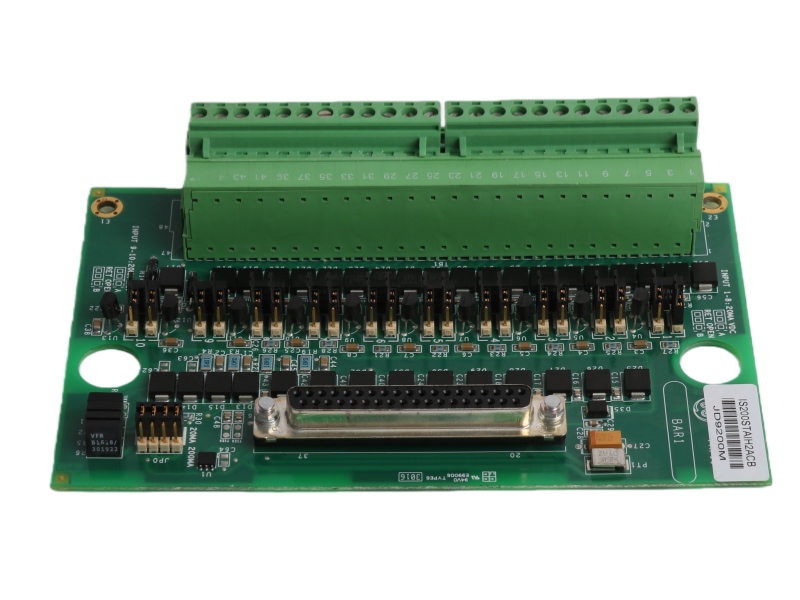

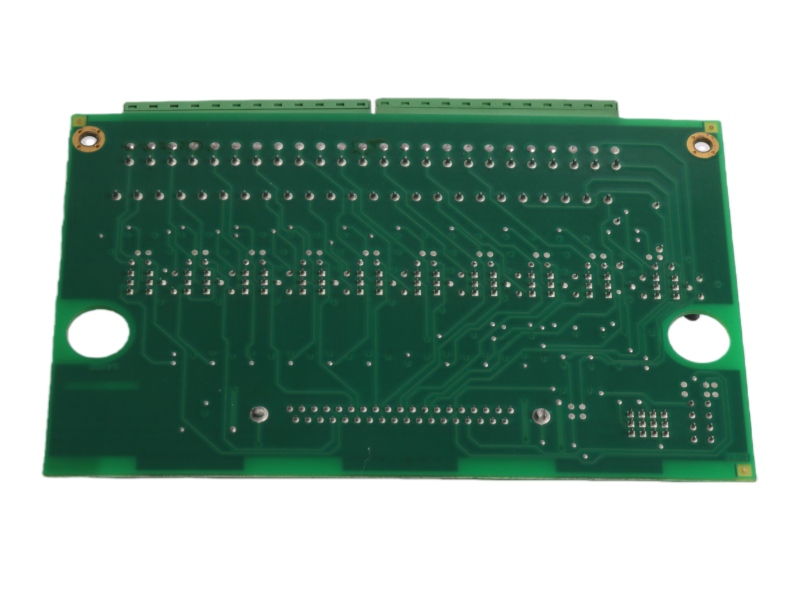

The Mark VIE terminal board GE IS230STAIH2A is a compact, surface-mount analog input terminal board for the Mark Vle control system, designed for reliable operation in industrial environments.

Features and benefits

• Compact SMD Terminal Board: A surface-mount analog I/O board for GE's Mark Vle control system.

• I/O Channels: Features 10 configurable analog inputs and two analog outputs (0-20 mA).

• Wide Temp Range: Operates reliably from -30°C to +65°C.

• High-Density Wiring: Uses Euro-block terminal blocks for secure connections.

• Enhanced Diagnostics: Integrated ID chip aids in system identification and maintenance.

• Industrial Simplex Design: Configured for independent, reliable operation in industrial environments.

FAQ

Q1: What is the primary function of the IS200STAIH2ACB board?

A1: It is a compact analog input terminal board for the GE Mark Vle system, handling 10 inputs and 2 outputs.

Q2: What analog output ranges does this board support?

A2: It supports 0-20 mA standard, with one output jumper-configurable for 0-200 mA.

Q3: Does this board offer redundant operation?

A3: No, it is a simplex board, but system-level redundancy can be achieved through other means.

Q4: How does the board aid in maintenance and diagnostics?

A4: An on-board ID chip provides serial number and revision data to the controller for easy identification.

Q5: What type of terminal connections does it use?

A5: It uses high-density Euro-block type terminal blocks for secure and efficient wiring.
