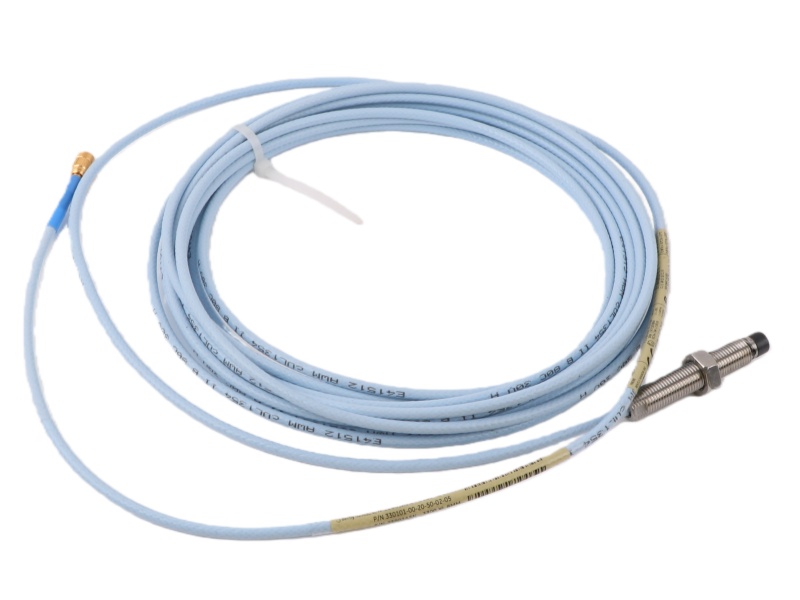

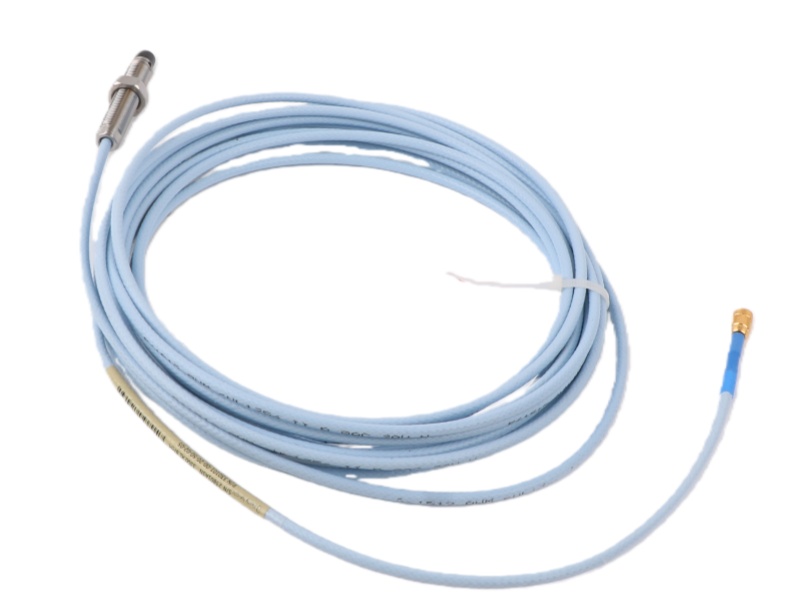

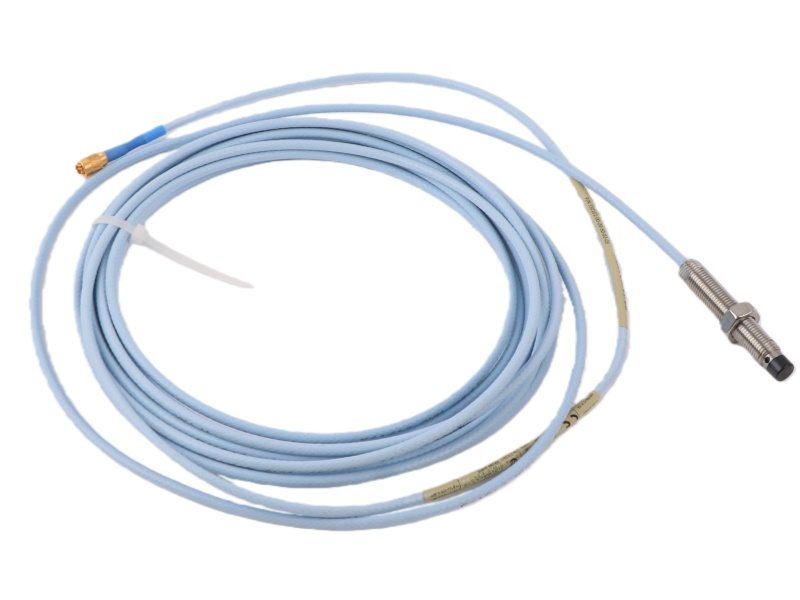

The 3300 XL 8mm Proximity Transducer Bently Nevada 330101-00-20-20-02-CN is a versatile 8 mm proximity probe with a 3/8-24 UNF thread and a 2.0-meter cable. It features a standard ClickLoc connector, CSA/ATEX/IECEx approvals, and is fully interchangeable within both XL and non-XL 3300 series systems.

Specifications

Product Model: 330101-00-20-20-02-CN, an 8 mm proximity probe.

Thread & Length: 3/8-24 UNF thread, 2.0-inch case length, 0.0-inch unthreaded length.

Cable: 2.0-meter (6.6 ft) standard cable with a ClickLoc connector.

Weight & Approvals: Weighs 0.05 kg; certified for CSA, ATEX, and IECEx.

Compatibility: Electrically/physically interchangeable with non-XL 3300 series components.

System Note: Mixing XL/non-XL components limits performance to the non-XL system specifications.

FAQ

Q1: What are the key physical dimensions of this probe?

A1: It has an unthreaded length of 0.0 inches and an overall case length of 2.0 inches.

Q2: How long is the attached cable?

A2: It is equipped with a standard 2.0-meter (6.6-foot) cable with a miniature coaxial ClickLoc connector.

Q3: Is this probe approved for hazardous locations?

A3: Yes, it is certified with CSA, ATEX, and IECEx approvals for use in explosive atmospheres.

Q4: Is it compatible with older 3300 systems?

A4: Yes, the 3300 XL 8 mm components are physically and electrically interchangeable with non-XL 3300 series 5 mm and 8 mm components.

Q5: Does mixing XL and non-XL components affect performance?

A5: Yes, mixing XL and non-XL system components limits the overall system performance to the specifications of the older, non-XL transducer system.
