ABB S500-eCo Measurement Module
Two configurable resistance-temperature inputs with 16-bit signed resolution for precise temperature and resistance acquisition.

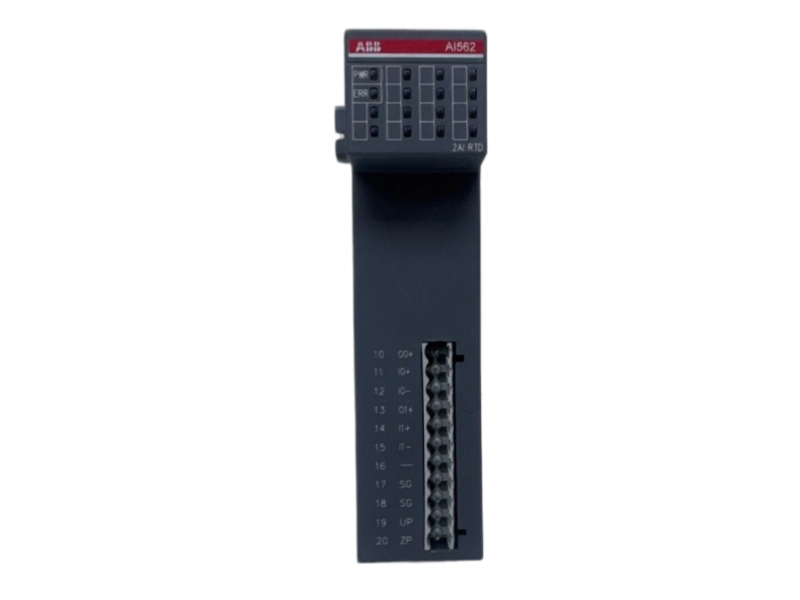

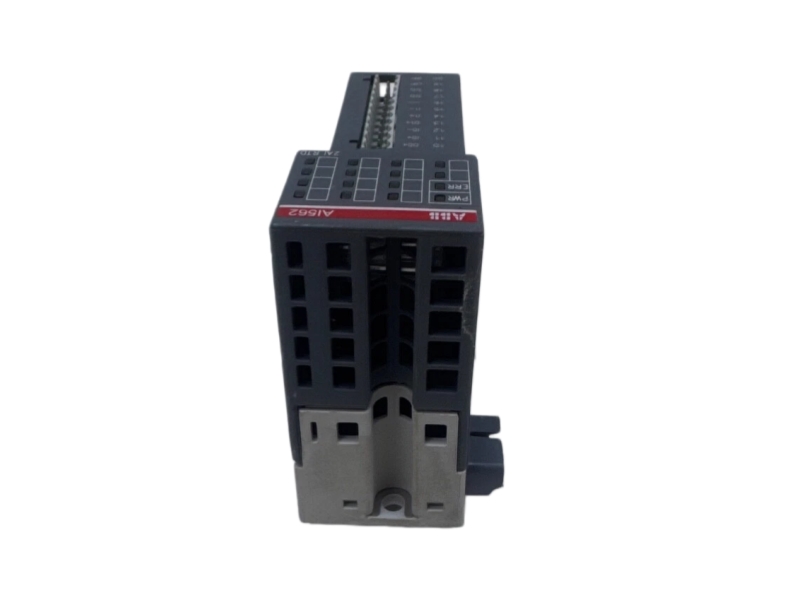

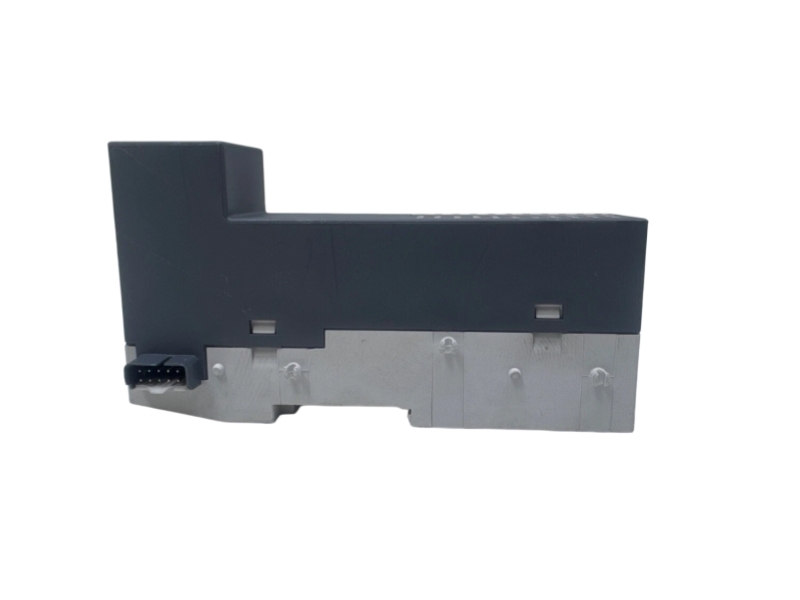

ABB AI562 is an S500-eCo analog input module designed for resistance temperature detector and resistance measurements in modular automation systems. The module provides two configurable RTD inputs arranged in one group and processes values with 16-bit resolution including sign. It connects through the I/O bus and uses a removable 11-pin terminal block that must be ordered separately. LED indicators report module power and error status. AI562 suits maintenance, expansion and replacement work where accurate temperature input is required. Before ordering, compare the type code AI562, order code 1TNE968902R1102, terminal block choice, sensor range, wiring method and installed system configuration.
| Manufacturer | ABB |
|---|---|
| Complete Part Number | AI562 |
| ABB Order Code | 1TNE968902R1102 |
| Product Type | RTD analog input module |
| Series | S500-eCo |
| Input Configuration | 2 configurable RTD inputs in 1 group |
| Resolution | 16 bits including sign |
| Terminal Interface | Removable 11-pin terminal block, ordered separately |
| Status Indicators | 1 green power LED and 1 red error LED |
| Dimensions | 34 × 135 × 84.2 mm |
| Weight | 0.121 kg |
| Product Condition | NEW |
| Country of Origin | SWEDEN |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping terms are stated in the written quotation. |
Condition, origin and warranty are seller-provided commercial information and are not presented as manufacturer commitments.
Match the supported sensor and resistance range.
Confirm conductor arrangement, shielding and grounding.
Configure the channel and verify diagnostics in the PLC project.
Pt100, Pt1000, Ni100, Ni1000 and 150 Ω or 300 Ω resistance measurements.
Internal circuitry is supplied through the I/O bus; AI562 adds 5 mA to the 24 V DC supply demand.
Use an 11-pin TA563-11, TA564-11 or TA565-11 terminal block according to the required connection method.
For cable lengths above 20 m, use shielded and grounded cable with appropriate equipotential bonding.
Confirm the complete type code AI562 and ABB order code 1TNE968902R1102. Compare the installed S500-eCo system, I/O bus arrangement, sensor type, resistance range, terminal block, conductor configuration, cable shielding and available panel space. Terminal blocks are ordered separately. Isolate all supply and process voltages before connecting, disconnecting or replacing the module.
Send clear photographs of the original module label, terminal block and surrounding installation when requesting a compatibility review.
What is the complete ABB order code for AI562?
The official order code for the AI562 two-input RTD module is 1TNE968902R1102.
Which sensors can AI562 measure?
ABB lists Pt100, Pt1000, Ni100, Ni1000 and resistance ranges of 150 Ω and 300 Ω.
Is the terminal block included with AI562?
No. The compatible removable 11-pin terminal block must be selected and ordered separately.
What should be checked before replacing an installed module?
Check the complete order code, S500-eCo system arrangement, RTD type, wiring method, terminal block and label information.
Can AI562 be shipped internationally?
Yes. Destination, documentation, packing method, shipment terms and tracking are stated in the written quotation.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
From model check to tracked dispatch
Our workflow is built around exact part-number control, documented condition checks and protective handling. Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only.
Model and suffix verification, condition confirmation and technical compatibility review are completed against the information supplied with the inquiry.
Product and label photo confirmation helps align the offered AI562 module, order code, visible condition and terminal arrangement with the request.
Protective packaging is selected for industrial electronic modules, with internal cushioning and outer-carton protection appropriate to the agreed shipment method.
Worldwide shipping, shipment tracking and customs documentation are arranged according to the written quotation and destination requirements.
Written warranty terms, the return authorization process and after-sales response details are supplied with the commercial documentation.
✓ Complete model and suffix
✓ Offered condition
✓ Compatibility information
✓ Product and label photographs
✓ Protective packing method
✓ Shipment and customs documents
Inventory and delivery time are not promised until the exact item, quantity, destination and shipment terms are stated in a written quotation.
Include the complete model, ABB order code, quantity, destination country and clear label photographs.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
