8 digital inputs, 8 digital outputs and 8 configurable digital input/output channels for distributed automation integration.

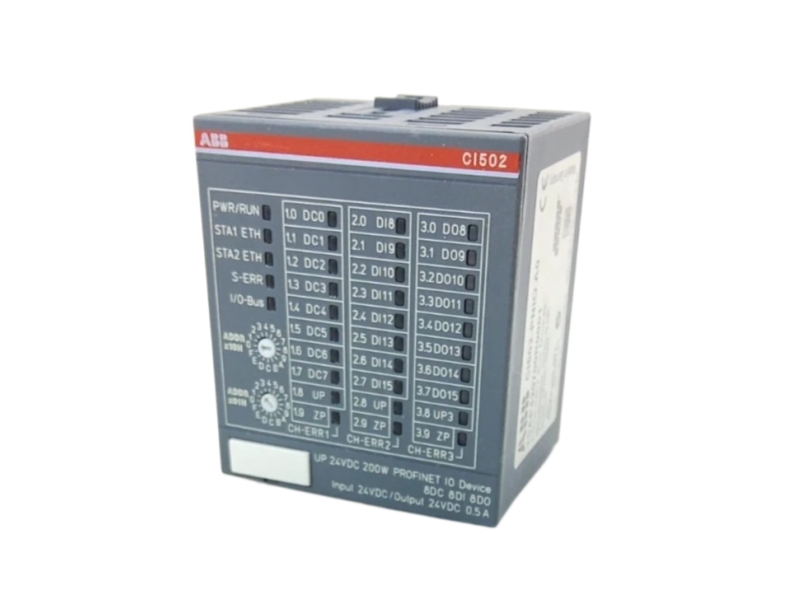

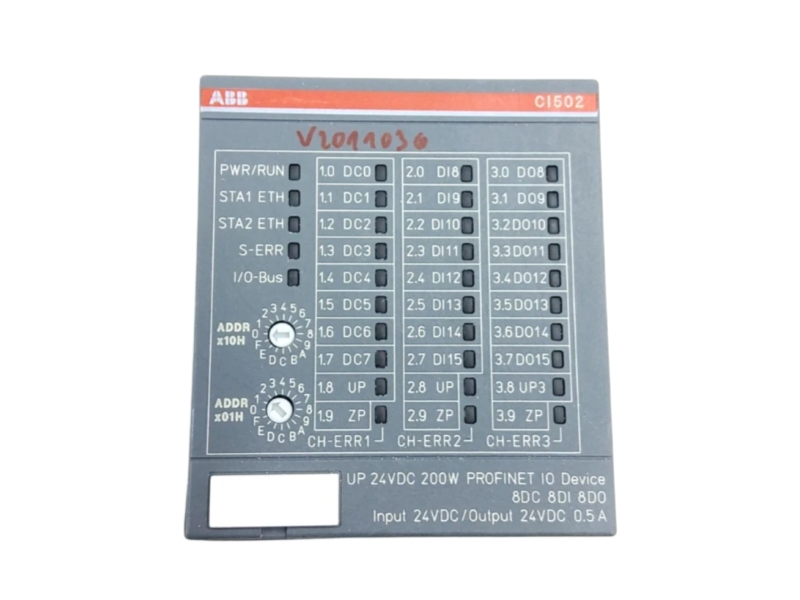

ABB CI502-PNIO is an S500 PROFINET communication interface module for decentralized digital I/O. It provides eight 24 V DC digital inputs, eight 24 V DC transistor outputs and eight software-configurable digital input/output channels. Output channels are rated up to 0.5 A, and the module includes a fast-counter function. Dual RJ45 interfaces on the Ethernet terminal unit support the PROFINET connection and network continuation. CI502-PNIO can form the head of an expandable S500 remote-I/O station. Procurement and commissioning should verify the exact suffix, ABB ordering number, terminal unit, process supply and project device configuration.
| Manufacturer | ABB |
|---|---|
| Complete Part Number | CI502-PNIO |
| ABB Ordering Number | 1SAP220700R0001 |
| Product Type | PROFINET IO RT communication interface module |
| Series | S500 I/O for AC500 automation systems |
| Protocol / Network Role | PROFINET IO RT device |
| Digital Inputs | 8 channels, 24 V DC |
| Digital Outputs | 8 transistor channels, 24 V DC, 0.5 A maximum |
| Configurable Digital I/O | 8 channels, 24 V DC, 0.5 A maximum |
| Counter Function | Integrated fast counter |
| Network Connection | 2 RJ45 interfaces with integrated switch |
| Transfer Rate | 10/100 Mbit/s, full duplex |
| S500 Expansion | Up to 10 S500 I/O modules |
| Terminal Unit | TU507-ETH or TU508-ETH |
| Galvanic Isolation | Module-wise |
| Product Condition | NEW |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are stated in the written quotation after order review. |
Verify CI502-PNIO and ordering number 1SAP220700R0001; CI502-PNIO-XC is a separate version. Check the TU507-ETH or TU508-ETH terminal unit, process-supply grouping, PROFINET device name, IP settings, GSDML file, controller support, configurable-channel direction and project mapping before installation.
It is an S500 PROFINET communication interface module with integrated and configurable digital I/O.
Eight channels can be configured as digital inputs or digital outputs.
The digital and configurable output channels are specified for 24 V DC and 0.5 A maximum.
No analog channels are listed for this model; its integrated channels are digital.
Use a TU507-ETH or TU508-ETH terminal unit according to the planned installation.
Check the full suffix, ordering number, terminal unit, GSDML data, network configuration and channel-direction settings.
