15-inch touch visualization for expandable pedestal-mounted operator stations.

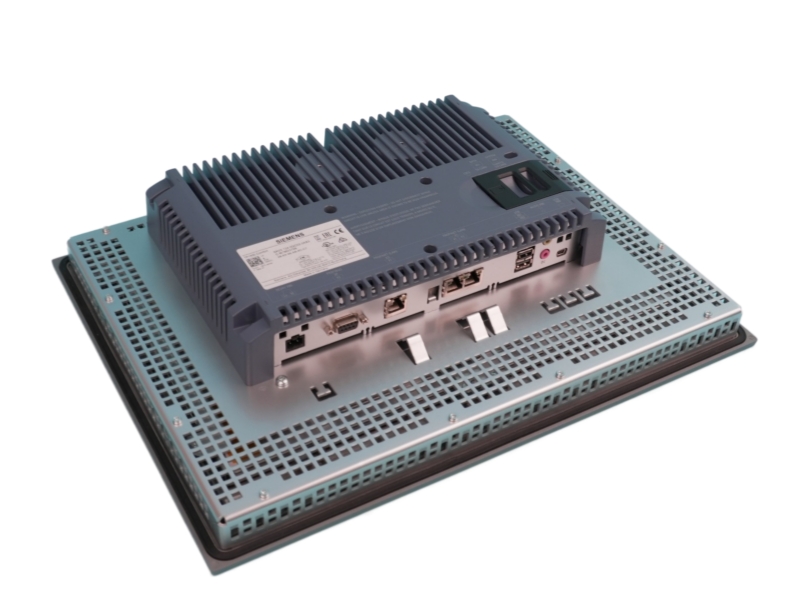

The Siemens 6AV2124-0QC24-1AX0 is a SIMATIC HMI TP1500 Comfort PRO panel for expandable supporting-foot or pedestal installations with a bottom flange. It uses touch operation and a 15-inch widescreen TFT display with 16 million colors. Communication interfaces include PROFINET and MPI/PROFIBUS DP, while 24 MB configuration memory supports the HMI project. The operating system is WEC 2013, and Siemens specifies WinCC Comfort V14 SP1 with HSP for configuration. Procurement teams should compare the complete suffix, mounting arrangement, project backup, engineering version, interfaces and configured devices before replacement.
| Product condition | Original new |
|---|---|
| Availability | In stock |
| Official life cycle | Phase Out Announce |
| Mounting version | Expandable supporting foot with bottom flange |
| Warranty | With 1 year warranty |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete part number | 6AV2124-0QC24-1AX0 |
| Product type | SIMATIC HMI TP1500 Comfort PRO |
| Mounting | Supporting foot, expandable, flange at bottom |
| Operation | Touch operation |
| Display | 15-inch widescreen TFT, 16 million colors |
| Interfaces | PROFINET and MPI/PROFIBUS DP |
| Configuration memory | 24 MB |
| Operating system | WEC 2013 |
| Engineering | WinCC Comfort V14 SP1 with HSP |
| Country of origin | GERMANY |
| Shipping | Worldwide shipping coordination after destination review |

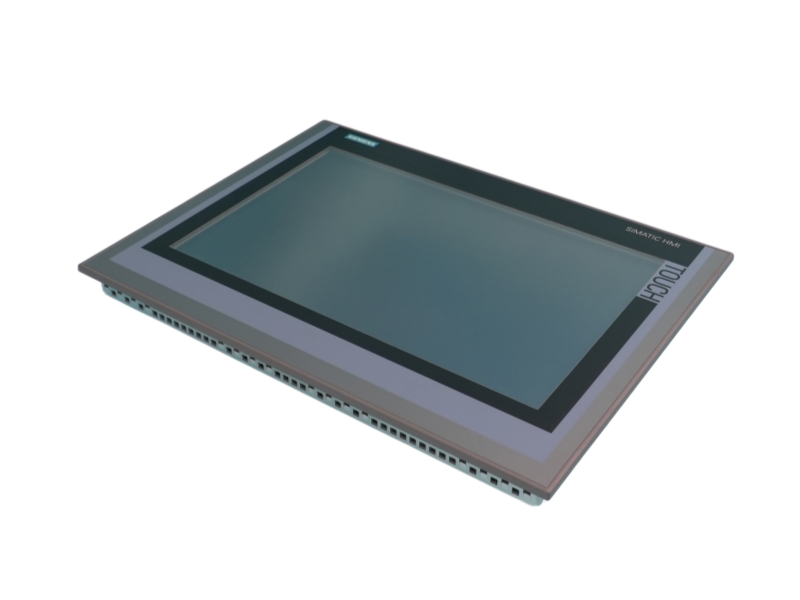

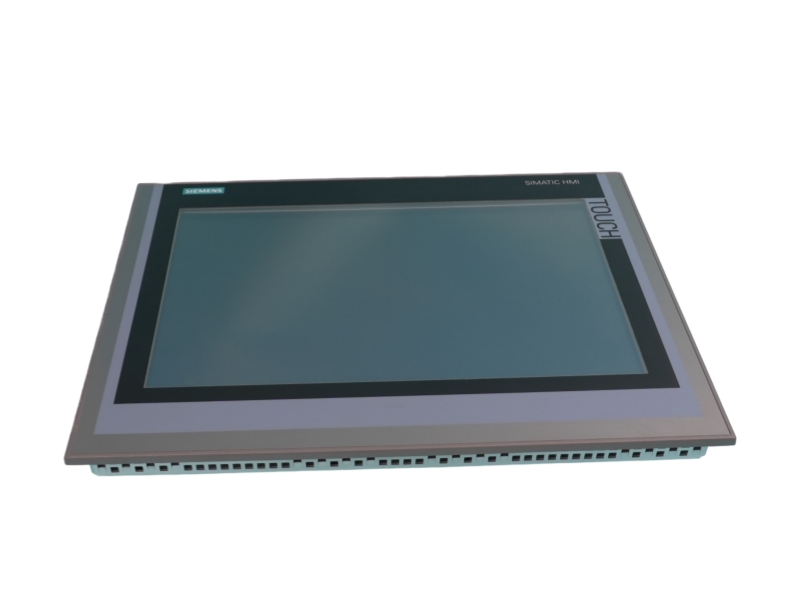

The 15-inch widescreen touch display presents machine and process information.
Managed forwarding supports 15-inch widescreen TFT, 16 million colors network segments.
WinCC Comfort engineering prepares and transfers the configured HMI project.
| Pedestal operator stations | Provides touch visualization on expandable supporting-foot installations. |
| Machine visualization | Displays operator controls, process values, alarms and status information. |
| Industrial communication | Connects to automation networks through PROFINET or MPI/PROFIBUS DP. |
| Installed-base modernization | Supports exact-order-code replacement planning for TP1500 Comfort PRO systems. |
Confirm the complete suffix, pedestal mounting and bottom flange, 15-inch panel cutout or support arrangement, project backup, WinCC engineering version, interfaces, configured controllers and power wiring before replacement.
Yes. Siemens identifies this complete order code as a SIMATIC HMI TP1500 Comfort PRO touch panel.
Siemens lists the lifecycle wording as Phase Out Announce.
This version is designed for an expandable supporting foot or pedestal with the flange at the bottom.
Compare the full suffix, mounting arrangement, project backup, WinCC version, communication interfaces, configured controllers and power wiring.
No. Original new condition, in-stock availability and the one-year warranty are Stockoems commercial information.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A structured service route for industrial automation procurement, condition review, protective handling and after-sales communication.
| Gate | Service stage | Checks and deliverables |
|---|---|---|
| 01 | Identity verification | Model and suffix verification plus product and label photo confirmation. |
| 02 | Condition review | Condition confirmation, housing review and visible connector inspection. |
| 03 | Compatibility check | Technical compatibility review covering suffix, pedestal mounting, project backup, engineering version, interfaces and configured controllers. |
| 04 | Packing preparation | Protective packaging selected for the equipment size, exposed connectors and transport route. |
| 05 | Logistics coordination | Worldwide shipping, shipment tracking and customs documentation prepared after destination review. |
| 06 | After-sales support | Written warranty terms, return authorization process and after-sales response channel. |
Order code, suffix and label data are compared before commercial confirmation. Available product photos support visible-condition review.
Display surface, connectors, housing and mounting flange receive protective handling suited to industrial HMI equipment.
Destination, consignee details and shipment requirements are reviewed before customs documents and tracking information are prepared.
Look for complete part-number discipline, clear condition descriptions, label-photo support, written warranty terms and a defined return authorization process.
Request model and suffix verification, condition confirmation, available label photos, packaging information, shipping scope and written commercial terms.
Engineers should compare the complete suffix, supporting-foot arrangement, bottom flange, project backup, WinCC version, interfaces, configured controllers and power wiring.
Risk signals include shortened or changed suffixes, reused specifications from another model, unclear condition language, refusal to provide available label evidence, unsupported lead-time claims and missing return terms.
