Combines ET 200SP station control with PROFINET IRT, a three-port switch and compact CPU performance.

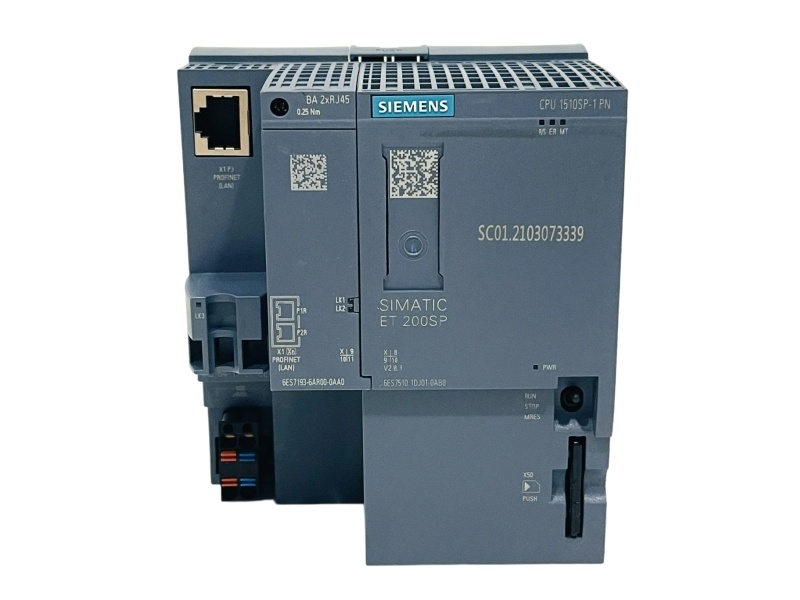

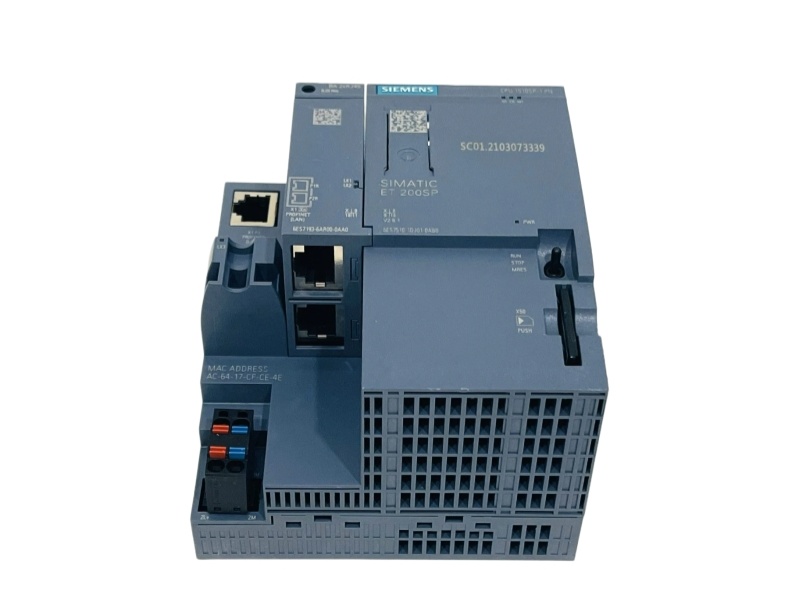

Siemens 6ES7510-1DJ01-0AB0 is a SIMATIC DP CPU 1510SP-1 PN for the ET 200SP distributed I/O system. It provides 100 KB program work memory, 750 KB data work memory and PROFINET IRT communication through an integrated three-port switch. Siemens specifies 72 ns bit performance, a required SIMATIC Memory Card and a required BusAdapter for ports 1 and 2. This CPU is suited to service of compact distributed control stations where the exact catalog revision is important. Before ordering, verify the complete suffix, firmware, hardware status, BusAdapter, memory card, TIA Portal project, I/O station and label photographs.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7510-1DJ01-0AB0 |
| Product Type | CPU 1510SP-1 PN Central Processing Unit |
| Series | SIMATIC ET 200SP |
| Model Configuration | 100 KB program memory; 750 KB data memory; PROFINET IRT three-port switch |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm. |
| Firmware/Software Version | Contact us to confirm. |
| Country of Origin | GERMANY |
| Compatibility | Confirm the ET 200SP station, BusAdapter, SIMATIC Memory Card, project and installed revisions. |
| Warranty | With 1 year warranty |
| Availability | Contact us to confirm. |
| Shipping | Worldwide options are checked in the written quotation. |
The CPU 1510SP-1 PN places S7-1500 control functions in an ET 200SP form factor. Its three-port PROFINET switch supports network integration, while ports 1 and 2 depend on an appropriate BusAdapter. Exchange planning must include the project and physical interface arrangement.
| Program work memory | 100 KB |
|---|---|
| Data work memory | 750 KB |
| Bit performance | 72 ns |
| Communication | PROFINET IRT with integrated three-port switch |
| BusAdapter | Required for ports 1 and 2 |
| Memory card | SIMATIC Memory Card required |
| Supply voltage | 24 V DC nominal |
| Permitted range | 19.2 to 28.8 V DC |
| Rated / maximum current | 0.6 A / 0.9 A |
| Power-failure buffering | 10 ms |
| Power loss | Typically 5.6 W |
| Manufacturer comparison data | Hardware FS05 and firmware V2.9 |
| Dimensions | 100 × 117 × 75 mm |
| Approximate weight | 310 g |
| Lifecycle | Cancelled since 1 October 2024; spare-part status |
| Siemens-listed successor | 6ES7510-1DK03-0AB0; compatibility review required |
The Siemens-listed successor must be reviewed for firmware, project, interface and hardware differences before use and is not assumed to be a direct replacement.

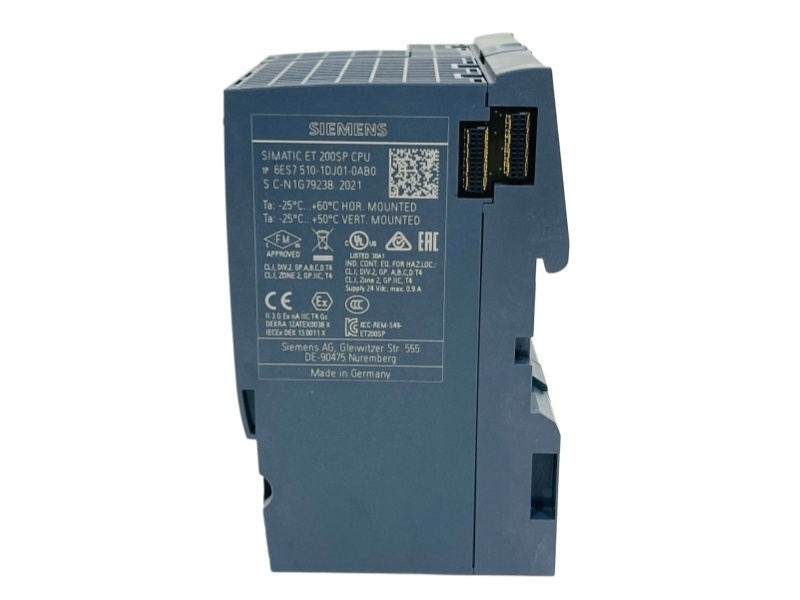

Confirm 6ES7510-1DJ01-0AB0 including the suffix, ET 200SP station length, 24 V DC supply, BusAdapter, hardware status, firmware, TIA Portal release, Memory Card, mounting dimensions, module sequence and original label photos.
Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
Siemens lists it as cancelled since 1 October 2024 and as a spare part. Availability is checked by enquiry.
Yes. Siemens states both requirements for this CPU.
Official data specifies 100 KB program memory and 750 KB data memory.
Provide station configuration, BaseUnits, module sequence, BusAdapter, project, firmware and label photos.
Do not assume direct interchangeability; validate project, firmware, hardware and station requirements.
