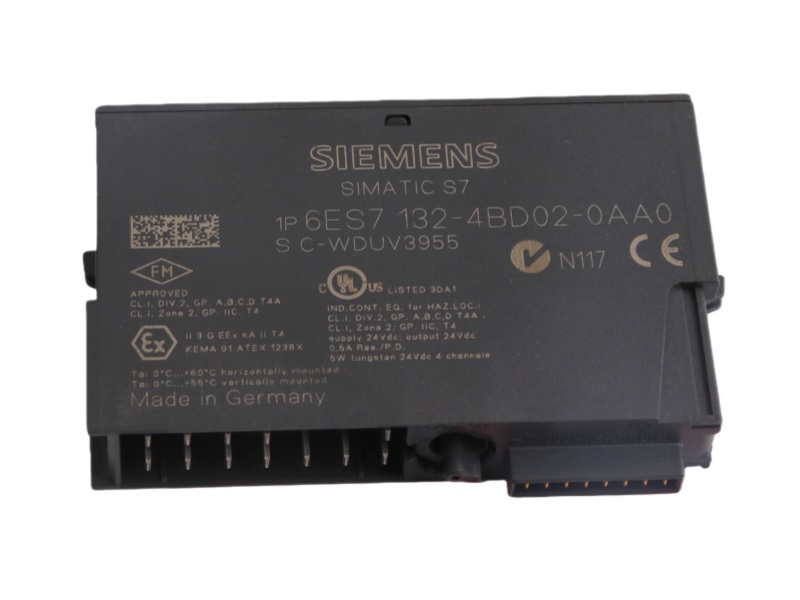

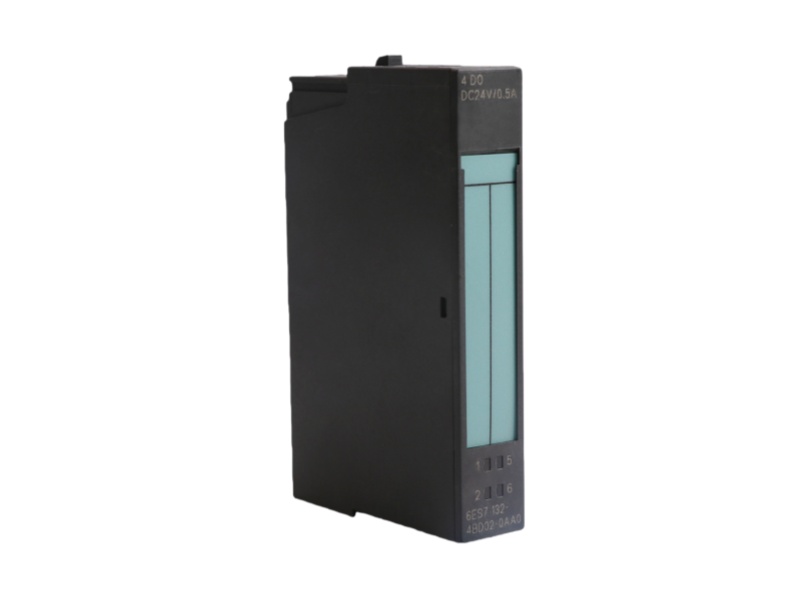

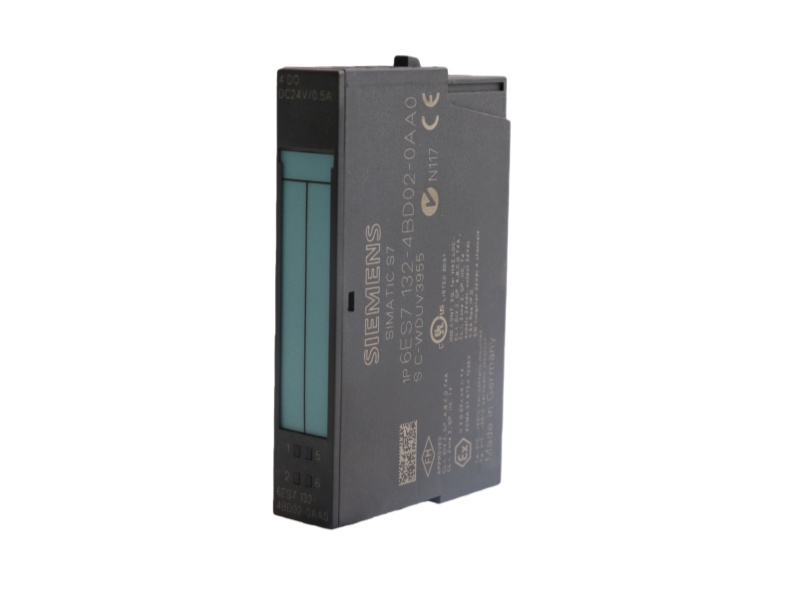

The 6ES7132-4BD02-0AA0 Siemens SIMATIC DP consists of five identical electronic modules specifically developed for the SIMATIC ET 200S distributed I/O system. Each module incorporates four digital outputs designed for 24V DC operation with a maximum current capacity of 0.5A per channel. The compact 15mm width of it enables exceptional space utilization in control cabinet installations, making it particularly suitable for applications where high-density I/O configuration is essential while maintaining reliable performance in industrial automation environments.

Engineered with comprehensive protection mechanisms, the 5 electronic modules for ET 200S 6ES7132-4BD02-0AA0 Siemens features robust short-circuit protection with a typical response threshold between 1 to 1.5A and effective limitation of inductive shutdown voltage to -55 to -60V. The module demonstrates efficient energy characteristics with a typical power loss of only 0.8W and minimal quiescent current consumption of 10mA per channel from the load voltage. These technical attributes ensure that it delivers stable operation while minimizing thermal stress in compact control cabinet arrangements.

The output performance of the Siemens 6ES7132-4BD02-0AA0 ET 200S distributed I/O Digital electronic module is characterized by fast switching times with maximum delays of 50 microseconds from "0" to "1" and 120 microseconds from "1" to "0" when driving resistive loads. The module supports impressive switching frequencies up to 800Hz for resistive loads and 10Hz for lamp loads, providing versatile application possibilities. With a total current capacity of 2A per module and support for shielded cable lengths up to 1000 meters, it offers substantial flexibility in system design and field device connectivity.

Packaged as five units per packaging unit, the Digital Output Module Siemens 6ES7132-4BD02-0AA0 provides practical advantages for system integrators working on projects requiring multiple identical output points. The module's capability for redundant control of loads enhances system reliability in critical applications. The combination of compact dimensions, fast switching characteristics, and robust protection features makes the Siemens 6ES7132-4BD02-0AA0 an excellent choice for modern industrial automation systems requiring precise control of actuators, indicators, and other field devices in space-constrained environments.
