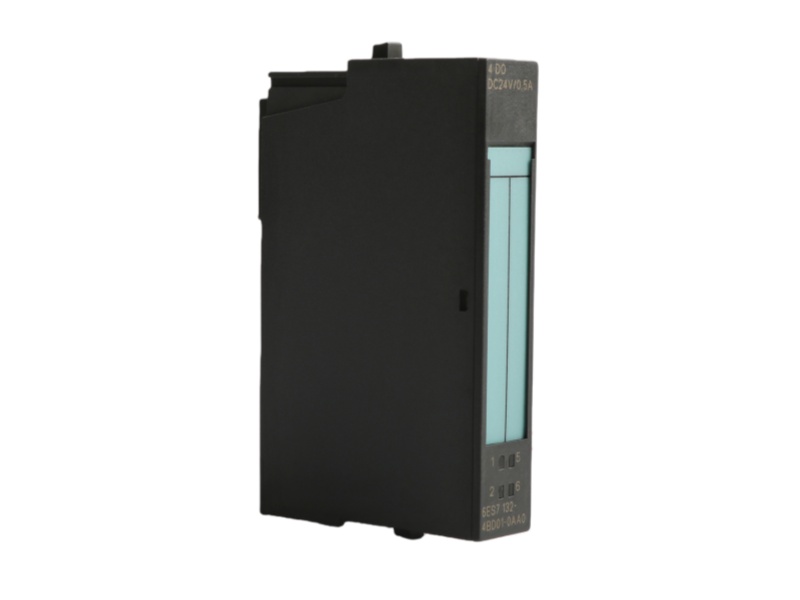

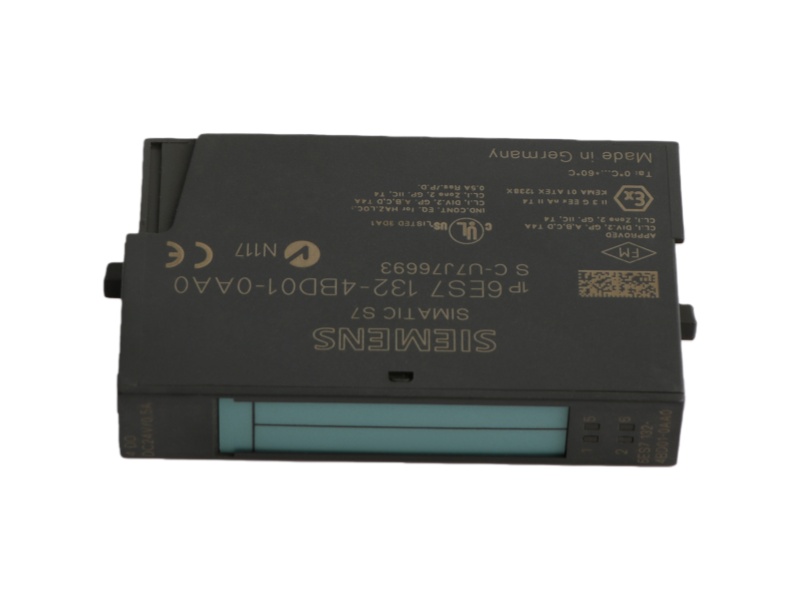

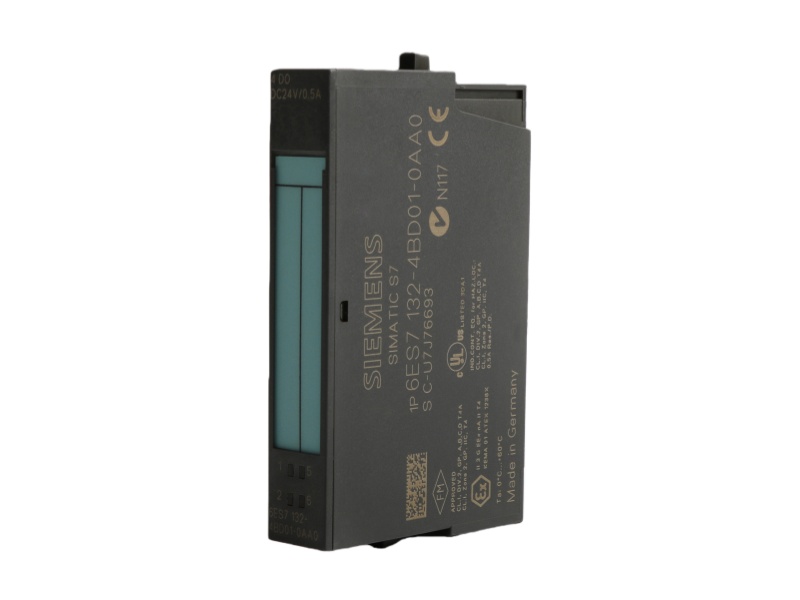

The 6ES7132-4BD01-0AA0 Siemens ET 200S distributed I/O Digital electronic module comprises five identical electronic modules specifically engineered for the SIMATIC ET 200S distributed I/O system. Each compact module provides four standard digital outputs operating at 24V DC with a maximum current capacity of 0.5A per channel. The ultra-slim 15mm width of it enables exceptional space efficiency in control cabinet installations, allowing for high-density configurations where physical space is limited while maintaining full functionality for industrial automation applications.

Engineered with comprehensive protection features, the SIMATIC DP 6ES7132-4BD01-0AA0 Siemens incorporates short-circuit protection with a typical response threshold between 0.7 to 1.5A and effectively limits inductive shutdown voltage to the range of -55 to -60V. Each module demonstrates efficient power management with a typical power loss of only 0.8W and minimal quiescent current consumption of 5mA per channel from the load voltage. The Siemens 6ES7132-4BD01-0AA0 also includes reverse polarity protection, though proper installation is crucial as polarity reversal can cause unintended output activation.

The output characteristics of the Siemens 6ES7132-4BD01-0AA0 5 ELECTRON are designed for versatile application support, with a load resistance range from 48Ω to 3.4kΩ and lamp load capacity up to 5W. The modules maintain stable output voltage at signal "1" with minimal drop (L+ -1V) and handle output currents from 7mA to 600mA, providing reliable operation for various actuator types. These technical specifications make it particularly suitable for controlling small relays, indicators, and other industrial field devices requiring moderate switching capacity.

Packaged as five units per packaging unit, the Digital electronic module Siemens 6ES7132-4BD01-0AA0 offers practical advantages for system integrators managing multiple identical output points across different automation projects. The standardized design ensures seamless integration with other ET 200S components and supports straightforward replacement when maintenance is required. The combination of compact dimensions, reliable performance, and cost-effective packaging makes it an optimal solution for building efficient and scalable control systems in diverse industrial automation environments.
