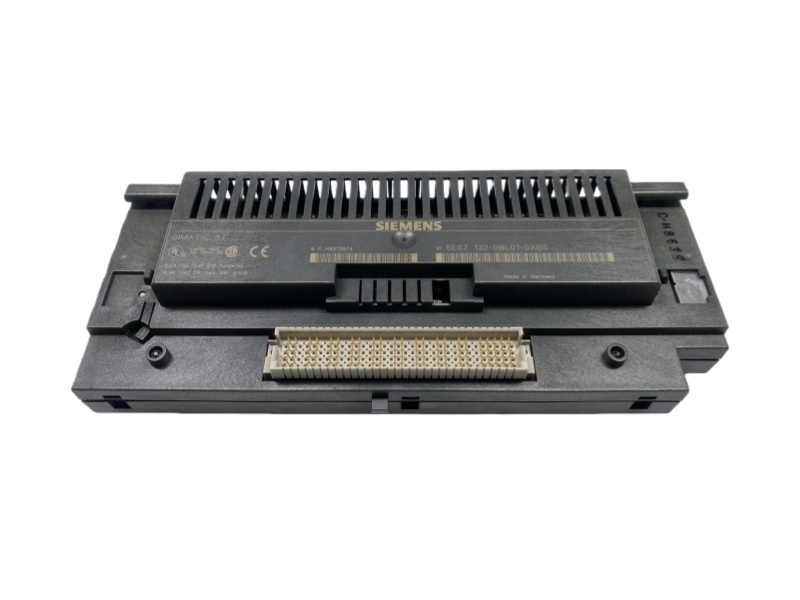

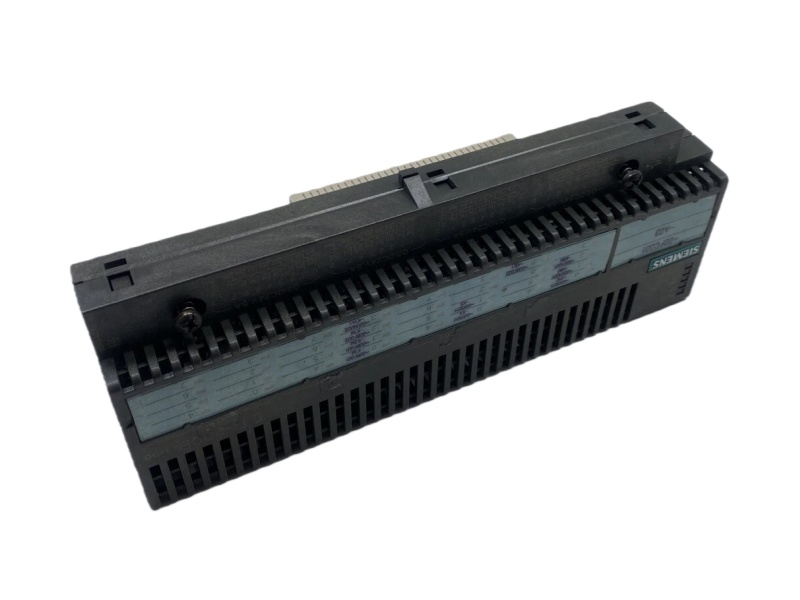

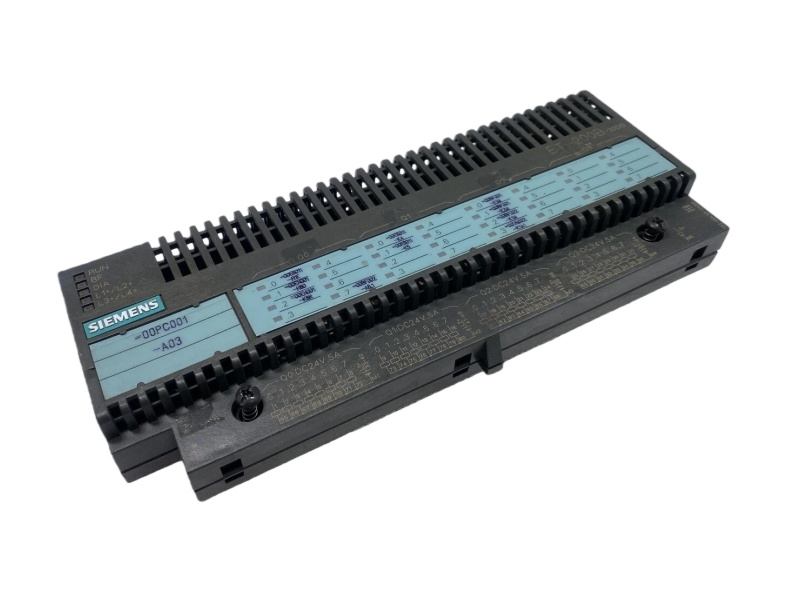

Siemens 6ES7132-0BL01-0XB0 Output Module

Siemens 6ES7132-0BL01-0XB0
Siemens 6ES7132-0BL01-0XB0
Siemens 6ES7132-0BL01-0XB0

6ES7132-0BL01-0XB0 Product datasheet

Model number:

6ES7132-0BL01-0XB0



Module Type:

Output Module

Manufacture:

Siemens



Condition:

Brand New

Range of Product:

SIMATIC DP



Lead time:

In Stock

Weight:

0.95 kg



HS CODE:

8537101190

Dimension:

2.5 cm x 5.1 cm x 83.8 cm



MOQ:

1

Product Origin:

GERMANY



System:

PLC

Discontinued on:

Active



Communication Service:

Ethernet router



6ES7132-0BL01-0XB0 Functional Description


The 6ES7132-0BL01-0XB0 Siemens SIMATIC DP is a high-density digital output module specifically engineered for the SIMATIC ET 200B distributed I/O system. With its 235mm width, this electronic module provides 32 independent digital outputs operating at 24V DC, each capable of delivering up to 0.5A current. It is designed for demanding industrial automation applications where reliable control of multiple actuators, valves, and indicators is essential for maintaining continuous production processes.



Engineered with robust electrical characteristics, the ELECTRONIC MODULE DIGITAL 6ES7132-0BL01-0XB0 Siemens operates within a wide supply voltage range from 18.5V to 30.2V DC, demonstrating excellent stability even during voltage fluctuations. The module features electronic short-circuit protection and limits inductive shutdown voltage to approximately -55V, ensuring safe operation and protecting connected field devices. With a maximum power loss of 7.9W and typical current consumption of 75mA from the logic supply, it achieves efficient power utilization while maintaining high performance.



The output characteristics of the Siemens 6ES7132-0BL01-0XB0 24V DC power supply include fast switching times with maximum delays of 20 microseconds from "0" to "1" and 0.5 milliseconds from "1" to "0" with resistive loads. This responsive performance makes the module suitable for applications requiring precise timing control. The Siemens 6ES7132-0BL01-0XB0 supports different switching frequencies depending on load types, reaching up to 100Hz for resistive loads, 8Hz for lamp loads, and 0.5Hz for inductive loads, providing versatility for various automation scenarios.



Designed for straightforward integration, the FOR ET 200B Siemens 6ES7132-0BL01-0XB0 utilizes standard terminal blocks including TB2/DC and TB4/DC for simplified wiring. The module's grouping of outputs in sets of eight allows for organized power distribution and circuit protection. The proven reliability and high channel density of it make it an ideal solution for manufacturing facilities, material handling systems, and process automation applications requiring extensive digital output capabilities within a compact form factor.



If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




SIEMENS

6ES7 212-1HE40-0XB0

SIEMENS

6ES7 522-1BH10-0AA0

SIEMENS

3RW5980-0HF00

SIEMENS

6ES7 972-0BB52-0XA0

SIEMENS

6ES7 322-1HF10-0AA0

SIEMENS

7KM3220-0BA01-1DA0

SIEMENS

6ES7 135-7TD00-0AB0

SIEMENS

6AV6 644-0AB01-2AX0

SIEMENS

6GK5116-0BA00-2AC2

SIEMENS

6GK5005-0BA00-1AB2

SIEMENS

6ES7 331-7PF01-0AB0

SIEMENS

6EP1961-3BA21

SIEMENS

6ES7 155-5AA01-0AB0

SIEMENS

6ES7 138-4CA01-0AA0

SIEMENS

6ES7 131-1BL12-0XB0

SIEMENS

6ES7 132-4BD32-0AA0

SIEMENS

6ES7 307-1EA00-0AA0

SIEMENS

6ED1055-1CB00-0BA0

SIEMENS

6ES7 134-4GB11-0AB0

SIEMENS

6GK5004-1BD00-1AB2

SIEMENS

6SE7031-7HH84-1HJ0

SIEMENS

6GK5 204-2BC10-2AA3

SIEMENS

6AV6 641-0BA11-0AX1

SIEMENS

6EP1336-3BA00

SIEMENS

6ES7 193-4DL10-0AA0

SIEMENS

6AV2181-8XP00-0AX0

SIEMENS

6GK5101-1BB00-2AA3

SIEMENS

6GK1500-3AA00

SIEMENS

6ES7 313-5BF03-0AB0

SIEMENS

6ES7 133-1BL11-0XB0



Digital Output Module


The Siemens 6ES7132-0BL01-0XB0 is a digital electronic module designed for SIMATIC ET 200B distributed I/O systems. This 235mm wide module provides 32 digital outputs operating at 24V DC with 0.5A maximum current per channel, delivering reliable control for industrial automation applications.Featuring robust construction and electronic short-circuit protection, the module ensures stable operation in demanding industrial environments. The outputs are organized in groups of eight with independent power supply, supporting various load types including resistive, inductive and lamp loads with appropriate switching frequencies.



With wide operating voltage range from 18.5V to 30.2V DC and fast response characteristics, this module offers excellent performance for actuator control applications. The design incorporates effective protection against inductive shutdown voltages, ensuring operational safety and device protection.Compatible with standard terminal blocks including TB2/DC and TB4/DC, the module simplifies installation and maintenance processes. Its high-density output configuration makes it particularly suitable for applications requiring control of multiple actuators, valves and indicators in manufacturing and process automation systems.
