6ES7134-7SD00-0AB0 Overview

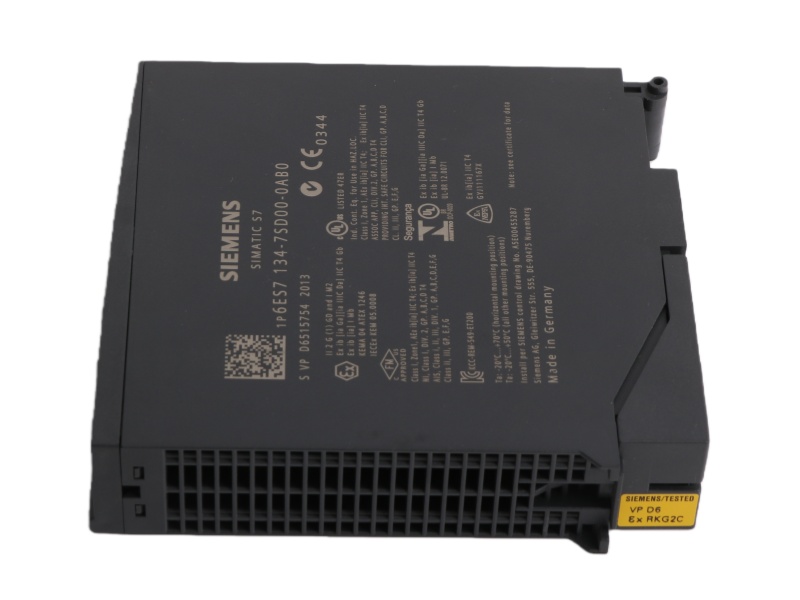

The Siemens 6ES7134-7SD00-0AB0 Potential distributor module is a 4-channel analog input submodule for the ET200iSP system, designed for connecting thermocouples and measuring millivolt signals with high 16-bit resolution and programmable temperature compensation.

Technical Data Summary

• Model: Siemens 6ES7134-7SD00-0AB0.

• Function: A 4-channel analog input submodule for the ET200iSP system.

• Input Type: Specifically for connecting thermocouples and millivolt voltage signals.

• High Resolution: Offers a maximum resolution of 16 bits for precise measurement.

• Key Performance: Features high accuracy with ±0.015% linearity error and configurable signal smoothing.

• System Integration: Supports internal/external temperature compensation and has a max 50m shielded cable length.

FAQ

Q1: What is the model and function of this Siemens module?

A1: It is the Siemens 6ES7134-7SD00-0AB0, a 4-channel analog input submodule for thermocouples.

Q2: Which types of thermocouples does it support?

A2: It supports a wide range, including Types B, C, E, J, K, L, N, R, S, T, and U.

Q3: What is its measurement resolution?

A3: It provides high-precision measurement with a maximum 16-bit resolution.

Q4: How does it handle temperature compensation?

A4: It supports both internal compensation (via sensor module) and external compensation.

Q5: What is its cycle time for all channels?

A5: The maximum cycle time for all 4 channels is 320 ms, with a basic conversion time of 80 ms (50Hz) or 66 ms (60Hz) per channel.
