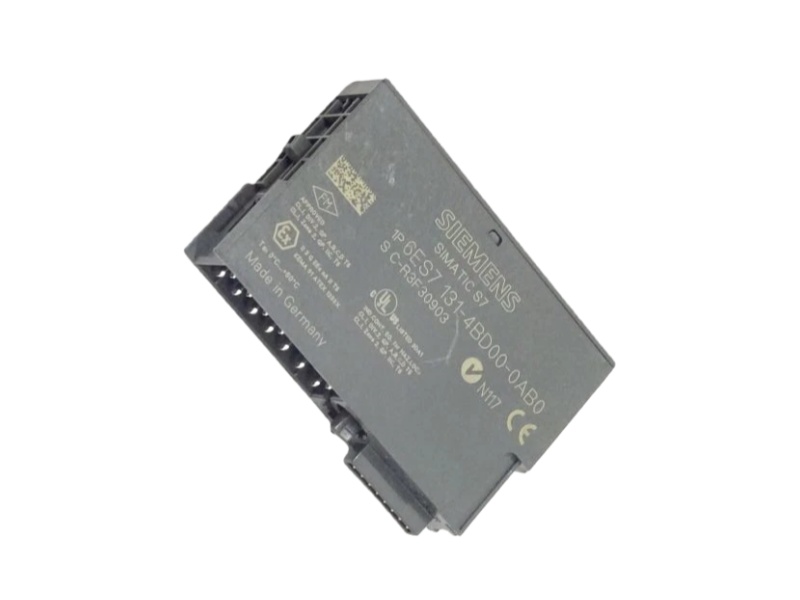

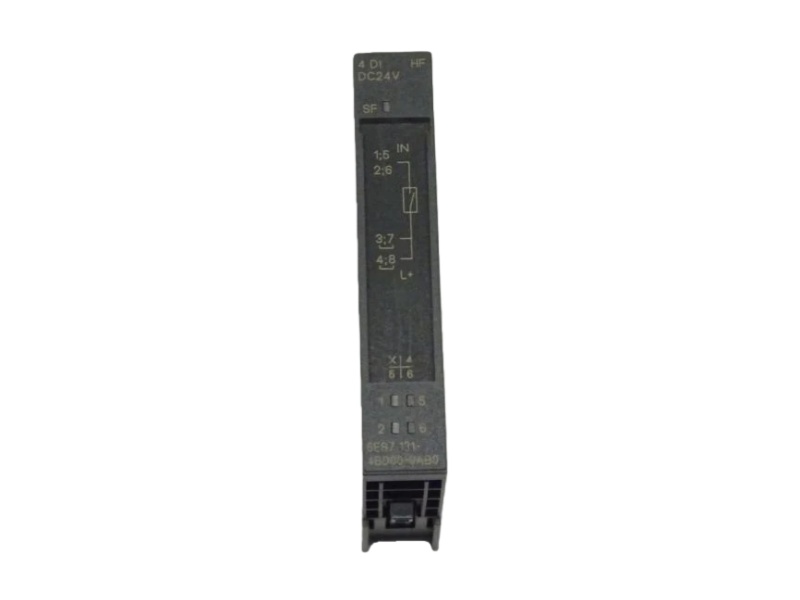

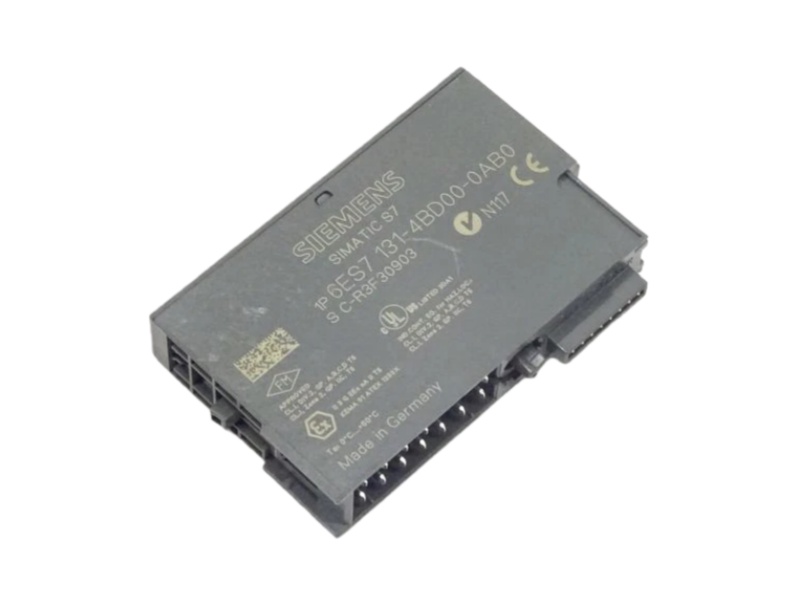

The 6ES7131-4BD00-0AB0 Siemens ET 200S distributed I/O Digital electronic module comprises five electronic modules designed for the SIMATIC ET 200S distributed I/O system, each providing four high-feature digital inputs operating at 24V DC. These modules feature an ultra-compact design with just 15mm width, enabling high-density installation in control cabinets where space optimization is critical. It represents the High Feature category within the ET 200S product range, offering enhanced diagnostic capabilities beyond standard modules for improved system maintenance and reliability.

Engineered with sophisticated electrical characteristics, the SIMATIC DP 6ES7131-4BD00-0AB0 Siemens modules operate with precise input voltage thresholds, recognizing signals as "1" between 15-30V and "0" from -30 to +5V in accordance with IEC 61131 Type 1 standards. Each module consumes typical power of 0.7W and provides encoder supply with rated output current of 500mA, ensuring sufficient power for connected sensors while maintaining energy efficiency. The technical design of it ensures stable performance in demanding industrial environments.

A key advantage of the Siemens 6ES7131-4BD00-0AB0 electronic module is its comprehensive diagnostic functionality, including parameterizable input delay and encoder short-circuit detection. The integrated SF (System Fault) LED provides immediate visual indication of group faults, enabling rapid troubleshooting and reduced downtime. These advanced features make it particularly valuable for applications requiring high availability and proactive maintenance capabilities in automated production systems.

The modular architecture of the PLC Module Siemens 6ES7131-4BD00-0AB0 supports flexible integration within ET 200S systems, which can expand to accommodate up to 64 I/O modules in any combination. Packaged five units per packaging unit, these modules offer convenient handling and inventory management for system integrators. The hot-swapping capability allows for maintenance and replacement during operation, making the Siemens 6ES7131-4BD00-0AB0 an ideal solution for mission-critical applications where maximum system availability is essential.
