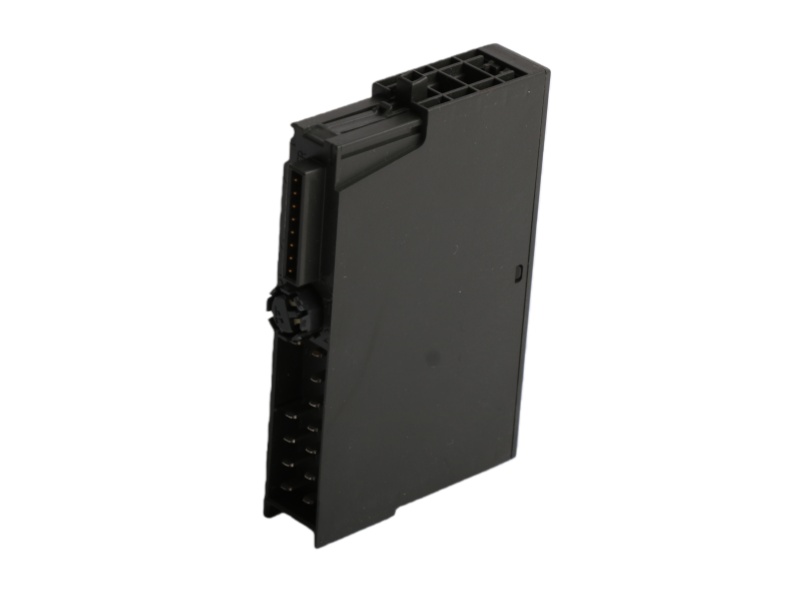

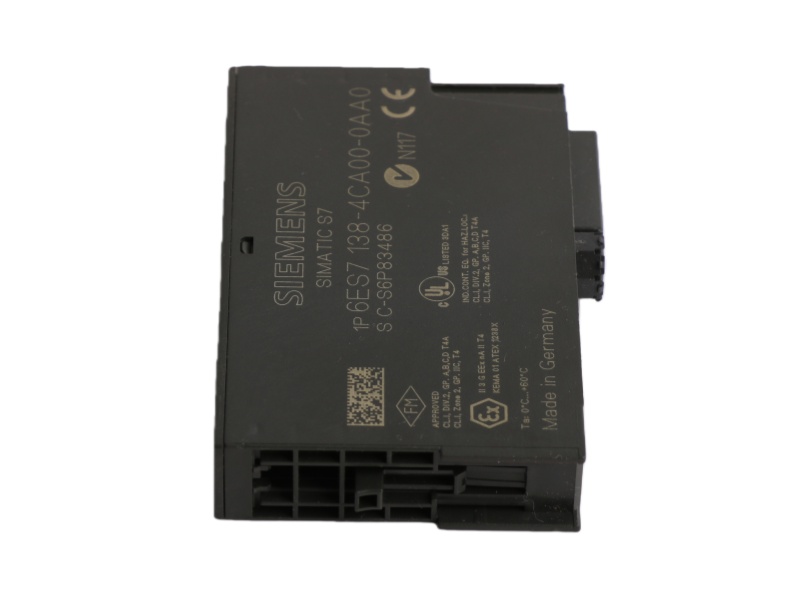

The Power module Siemens 6ES7138-4CA00-0AA0 is a POWER MODULE PM-E designed for the SIMATIC ET 200S distributed I/O system. This module operates on a 24V DC supply and is engineered to deliver reliable power distribution within an automation assembly. A key characteristic of this unit is its integrated diagnostic capability, which significantly enhances system maintenance and troubleshooting efficiency.

This module provides a maximum current carrying capacity of 10 A and features a remarkably low typical power loss of only 0.1 W, contributing to energy-efficient operation. For safety and protection, the 6ES7138-4CA00-0AA0 Siemens POWER MODULE includes reverse polarity protection, safeguarding the POWER MODULE Siemens 6ES7138-4CA00-0AA0 from incorrect wiring. However, it requires external short-circuit protection, such as an automatic circuit breaker with tripping characteristic C, for the load voltage lines.

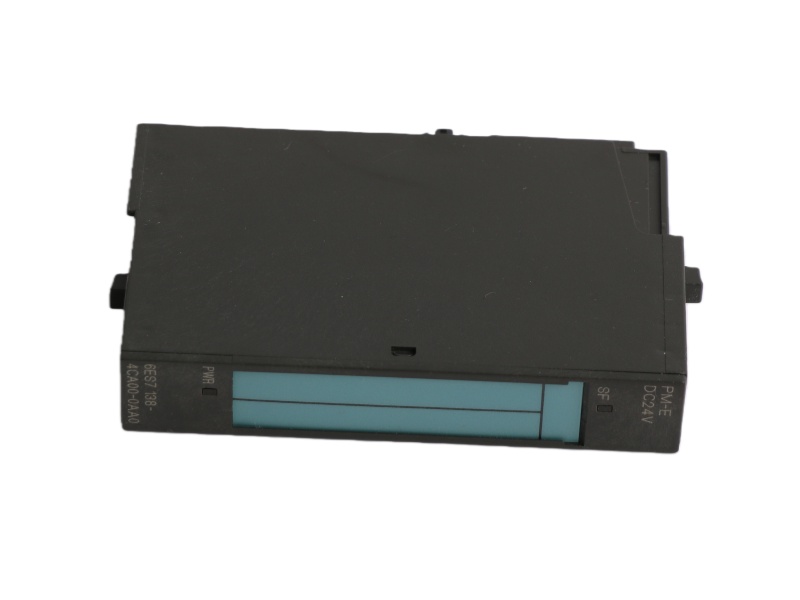

The diagnostic functions are a major advantage, offering clear status information through PWR (green) and SF (red) LEDs. It can report critical issues like a missing load voltage, enabling quick fault identification. The Siemens SIMATIC DP 6ES7138-4CA00-0AA0 also provides potential separation between the load voltage and the backplane bus, ensuring system stability and safety.

With a compact design measuring just 15mm in width, the Siemens 6ES7138-4CA00-0AA0 ET 200S Distributed I/O System allows for high-density mounting on the ET 200S terminal board. This combination of robust diagnostics, protective features, and a space-saving form factor makes the Siemens 6ES7138-4CA00-0AA0 a dependable and efficient component for modern industrial control systems.
