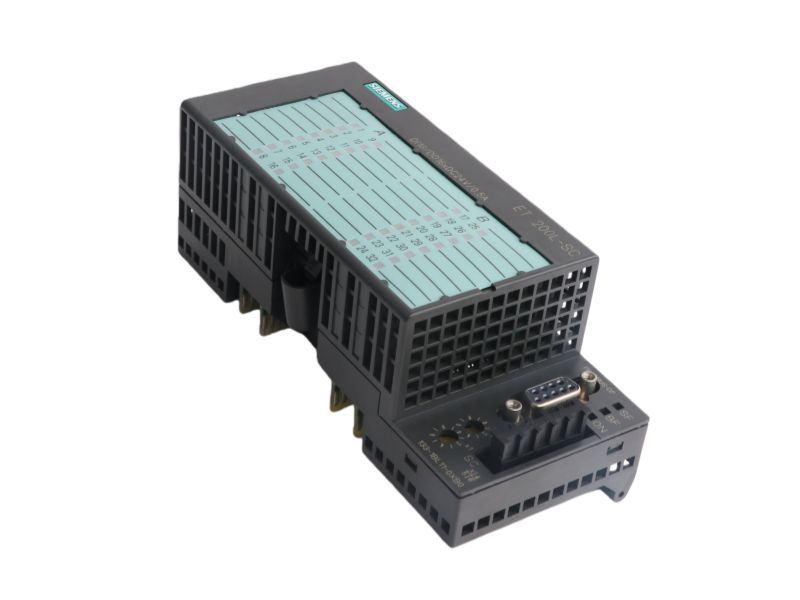

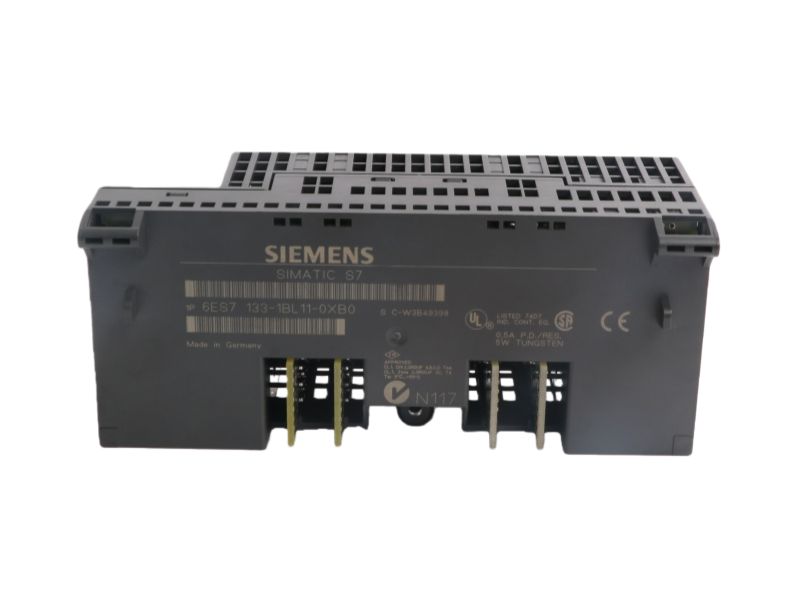

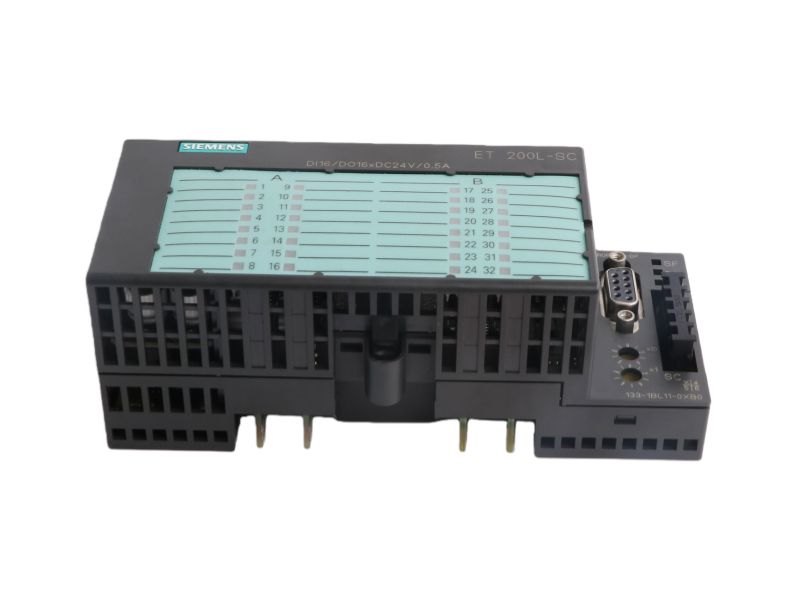

Siemens 6ES7133-1BL11-0XB0 Digital I/O Module

Siemens 6ES7133-1BL11-0XB0
Siemens 6ES7133-1BL11-0XB0
Siemens 6ES7133-1BL11-0XB0

6ES7133-1BL11-0XB0 Product datasheet

Model number:

6ES7133-1BL11-0XB0



Module Type:

Digital I/O Module

Manufacture:

Siemens



Condition:

Brand New

Range of Product:

Siemens



Lead time:

In Stock

Weight:

0.95 kg



HS CODE:

8537101190

Dimension:

2.5 cm x 5.1 cm x 83.8 cm



MOQ:

1

Product Origin:

GERMANY



System:

PLC

Discontinued on:

Active



Communication Service:

Ethernet router



6ES7133-1BL11-0XB0 Functional Description


The Siemens 6ES7133-1BL11-0XB0 ELECTRONIC MODULE DIGITAL is a compact electronic block designed for the Simatic ET 200L distributed I/O system, functioning as a 16-channel digital input and 16-channel digital output module. This versatile unit operates at 24 VDC with a 0.5A output current rating, providing reliable signal processing for various industrial automation applications. The module forms a complete I/O station when combined with its terminal block, creating a non-expandable but highly efficient PROFIBUS-DP node that simplifies installation and maintenance procedures.



In terms of input specifications, the Siemens ET 200L 6ES7133-1BL11-0XB0 accepts signals from 13-30V for logic "1" and -30 to +5V for logic "0", featuring input delays between 2-4.5 ms and supporting shielded cable lengths up to 1000 meters. The output characteristics of the Siemens 6ES7133-1BL11-0XB0 include electronic short-circuit protection and varying switching frequencies - maximum 100 Hz for resistive loads, 0.5 Hz for inductive loads, and 8 Hz for lamp loads, making it adaptable to diverse industrial load requirements.



The modular design of the 6ES7133-1BL11-0XB0 Siemens Digital I/O Module separates the electronics block from the terminal block, allowing easy replacement without rewiring. This practical feature significantly reduces maintenance downtime, while the Siemens 6ES7133-1BL11-0XB0 supports both screw-type and spring-type terminals for flexible installation options. The station address is conveniently set via two rotary switches on the electronics block, streamlining the configuration process for system integrators.



As part of the ET 200L series, the 6ES7133-1BL11-0XB0 Siemens ELECTRONIC BLOCK offers space-efficient distributed control solution for manufacturing and process industries. Its robust construction and reliable performance make the Digital I/O Module Siemens 6ES7133-1BL11-0XB0 particularly suitable for applications requiring compact but comprehensive digital I/O capabilities in harsh industrial environments, ensuring stable operation within the broader SIMATIC automation system architecture.

If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




SIEMENS

6ES7 212-1HE40-0XB0

SIEMENS

6ES7 522-1BH10-0AA0

SIEMENS

3RW5980-0HF00

SIEMENS

6ES7 972-0BB52-0XA0

SIEMENS

6ES7 322-1HF10-0AA0

SIEMENS

7KM3220-0BA01-1DA0

SIEMENS

6ES7 135-7TD00-0AB0

SIEMENS

6AV6 644-0AB01-2AX0

SIEMENS

6GK5116-0BA00-2AC2

SIEMENS

6GK5005-0BA00-1AB2

SIEMENS

6ES7 331-7PF01-0AB0

SIEMENS

6EP1961-3BA21

SIEMENS

6ES7 155-5AA01-0AB0

SIEMENS

6ES7 138-4CA01-0AA0

SIEMENS

6ES7 131-1BL12-0XB0

SIEMENS

6ES7 132-4BD32-0AA0

SIEMENS

6ES7 307-1EA00-0AA0

SIEMENS

6ED1055-1CB00-0BA0

SIEMENS

6ES7 134-4GB11-0AB0

SIEMENS

6GK5004-1BD00-1AB2

SIEMENS

6SE7031-7HH84-1HJ0

SIEMENS

6GK5 204-2BC10-2AA3

SIEMENS

6AV6 641-0BA11-0AX1

SIEMENS

6EP1336-3BA00

SIEMENS

6ES7 193-4DL10-0AA0

SIEMENS

6AV2181-8XP00-0AX0

SIEMENS

6GK5101-1BB00-2AA3

SIEMENS

6GK1500-3AA00

SIEMENS

6ES7 313-5BF03-0AB0

SIEMENS

6ES7 133-1BL11-0XB0



Modular Design of Siemens ET 200L I/O System


The Siemens ET 200L I/O system features a compact modular design consisting of a terminal block and an electronics block, creating a complete PROFIBUS-DP station with integrated bus connectivity. This non-expandable unit offers flexible configuration options with four terminal block variants supporting either 16 or 32 channels, available in both screw-type and spring-type terminal versions. The electronics blocks provide digital input/output functionality in multiple configurations including 16DI, 16DO, 32DI, 32DO, and 16DI/16DO combinations, all operating at 24 VDC with 0.5A output capacity. Installation flexibility is enhanced through standard DIN rail mounting capability in any orientation, while the innovative separation between terminal and electronics blocks allows for quick module replacement without disturbing existing wiring. The system accommodates various connection schemes with standard 2-wire connections and optional supplementary latching terminals for 3- or 4-wire configurations. Station addressing is conveniently set using two rotary switches on the electronics block, and proper bus termination requires a special bus connector with terminating resistor when installed at segment ends. Additional accessories include professionally designed labeling sheets for system documentation and identification.
