Eight-channel HART analog output module for SIMATIC ET 200SP HA.

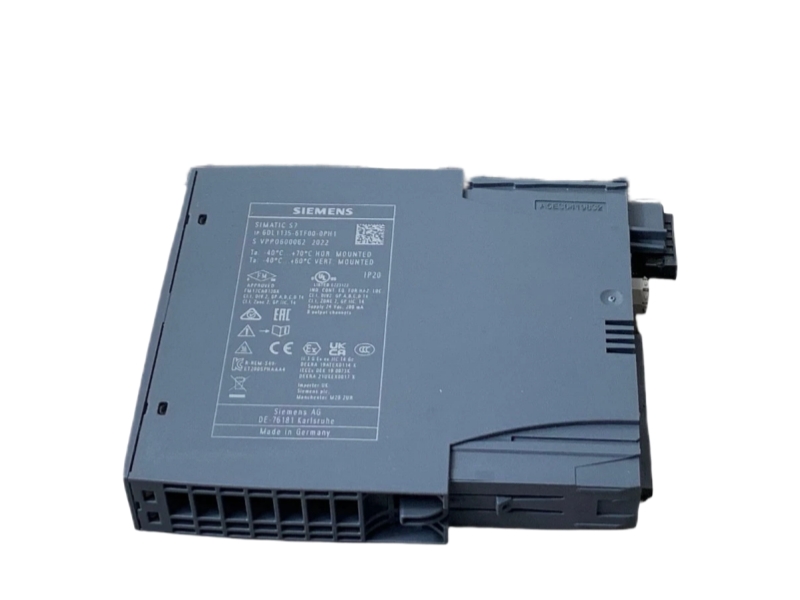

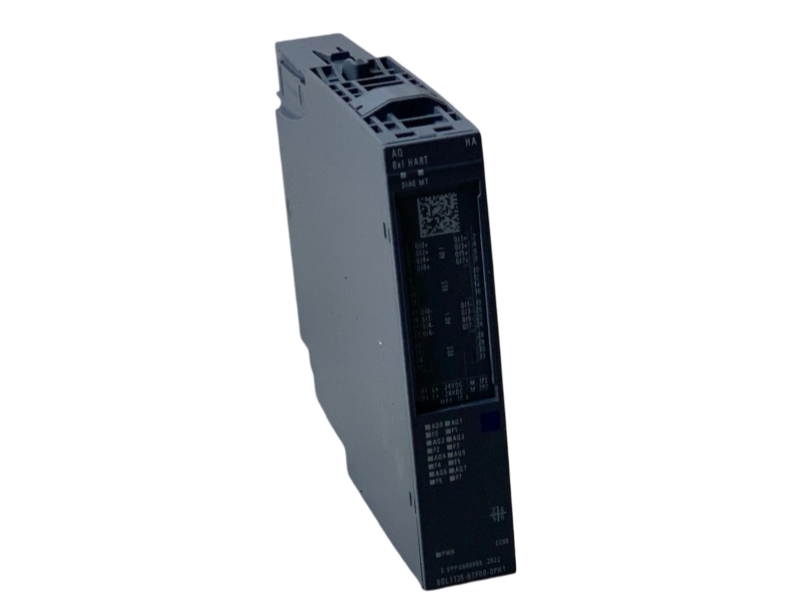

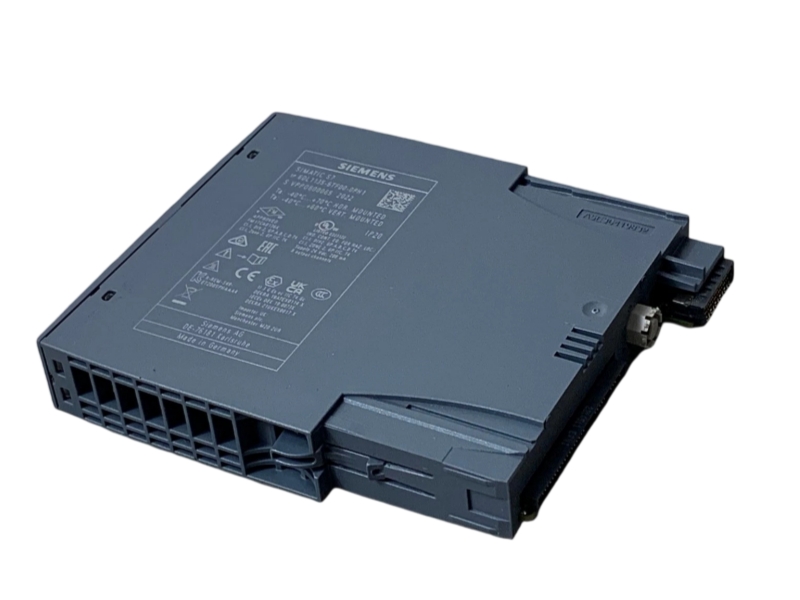

Siemens 6DL1135-6TF00-0PH1 is a SIMATIC ET 200SP HA analog output module designated AQ 8xI HART HA. It provides eight analog current outputs with HART capability for process automation signal delivery and supports channel diagnostics. The module is associated with color code CC00 and is suitable for specified ET 200SP HA terminal bases. Replacement planning should verify the complete order number, terminal-base type, firmware and engineering environment, output-range configuration and redundancy requirements. Label photographs and project records should be reviewed before installation in a running process-control system.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6DL1135-6TF00-0PH1 |
| Product Type | AQ 8xI HART HA analog output module |
| Product Family | SIMATIC ET 200SP HA |
| Analog Outputs | 8 |
| Communication | HART |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2 to 28.8 V DC |
| Resolution | Up to 16 bit, depending on output range |
| Diagnostics | Channel diagnostics |
| Color Code | CC00 |
| Suitable Terminal Blocks | H1 and M1 |
| Redundant Operation | Supported with terminal block type M1 |
| Engineering | TIA Portal V16 or later; STEP 7 V5.6; PCS 7 V9.0; PCS neo V3.0 |
| Net Weight | 0.160 kg |
| Country of Origin | GERMANY |
| System context | SIMATIC ET 200SP HA distributed I/O in process automation |
|---|---|
| Typical use | HART-capable current-output control for field devices and actuators |
| Maintenance use | Channel-level replacement and spare-part planning in HA stations |
| Critical check | Terminal block, firmware, output range, HART use and redundancy design |
