Eight 24 V DC inputs and eight fast transistor outputs combine field-state acquisition and load switching in one expansion module.

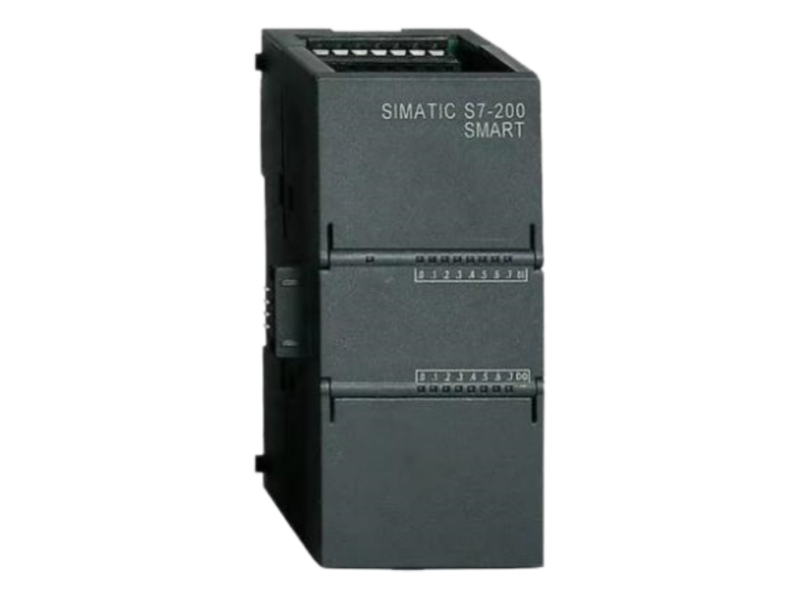

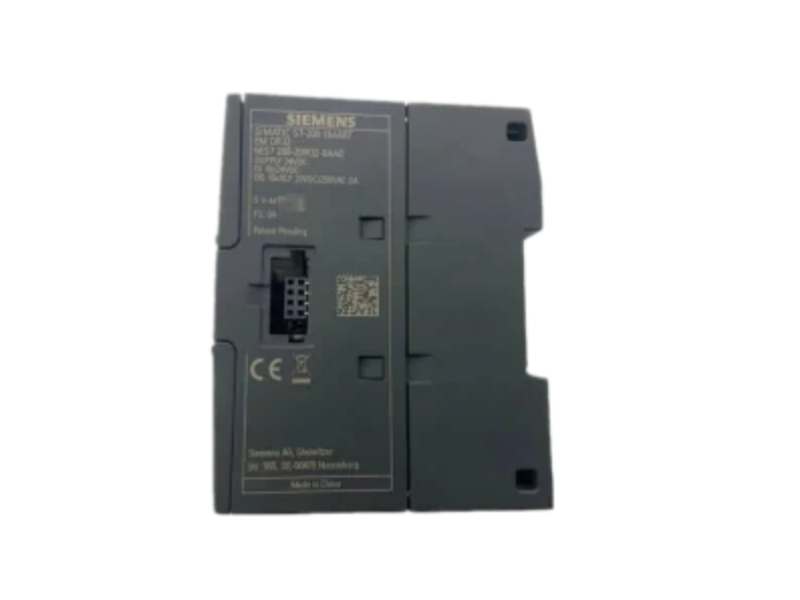

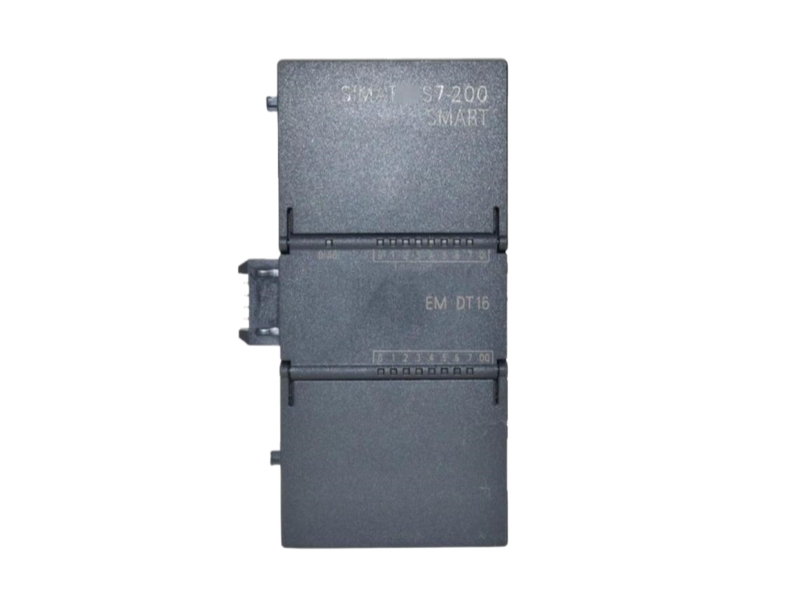

Siemens 6ES7288-2DT16-0AA0 is the SIMATIC S7-200 SMART EM DT16 mixed digital I/O expansion module. It combines eight 24 V DC sink/source inputs with eight sourcing transistor outputs rated at 0.75 A per channel for documented loads. This balanced configuration supports compact machine panels, maintenance replacement and control projects requiring both added feedback and fast DC switching in one module position. Before ordering, verify the complete article number, input commons, output-group supply, load current and inrush, terminal allocation, available expansion position and the corresponding STEP 7 Micro/WIN SMART project configuration.
| Field | Confirmed information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7288-2DT16-0AA0 |
| Product Type | SIMATIC S7-200 SMART EM DT16 Digital I/O Module |
| Series | SIMATIC S7-200 SMART |
| Model Configuration | 8 digital inputs / 8 transistor digital outputs |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm. |
| Firmware / Software Version | Contact us to confirm. |
| Country of Origin | GERMANY |
| Compatibility | Confirm the CPU, expansion layout, terminal plan and project configuration. |
| Availability / Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options confirmed with quotation. |
| Parameter | Official value |
|---|---|
| I/O configuration | 8 digital inputs and 8 digital outputs |
| Input type | 24 V DC sink/source; IEC 61131 Type 1 |
| Input groups | 2 |
| Input signal 1 | +15 to +30 V DC |
| Input signal 0 | Less than 5 V DC |
| Input delay | 200 µs maximum, 0 to 1 and 1 to 0 |
| Output type | 24 V DC sourcing transistor |
| Output groups | 2 |
| Rated output current | 0.75 A per channel |
| Output-group current | 3 A maximum within documented mounting limits |
| Output delay | 50 µs on; 200 µs off maximum |
| Isolation test | 500 V AC for 1 minute |
| Protection degree | IP20 |
| Dimensions (W × H × D) | 45 × 100 × 81 mm |
| Approximate weight | 179.7 g |
| Power consumption | 2.5 W |
| SM bus current | 145 mA |
| 01
Field input
|
02
EM DT16 processing
|
03
CPU program logic
|
04
Transistor output load
|
| Compact machine I/O expansion | Sensor feedback with DC actuator control | Production-line sequence control | Maintenance replacement in documented S7-200 SMART systems |
Compatibility notice: Confirm the complete suffix, supply and signal levels, output common, module position and original project documentation. Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
| 1 | Complete article number 6ES7288-2DT16-0AA0 |
| 2 | Required quantity and destination country |
| 3 | CPU model and available expansion position |
| 4 | Input signal type and output-load data |
| 5 | Existing module label and terminal drawing |
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Our process supports engineering and purchasing teams from exact model verification through protected international dispatch. Commercial terms are confirmed in writing before the order is placed.
| 01 | Model and suffix verification Compare the complete Siemens article number and product label. |
| 02 | Condition confirmation Supply as NEW and confirm available product photos when requested. |
| 03 | Technical compatibility review Review the S7-200 SMART CPU, expansion layout, mixed I/O type and project requirements. |
| 04 | Protective packaging Protect terminals and housing for the agreed international transport route. |
| 05 | Worldwide shipping Confirm carrier, freight cost, tracking and customs documentation. |
| 06 | Warranty and returns Provide a 1-year warranty under written terms and a documented return-authorization process. |
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only.
Send the complete part number, quantity, destination country and available product-label photos for verification.
