Sixteen 24 V DC inputs and sixteen fast sourcing transistor outputs support dense feedback and DC load control.

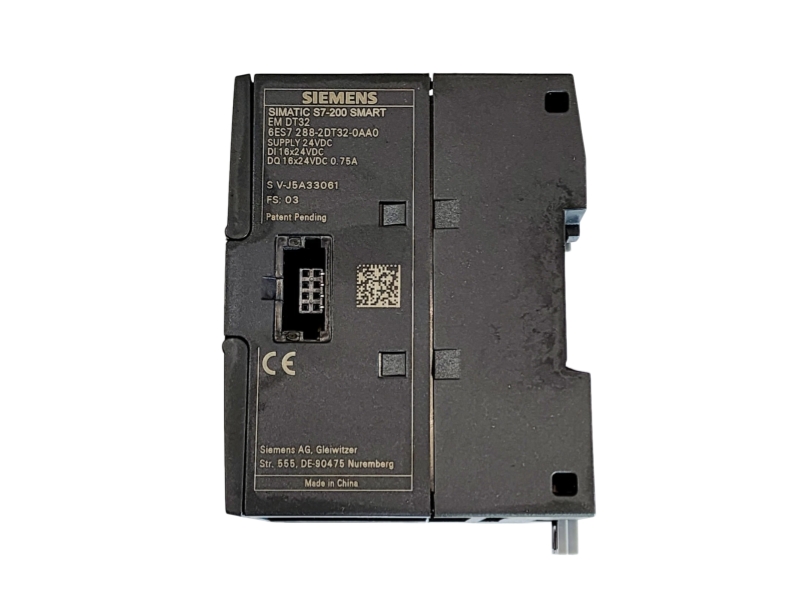

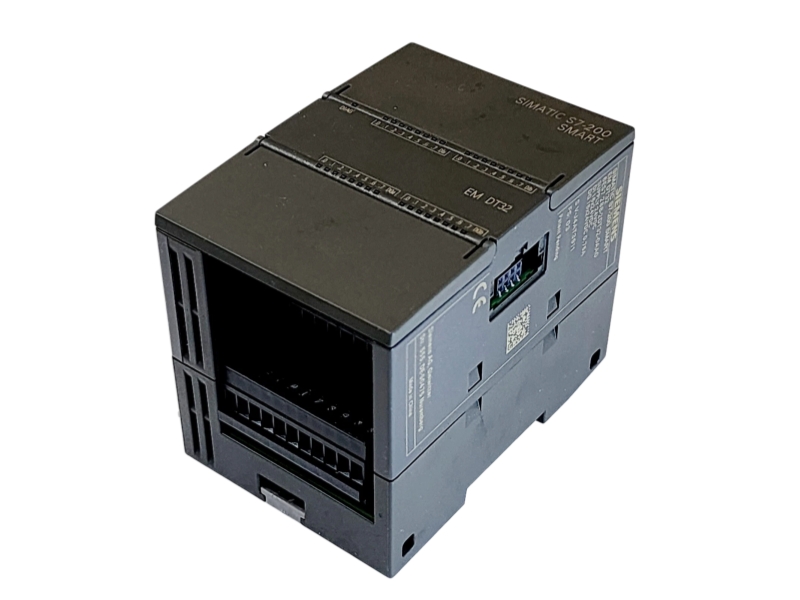

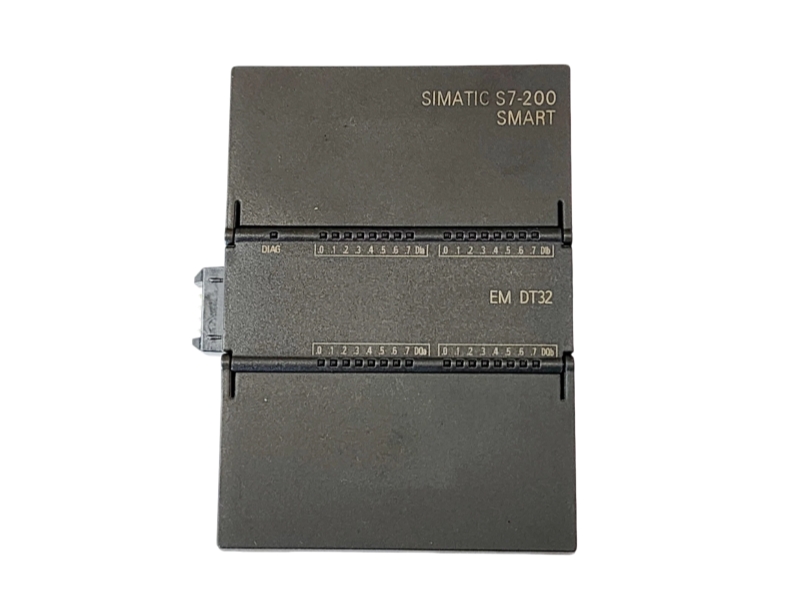

Siemens 6ES7288-2DT32-0AA0 is the SIMATIC S7-200 SMART EM DT32 mixed digital I/O expansion module. It combines sixteen 24 V DC sink/source inputs with sixteen 24 V DC sourcing transistor outputs rated at 0.75 A per channel for documented loads. The high point density suits machines that need additional sensor feedback and fast DC switching without using separate input and output modules. Typical procurement scenarios include panel expansion, maintenance replacement and retrofit projects. Before ordering, confirm the full article number, input commons, output-group supplies, load and inrush current, terminal allocation, expansion position and STEP 7 Micro/WIN SMART project configuration.
| Field | Confirmed information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7288-2DT32-0AA0 |
| Product Type | SIMATIC S7-200 SMART EM DT32 Digital I/O Module |
| Series | SIMATIC S7-200 SMART |
| Model Configuration | 16 digital inputs / 16 transistor digital outputs |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm. |
| Firmware / Software Version | Contact us to confirm. |
| Country of Origin | GERMANY |
| Compatibility | Confirm controller, expansion layout, terminal plan and project configuration. |
| Availability / Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options confirmed with quotation. |
| Parameter | Official value |
|---|---|
| I/O configuration | 16 digital inputs and 16 transistor outputs |
| Supply voltage | 24 V DC; 20.4 to 28.8 V DC |
| Input type | 24 V DC sink/source; IEC 61131 Type 1 |
| Input groups | 2 |
| Input signal 1 | +15 to +30 V DC |
| Input signal 0 | Less than 5 V DC |
| Input delay | 200 µs maximum, both edges |
| Output type | 24 V DC sourcing transistor |
| Output groups | 3 |
| Rated output current | 0.75 A per channel |
| Output delay | 50 µs on; 200 µs off maximum |
| Short-circuit protection | No |
| Isolation test | 500 V AC for 1 minute |
| Protection degree | IP20 |
| Dimensions (W × H × D) | 70 × 100 × 81 mm |
| Approximate weight | 257.3 g |
| Power consumption | 4.5 W |
| SM bus current | 185 mA |
| 01
Sensor feedback
|
02
EM DT32 input scan
|
03
CPU program logic
|
04
Fast 24 V DC loads
|
| Compact machine I/O expansion | Sensor feedback with DC actuator control | Production-line sequence control | Maintenance replacement in documented S7-200 SMART systems |
Plan the input commons and output-group L+/M supplies from the official terminal diagram. Calculate each load current and group total, provide external short-circuit protection, and apply appropriate suppression to inductive DC loads. Do not treat the transistor outputs as dry relay contacts.
Revision notice: Confirm the complete suffix, terminal assignment, supply voltage, load category, available mounting space and original equipment label before ordering.
Availability is confirmed for the requested quantity and destination during quotation review.
It provides sixteen digital inputs and sixteen sourcing transistor digital outputs.
No. The documented outputs are 24 V DC sourcing transistor channels; confirm the load type before ordering.
Provide the CPU article number, expansion layout, terminal plan and STEP 7 Micro/WIN SMART project configuration.
Confirm the L+/M supply, channel current, combined group current, load inrush and external protection.
Worldwide shipping options are quoted according to destination, packed weight and agreed trade terms.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Verify the full article number, suffix and requested quantity.
Review 16 digital inputs / 16 transistor digital outputs, terminal plan and system layout.
Confirm NEW condition and available-unit label details in writing.
Protect terminals and housing for the agreed international transport route.
Confirm carrier, freight, tracking and customs documentation.
Apply the confirmed one-year warranty and written return-authorization terms.
