A model-specific signal profile for mixed digital, analog and encoder interfaces in SIMATIC TDC systems.
Verify the complete suffix, rack assignment, SC62 cabling, interface modules, signal types, wiring and readable product label.

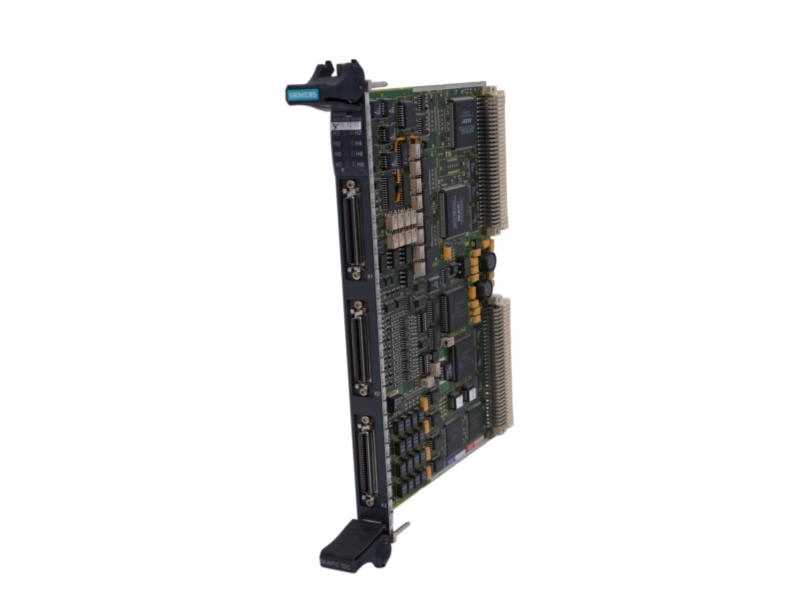

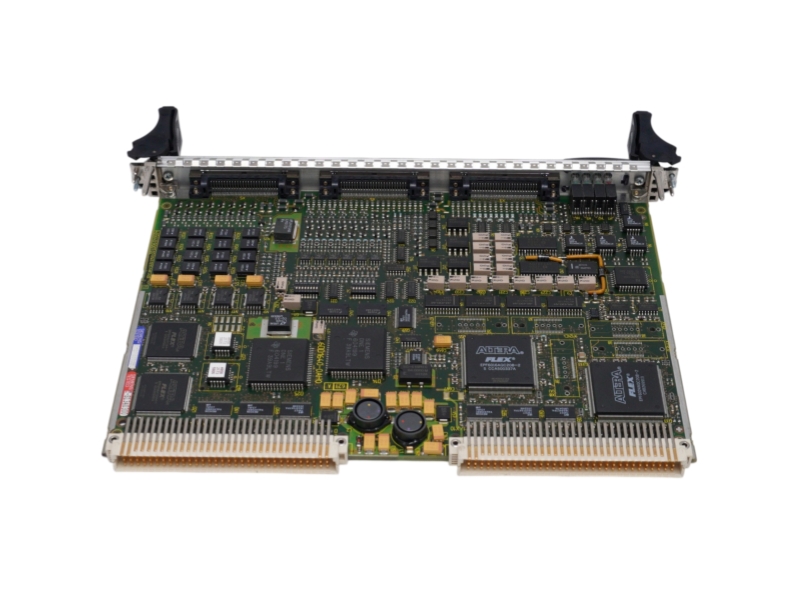

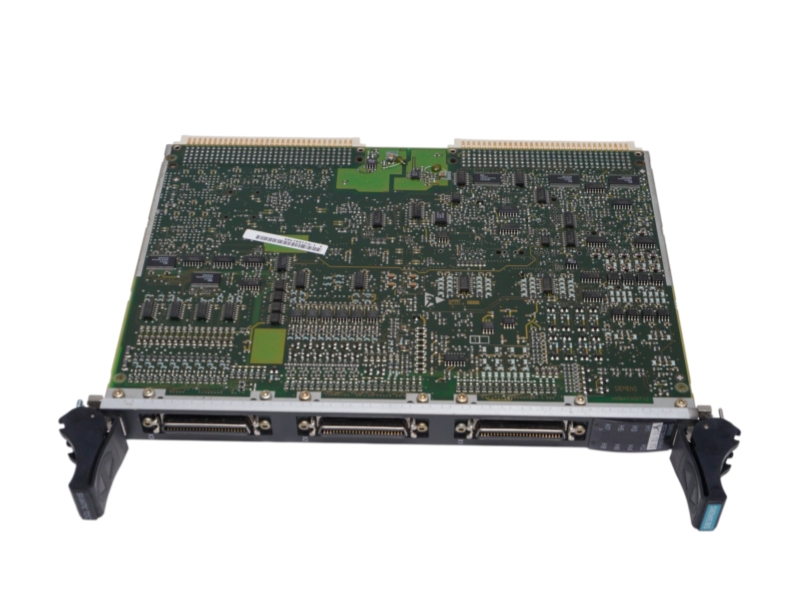

Siemens 6DD1640-0AH0 is the SIMATIC TDC SM500 signal module for mixed process and motion-related interfaces. Siemens hardware documentation assigns the exact order code to SM500 and lists binary inputs and outputs, analog inputs and outputs, integrating analog inputs, pulse-encoder inputs and absolute-encoder inputs. The module connects through the SC62 interface cable to as many as five suitable interface modules. Procurement teams should verify the complete suffix, rack and slot, connected interface modules, channel allocation, signal levels, encoder type, cable arrangement, grounding and original project documentation before approving a replacement.
| Commercial Item | Status |
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
| Manufacturer | Siemens |
| Complete Part Number | 6DD1640-0AH0 |
| Product Type | SIMATIC TDC SM500 signal module |
| Binary Outputs | 16 |
| Binary Inputs | 16 |
| Analog Inputs | 8 |
| Integrating Analog Inputs | 4 |
| Analog Outputs | 8 |
| Pulse Encoder Inputs | 4 |
| Absolute Encoder Inputs | 4 |
| Interface Cable | SC62 |
| Interface Module Capacity | Up to 5 compatible interface modules |
| Analog Output Range | -10 to +10 V |
| Analog Output Resolution | 12 bit |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
| SIMATIC TDC signal acquisition | Match each process signal, channel assignment and interface module. |
| Motion and encoder feedback | Confirm pulse or absolute encoder type, levels, wiring and project scaling. |
| Analog command output | Review voltage range, load, grounding and connected drive or actuator input. |
| Maintenance module replacement | Verify rack slot, SC62 cable, interface modules and original project documentation. |
The reviewed Siemens SIMATIC TDC hardware documentation confirms this complete order code and the SM500 signal-module architecture. Exact current Siemens PLM lifecycle wording for this complete suffix was not identified, so this page does not state Active, cancellation or discontinuation status.
It identifies the Siemens SIMATIC TDC SM500 mixed signal module.
Siemens lists binary I/O, analog inputs and outputs, integrating analog inputs, and pulse and absolute encoder inputs.
Siemens documents the SC62 interface cable for connection to as many as five suitable interface modules.
No lifecycle conclusion is stated because exact current Siemens PLM wording for this complete suffix was not identified in the reviewed official records.
Verify the suffix, rack slot, channel allocation, signal levels, encoder types, SC62 cabling, interface modules and label evidence.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A documented handoff from signal-module identity and channel review to protected shipment and transaction follow-up.
The complete suffix, label details and visible condition are checked against the inquiry.
Compare rack, SC62 cable, interface modules, analog and digital channels, encoder types and project scaling.
Protective packaging, shipping documents and tracking are coordinated after order review.
| Checkpoint | How It Is Handled |
| Model and suffix verification | Match 6DD1640-0AH0 against the inquiry, product label and packaging. |
| Condition confirmation | Review housing, interfaces, contacts, markings and visible condition. |
| Technical compatibility review | Compare rack, SC62 cable, interface modules, analog and digital channels, encoder types and project scaling. |
| Product and label photo confirmation | Request readable front, side, interface, nameplate and packaging photographs. |
| Protective packaging | Protect connectors, housing and electronic assemblies against impact, moisture and contamination. |
| Worldwide shipping | Coordinate available options after destination, quantity and documentation scope are reviewed. |
| Shipment tracking | Provide tracking information after carrier acceptance. |
| Customs documentation | Prepare transaction documents for the confirmed destination and shipment. |
| Written warranty terms | Provide written terms aligned with the confirmed transaction. |
| Return authorization process | Require return authorization before goods are sent back. |
| After-sales response | Use order records, shipment data, technical evidence and photographs to coordinate follow-up. |
Check whether the supplier preserves the complete part number, requests readable label evidence, separates commercial statements from manufacturer data and supplies written transaction terms.
Risk signals include shortened order codes, parameters copied from another suffix, unsupported interchangeability claims, unclear condition statements and reluctance to provide product or packaging evidence.
Align the exact product identity, technical compatibility, inspection scope, packaging, shipping documents, written warranty and return authorization process.
