High-availability temperature acquisition for thermocouple and RTD process measurements.

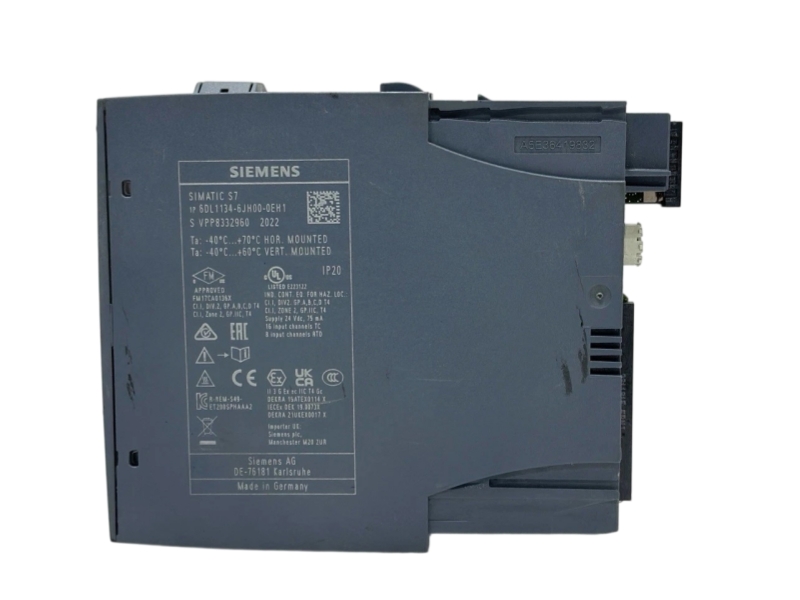

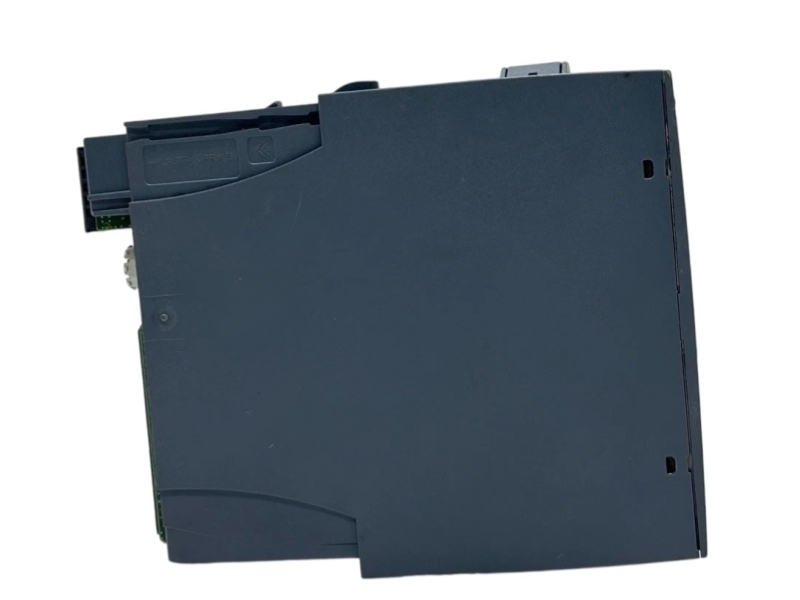

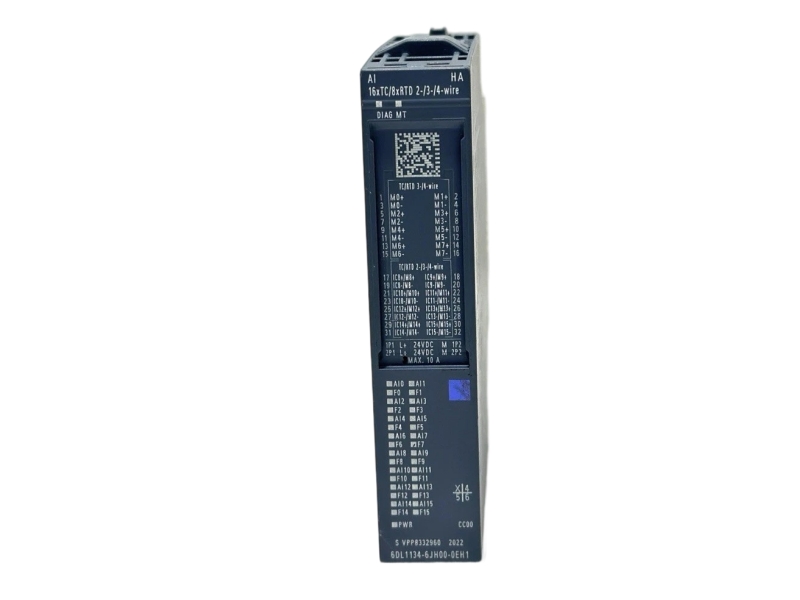

Siemens 6DL1134-6JH00-0EH1 is a SIMATIC ET 200SP HA analog input module for temperature and resistance measurement. The official equipment manual identifies 16 thermocouple inputs or eight RTD inputs with two-, three- or four-wire connection, firmware V1.1 and support for terminal blocks H1 and M1. Redundant operation is available with terminal block M1, while SPPA-T3000 integration is documented from version V8.0. The module uses a 24 V DC supply and provides channel diagnostics. Before procurement, verify the complete suffix, terminal block, sensor type, wiring method, measuring range, redundancy architecture, engineering project and readable product-label evidence.
Confirm the full order code, firmware, H1 or M1 terminal block and configured sensor channels.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6DL1134-6JH00-0EH1 |
| Product Type | SIMATIC ET 200SP HA AI 16xTC/8xRTD 2-/3-/4-wire HA analog input module |
| Firmware Version | V1.1; firmware update possible |
| Usable Terminal Blocks | Type H1 and M1 |
| Module Color Code | CC00 |
| I&M Data | I&M0 to I&M3 |
| Engineering Integration | SPPA-T3000 V8.0 or later |
| Redundancy Capability | Yes, with terminal block type M1 |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2 V DC to 28.8 V DC; reverse-polarity protection |
| Maximum Current Consumption | 100 mA |
| Address Space | 64 bytes plus 2 bytes for quality information |
| Analog Input Capacity | 16 thermocouple or voltage inputs; 8 resistance or RTD inputs |
| Temperature Units | Configurable in °C, °F or K |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
|---|---|
| Thermocouple temperature monitoring | Configure the documented thermocouple type, measuring range, compensation and channel diagnostics. |
| RTD and resistance measurement | Verify sensor type, two-, three- or four-wire connection and terminal assignment. |
| Redundant process I/O | Use terminal block type M1 and review the complete ET 200SP HA redundancy architecture. |
| Maintenance replacement | Match the complete suffix, firmware, terminal block, channel parameters and SPPA-T3000 project. |
The reviewed Siemens equipment documentation confirms the complete order number and technical configuration. Exact current lifecycle wording for this complete suffix was not identified, so this page does not state an Active, cancellation or discontinuation status.
It identifies the Siemens SIMATIC ET 200SP HA AI 16xTC/8xRTD 2-/3-/4-wire analog input module.
The official configuration supports 16 thermocouple inputs or eight RTD and resistance inputs.
Siemens documents terminal block types H1 and M1; redundancy is supported with type M1.
Verify the suffix, firmware, terminal block, sensor type, wiring method, measuring range, engineering project and redundancy design.
No lifecycle conclusion is stated because exact current lifecycle wording for this complete suffix was not identified in the reviewed Siemens records.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Documented verification from complete suffix review through packaging, shipment and after-sales coordination.
| Checkpoint | How It Is Handled |
|---|---|
| Model and suffix verification | Match 6DL1134-6JH00-0EH1 against the inquiry, module label and packaging. |
| Condition confirmation | Review housing, keying, contacts, markings and visible condition. |
| Technical compatibility review | Compare firmware, terminal block, sensor type, channel wiring, redundancy and project parameters. |
| Product and label photo confirmation | Request readable front, side, terminal, nameplate and packaging photographs. |
| Protective packaging | Protect module contacts, housing and keying features against impact, moisture and contamination. |
| Worldwide shipping | Coordinate available options after destination, quantity and documentation scope are reviewed. |
| Shipment tracking | Provide tracking information after carrier acceptance. |
| Customs documentation | Prepare transaction documents for the confirmed destination and shipment. |
| Written warranty terms | Provide written terms aligned with the confirmed transaction. |
| Return authorization process | Require return authorization before goods are sent back. |
| After-sales response | Use order records, shipment data, technical evidence and photographs to coordinate follow-up. |
Check whether the supplier preserves the complete part number, requests label evidence, separates commercial statements from manufacturer data and provides written transaction terms.
Risk signals include shortened order codes, copied parameters from another suffix, unsupported interchangeability claims, unclear condition descriptions and missing inspection photographs.
Provide the complete suffix, firmware, terminal-block type, TC or RTD details, wiring method, measuring ranges, redundancy design, project data and readable labels.
