1756-IF8 Functional Description

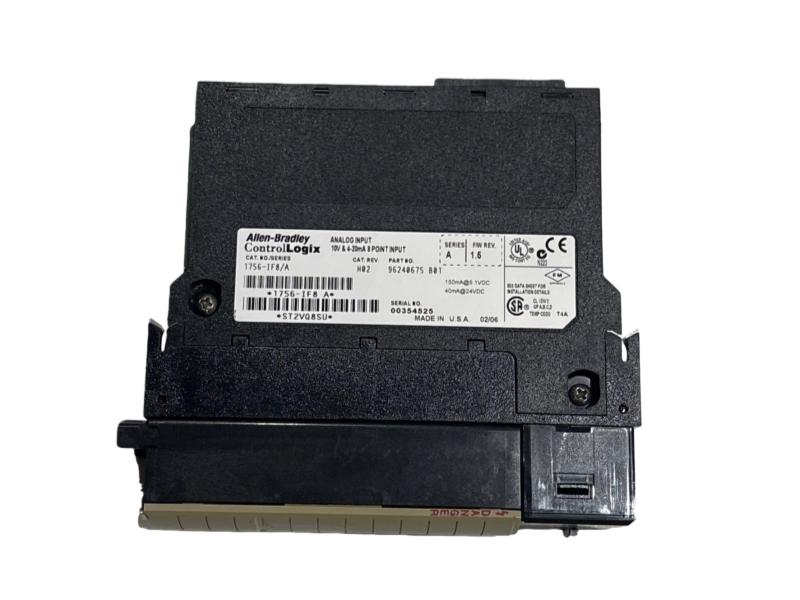

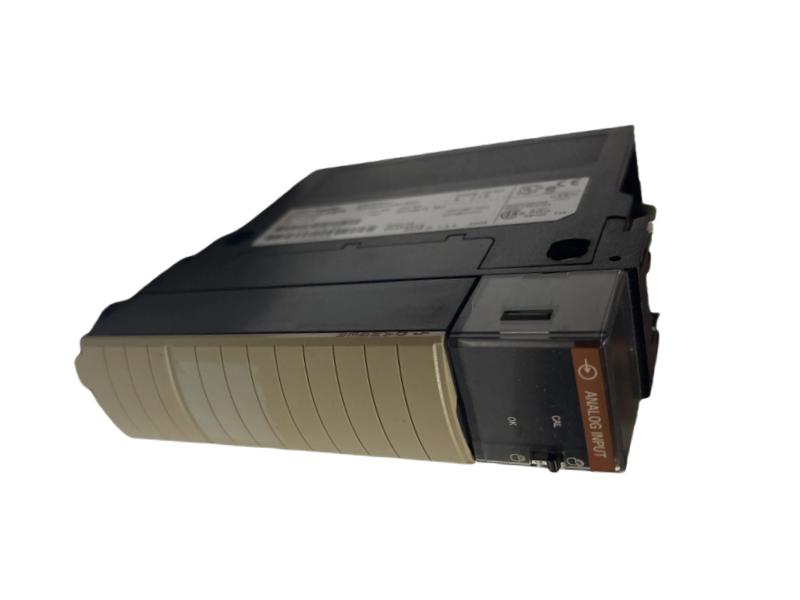

The 1756-IF8 I/O module Allen-Bradley is an 8-channel analog input module designed for integration into the ControlLogix automation platform. This module serves as a critical interface between field instruments and the controller, converting continuous analog signals from sensors into digital values that the processor can utilize for precise monitoring and control. It operates on a 24V DC power supply and requires configuration by an owner-controller to define its operational parameters within the system.

A key characteristic of the ControlLogix 8 Point A/I Module Allen-Bradley 1756-IF8 is its versatile input capability, accepting both voltage and current signals commonly used in process applications. The module's high-resolution signal conversion ensures accurate measurement of process variables such as pressure, temperature, and flow rates. This precision makes it particularly valuable in applications where exact monitoring is essential for maintaining product quality and process efficiency.

The design of the ALLEN BRADLEY 1756-IF8 Analog Input ControlLogix PLC Module leverages the ControlLogix Producer/Consumer technology, enabling shared access to input data across multiple controllers within the system. This architecture enhances system integration flexibility and simplifies data exchange between different control applications. The module mounts directly into a ControlLogix chassis and requires a separate removable terminal block for field wiring connections.

Installation and maintenance of the 1756-IF8 Anlog I/O Modules AB are streamlined through its modular design. The module continuously communicates with its owner-controller, ensuring reliable operation and immediate fault detection. The proven reliability and precision of the 1756 Series I/O module 1756-IF8 ROCKWELL make it an essential component for complex process control applications across various industries, from discrete manufacturing to continuous process operations.
